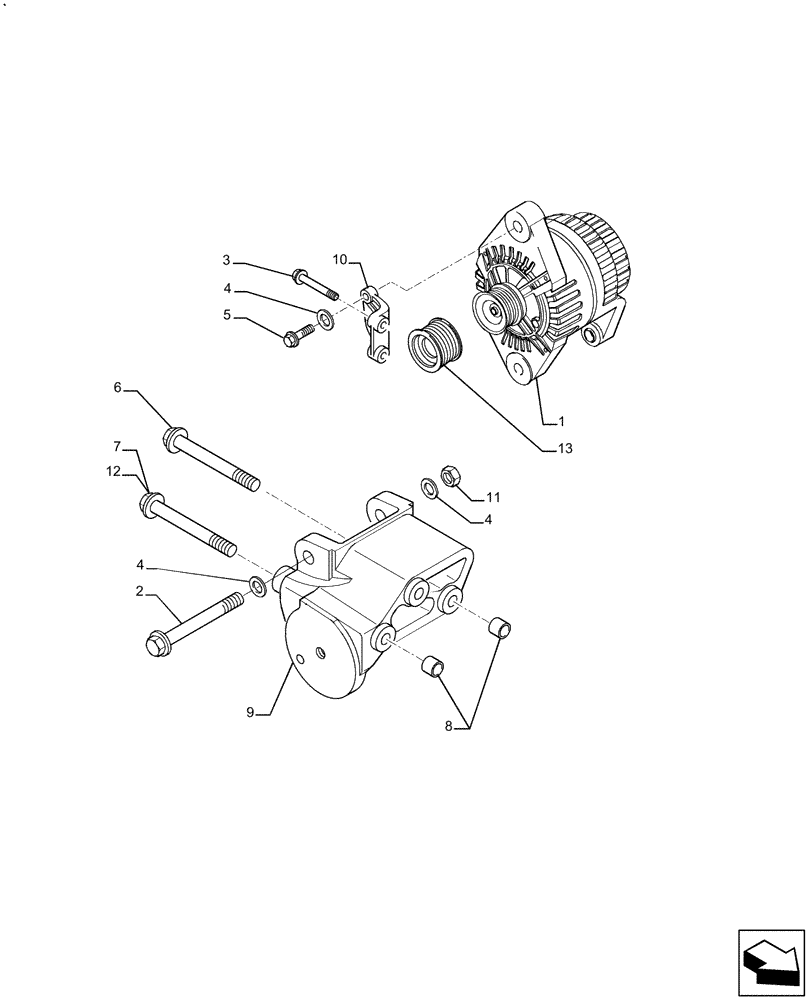

Запчасти Case IH F2CFE613E B043 (55.301.AB) - ALTERNATOR MOUNTING (55) - ELECTRICAL SYSTEMS

1

NS

NOT SERVICED

Alternator

1шт.

2

397393

BOLT,M12 x 1.75 x 167.68mm OAL, Cl 8.8

1шт.

3

16593425

BOLT,M12 x 100mm

2шт.

4

140046

BELLEVILLE WASHER,M12 Bolt Size x 27mm OD x 1.8mm Thk

3шт.

5

280853

BOLT,1/2"-13 x 1.563" OAL, Cl 8, Full Thd

1шт.

6

16693324

BOLT,Flng, M10 x 100mm

2шт.

7

16599225

SCREW,M10 x 140mm

1шт.

8

98405462

DOWEL

2шт.

9

504354483

SUPPORT

1шт.

10

504354482

SUPPORT

1шт.

11

9706685

NUT,M12 x 1.75, Cl 8

1шт.

12

16599025

SCREW,Hex, M10 x 120mm, Cl 8.8

1шт.

13

NS

NOT SERVICED

Pulley

1шт.
