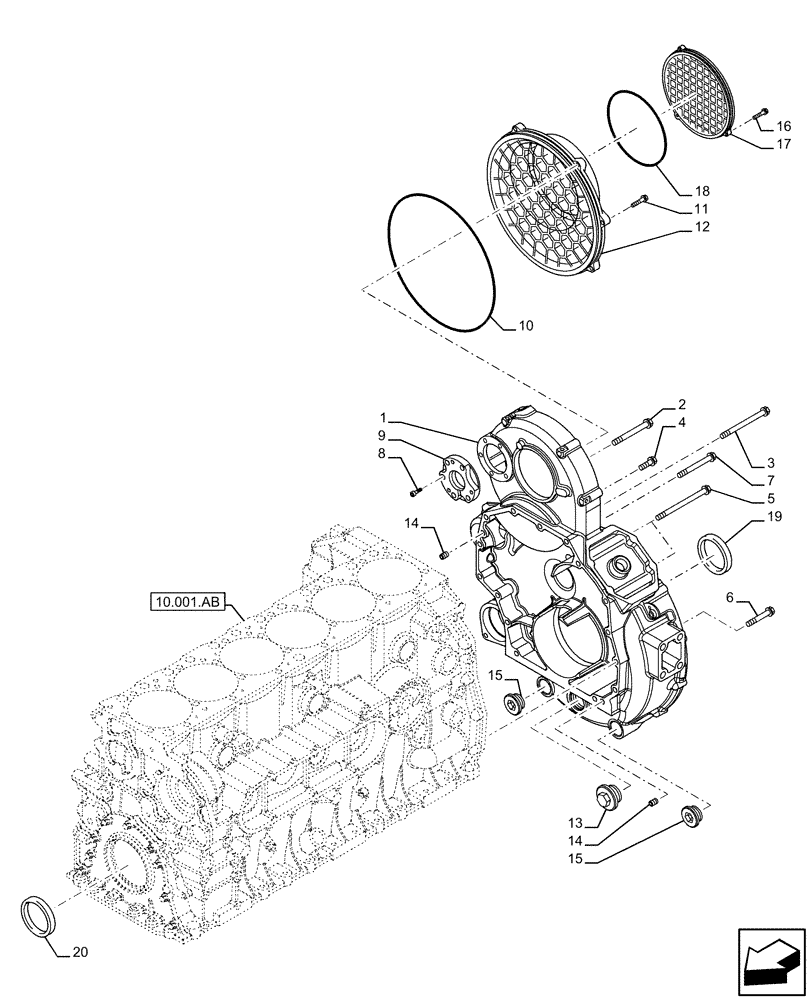

Запчасти Case IH F2CFE613E B043 (10.102.AK) - CRANKCASE, COVER (10) - ENGINE

1

5801597960

HOUSING

Crankcase

1шт.

2

16593625

BOLT,M12 x 1.75 x 120mm

1шт.

3

16599424

SCREW,M10 x 180mm

1шт.

4

16587325

SCREW,Hex, M10 x 35mm

3шт.

5

99475978

SCREW

M12 x 1.75mm

2шт.

6

16678935

SCREW

M12 x 80mm

7шт.

7

16598925

SCREW,Hex, M10 x 110mm, Cl 8.8

1шт.

8

16707334

BOLT,M8 x 30mm, Cl 10.9

5шт.

9

504233003

FLANGE

Crankcase Cover

1шт.

10

17301181

O-RING

M5.33 x 329.6mm

1шт.

11

16673835

BOLT,Hex, M8 x 30mm

6шт.

12

504389253

COVER

Crankcase

1шт.

13

500392568

M52

PLUG

1шт.

14

500314968

DOWEL

12mm Dia

2шт.

15

17917240

PLUG

M42 x 2mm

2шт.

16

16585870

SCREW,Hex, M6 x 20mm

3шт.

17

504389254

COVER

Crankcase

1шт.

18

17287381

O-RING

M196.5 x 2.62mm

1шт.

19

504244493

SEAL

Crankcase Cover

1шт.

20

504042684

SHAFT SEAL

Crankcase Cover

1шт.
