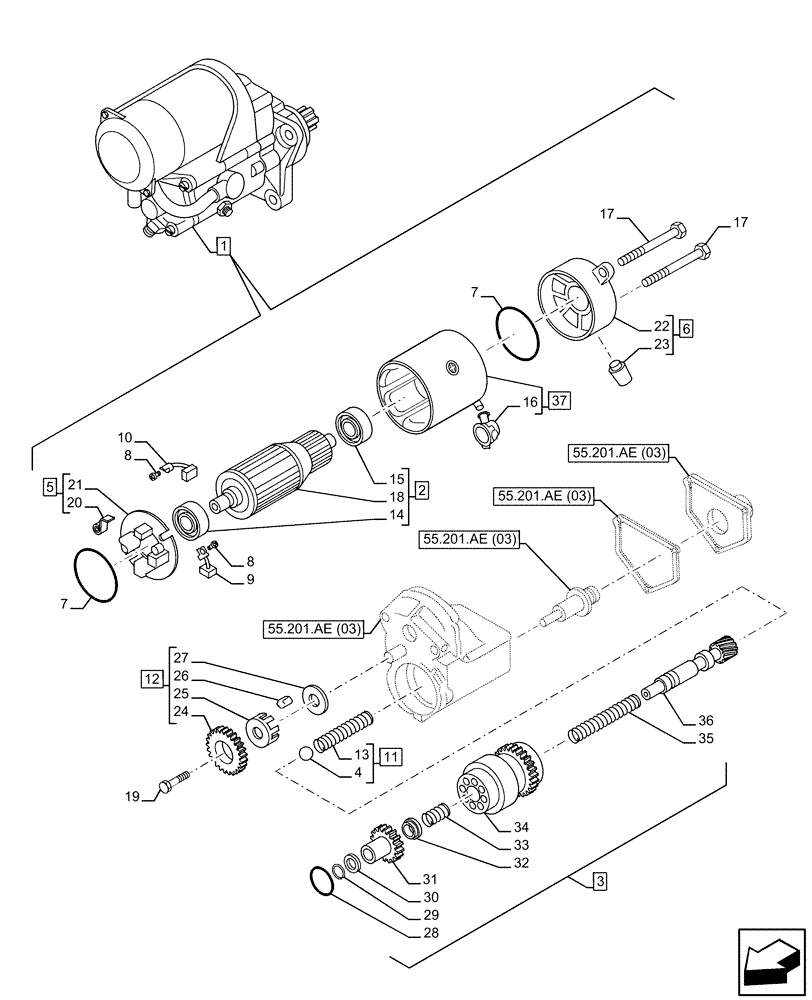

Запчасти Case IH F2CFE613C B041 (55.201.AE[02]) - STARTER MOTOR, COMPONENTS (55) - ELECTRICAL SYSTEMS

1

99432760

STARTER MOTOR

ASSY, Incl 3, 5, 6, 11, 12, 17, 19

1шт.

2

42471368

ARMATURE

ASSY, Incl 14, 15, 18

1шт.

3

42471369

KIT, STARTER MTR REP

ASSY, Incl 30 - 38

1шт.

4

NSS

NOT SOLD SEPARAT

Starter Motor Component, Incl in 11

1шт.

5

8093758

BRUSH SET

ASSY, Incl 20, 21

1шт.

6

NSS

NOT SOLD SEPARAT

Housing, Incl in 1

1шт.

7

NSS

NOT SOLD SEPARAT

O-Ring, Incl in 1

2шт.

8

NSS

NOT SOLD SEPARAT

Screw M5, Incl in 1

4шт.

9

NSS

NOT SOLD SEPARAT

Brush, Commutator, Incl in 1

2шт.

10

NSS

NOT SOLD SEPARAT

Brush, Commutator, Incl in 1

2шт.

11

NSS

NOT SOLD SEPARAT

Starter MTR Repair KTI, Incl in 1

1шт.

12

8093757

KIT, STARTER MTR REP

ASSY, Incl 26 - 29

1шт.

13

NSS

NOT SOLD SEPARAT

Starter Motor Component, Incl in 11

1шт.

14

42471382

KIT, STARTER MTR REP

Incl 14 - 15

1шт.

15

NS

NOT SERVICED

Bearing

1шт.

16

42471365

STATOR

1шт.

17

NSS

NOT SOLD SEPARAT

Screw, Incl in 1

3шт.

18

NSS

NOT SOLD SEPARAT

Armature, Incl in 2

1шт.

19

NSS

NOT SOLD SEPARAT

Screw, Incl in 1

1шт.

20

NSS

NOT SOLD SEPARAT

Starter Motor Component, Incl in 5

1шт.

21

NSS

NOT SOLD SEPARAT

Starter Motor Component, Incl in 5

1шт.

22

NSS

NOT SOLD SEPARAT

Starter Motor Component, Incl in 6

1шт.

23

NSS

NOT SOLD SEPARAT

Starter Motor Component, Incl in 6

1шт.

24

NSS

NOT SOLD SEPARAT

Starter Motor Component, Incl in 12

1шт.

25

NSS

NOT SOLD SEPARAT

Starter Motor Component, Incl in 12

1шт.

26

NSS

NOT SOLD SEPARAT

Starter Motor Component, Incl in 12

1шт.

27

NSS

NOT SOLD SEPARAT

Starter Motor Component, Incl in 12

1шт.

28

NSS

NOT SOLD SEPARAT

Starter Motor Component, Incl in 3

1шт.

29

NSS

NOT SOLD SEPARAT

Starter Motor Component, Incl in 3

1шт.

30

NSS

NOT SOLD SEPARAT

Starter Motor Component, Incl in 3

1шт.

31

NSS

NOT SOLD SEPARAT

Starter Motor Component, Incl in 3

1шт.

32

NSS

NOT SOLD SEPARAT

Starter Motor Component, Incl in 3

1шт.

33

NSS

NOT SOLD SEPARAT

Starter Motor Component, Incl in 3

1шт.

34

NSS

NOT SOLD SEPARAT

Starter Motor Component, Incl in 3

1шт.

35

NSS

NOT SOLD SEPARAT

Starter Motor Component, Incl in 3

1шт.

36

NSS

NOT SOLD SEPARAT

Starter Motor Component, Incl in 3

1шт.

37

42471367

COVER

1шт.
