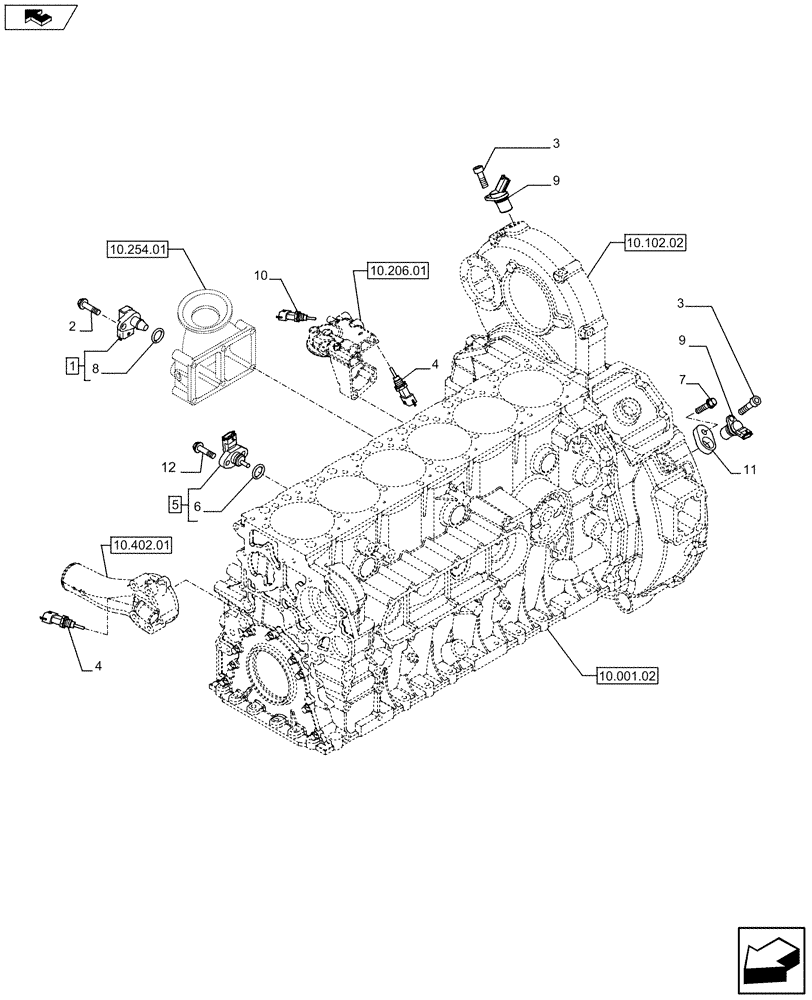

Запчасти Case IH F2CFE613C A011 (55.414.01[02]) - MOTOR SENSORS (504226073 - 504270473)

1

504073323

SENSOR

1шт.

2

2853118

BOLT,Hex, M6 x 1 x 18mm

M6 x 18

1шт.

3

16688925

BOLT,M6 x 10mm

M6 x 12

1шт.

4

82017881

SENSOR

2шт.

5

4890193

SENSOR

1шт.

6

4895477

O-RING,2.62mm Thk x 13.94mm ID

D = 13,94 mm

1шт.

7

84432127

HEX SOC SCREW,M6 x 25mm, Cl 12.9

1шт.

8

2852820

O-RING,0.07" Thk x 0.676" ID, 17, Cl 7, 75 Duro

1шт.

9

504096645

TRANSMITTER

2шт.

10

500346074

SENDER UNIT

1шт.

11

504163664

SPACER

1шт.

12

4899110

SCREW,Hex Flg, M6 x 1 x 20

2шт.
