(10.304.01) - PUMP, ENGINE OIL & RELATED PARTS (504133121)

Запчасти Case IH F2CFE613C A011 (10.304.01) - PUMP, ENGINE OIL & RELATED PARTS (504133121)

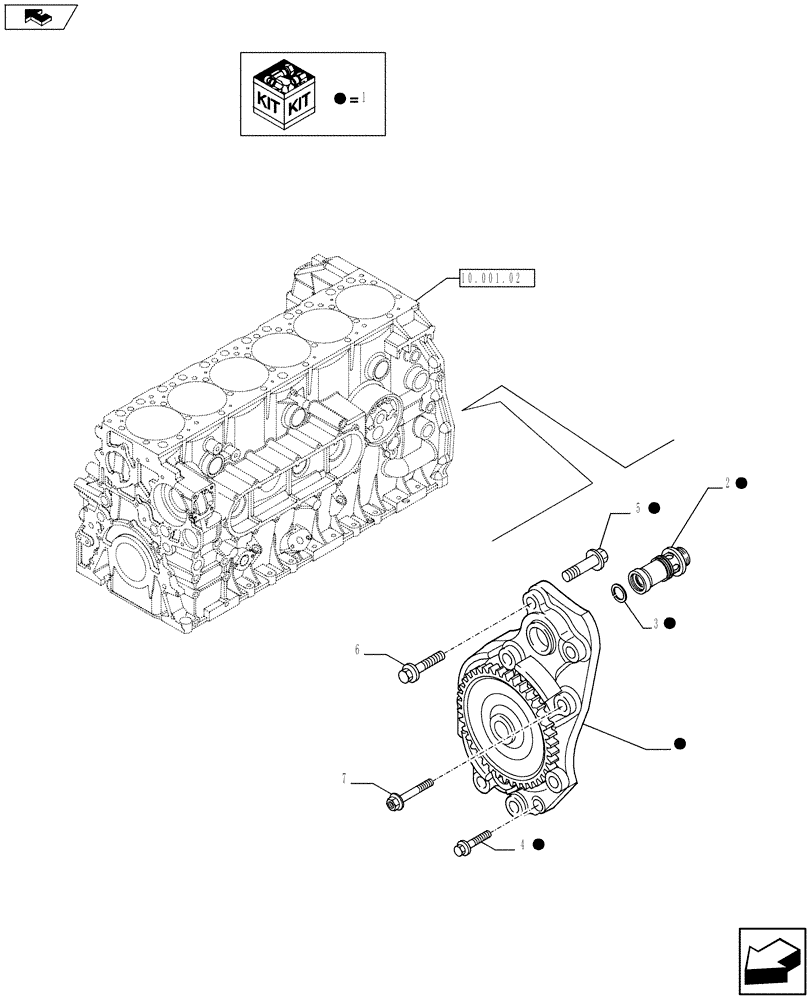

Схема запчастей Case IH F2CFE613C A011 - (10.304.01) - PUMP, ENGINE OIL & RELATED PARTS (504133121)
1
1
1
1
7
2
6
1
3
4
5
home
10.001.02
1
1
FIT
1:1
100%

№

Артикул

Название

Примечание

Количество

1

504131225

ENGINE OIL PUMP

1шт.

2

500304389

SAFETY VALVE

1шт.

3

14457681

O-RING,0.103" Thk x 0.862" ID, -118, Cl 7, 75 Duro

1шт.

4

16591725

SCREW,Hex, M6 x 40mm

M6 x 40

1шт.

5

16585725

SCREW,Hex, M6 x 16mm, Cl 8.8

M6 x 16

1шт.

6

500355363

SCREW

5шт.

7

504010370

BOLT

3шт.

Выбрано товаров: 7
