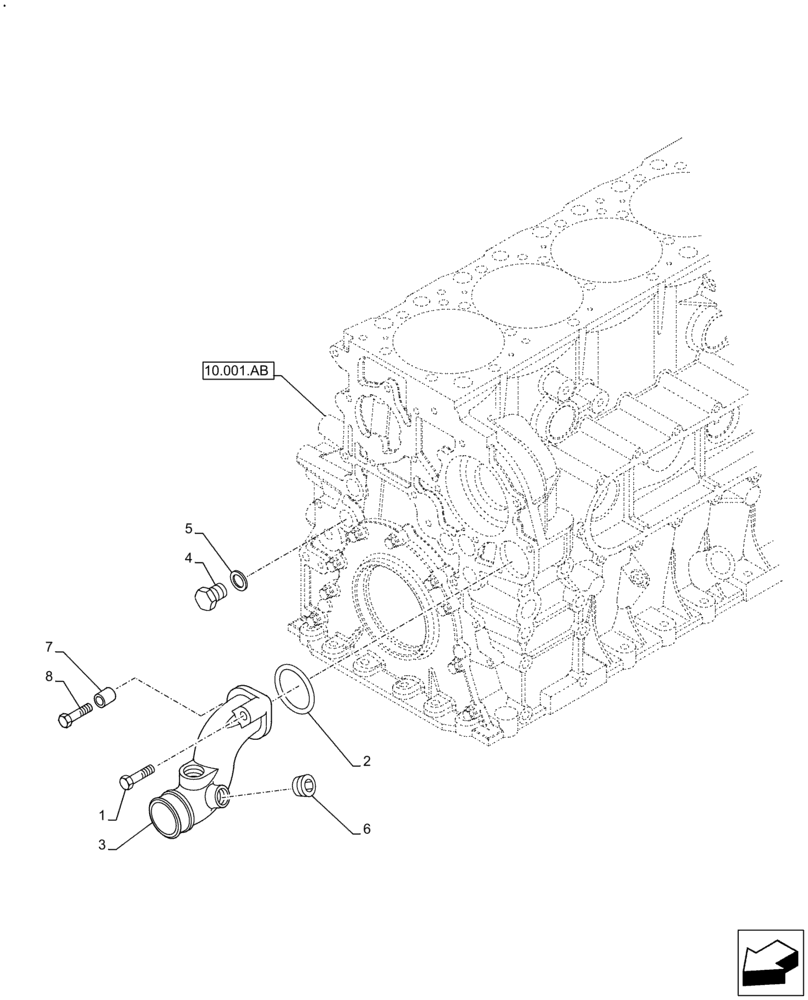

Запчасти Case IH F2CFE613A B006 (10.400.AQ) - WATER PUMP LINE (10) - ENGINE

1

16586925

BOLT,M8 x 50mm

2шт.

2

17290081

GASKET

1шт.

3

500359880

PIPE

Water Pump Line

1шт.

4

10305171

PLUG,M22 x 1.5 x 21

1шт.

5

87332142

SEAL,23.5mm ID x 30mm OD x 1.5mm Thk

1шт.

6

41221517

PLUG

Water Pump Line

1шт.

7

504253853

SPACER

1шт.

8

16592525

BOLT,M8 x 1.25 x 70mm

1шт.
