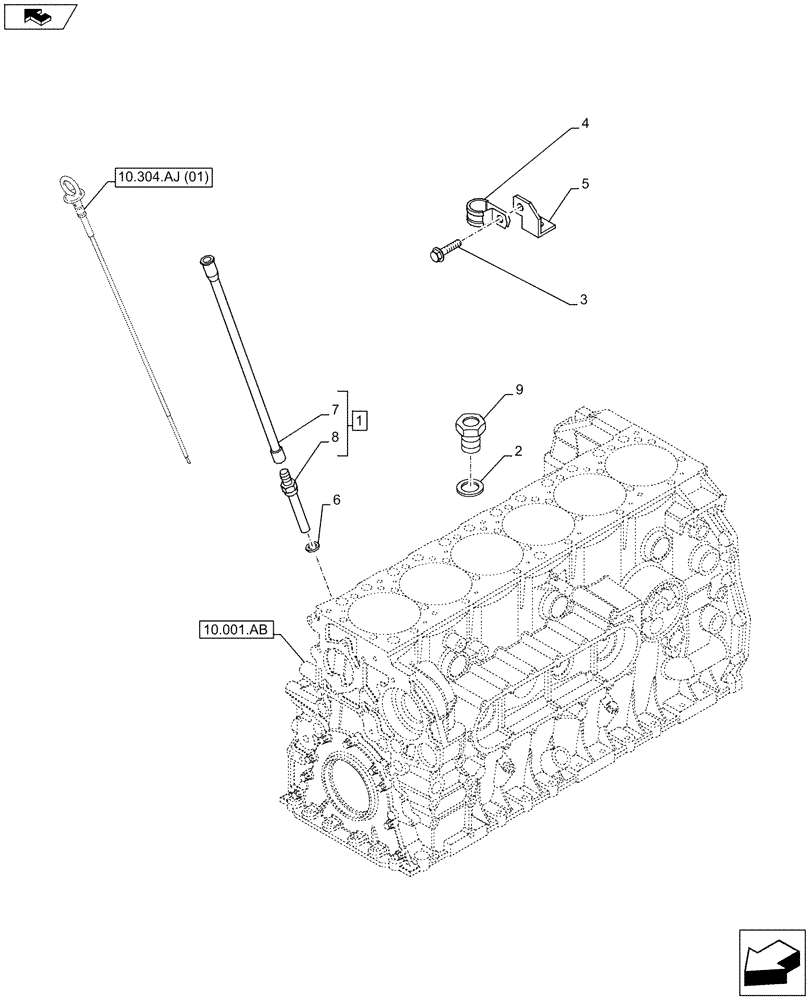

Запчасти Case IH F2CFE613A B004 (10.304.AJ[02]) - ENGINE OIL, DIPSTICK (10) - ENGINE

1

504323917

TUBE

ASSY; Incl 7; 8

1шт.

2

99489017

GASKET,9.9mm ID x 20mm OD x 2.5mm Thk

D=12 mm

1шт.

3

16586225

BOLT,M8 x 16mm

1шт.

4

17316699

CLAMP

D=14 mm

1шт.

5

4791406

BRACKET

1шт.

6

5167640

SEALING WASHER,14.09mm ID x 26.45mm OD x 1.5mm Thk

D=18 mm

1шт.

7

NSS

NOT SOLD SEPARAT

Tube; Incl in 1

1шт.

8

504323023

UNION

1шт.

9

11903211

PLUG,M12 x 1.25 x 12, Cl5.8

1шт.
