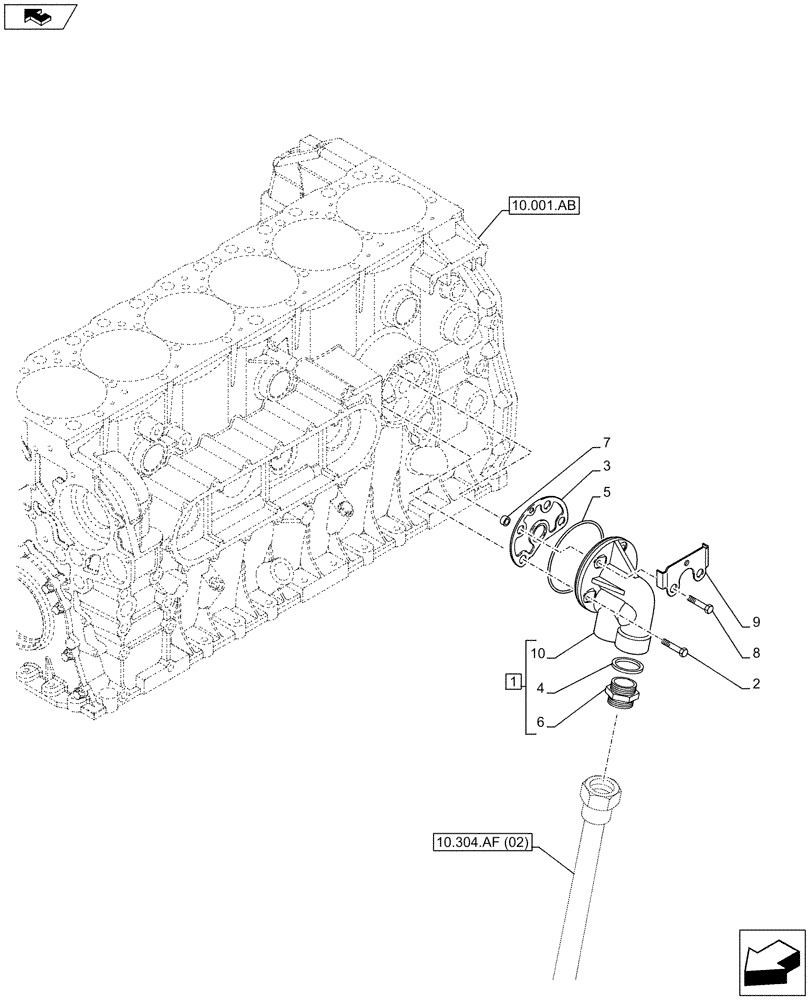

Запчасти Case IH F2CFE613A B004 (10.304.AF[01]) - ENGINE OIL FILTER, LUBRICATION LINE, LINE (10) - ENGINE

1

504190449

BRACKET

1шт.

2

16673835

BOLT,Hex, M8 x 30mm

M8 x 30

2шт.

3

504147366

GASKET

1шт.

4

99434480

SEAL

D= 30 x 40 mm

1шт.

5

17291881

GASKET

M113.89 x 3.53

1шт.

6

504037176

FITTING

M30 x 2

1шт.

7

17816414

SPACER

D= 8,5 x 18 mm SP= 20 mm

2шт.

8

16592224

SCREW,M8 x 55mm

M8 x 55

2шт.

9

504213767

RETAINER

1шт.

10

NSS

NOT SOLD SEPARAT

Bracket, Incl in 1

1шт.
