(10.304.01[02]) - OIL PUMP - ENGINE (504133121)

Запчасти Case IH F2CFE613A A017 (10.304.01[02]) - OIL PUMP - ENGINE (504133121) (10) - ENGINE

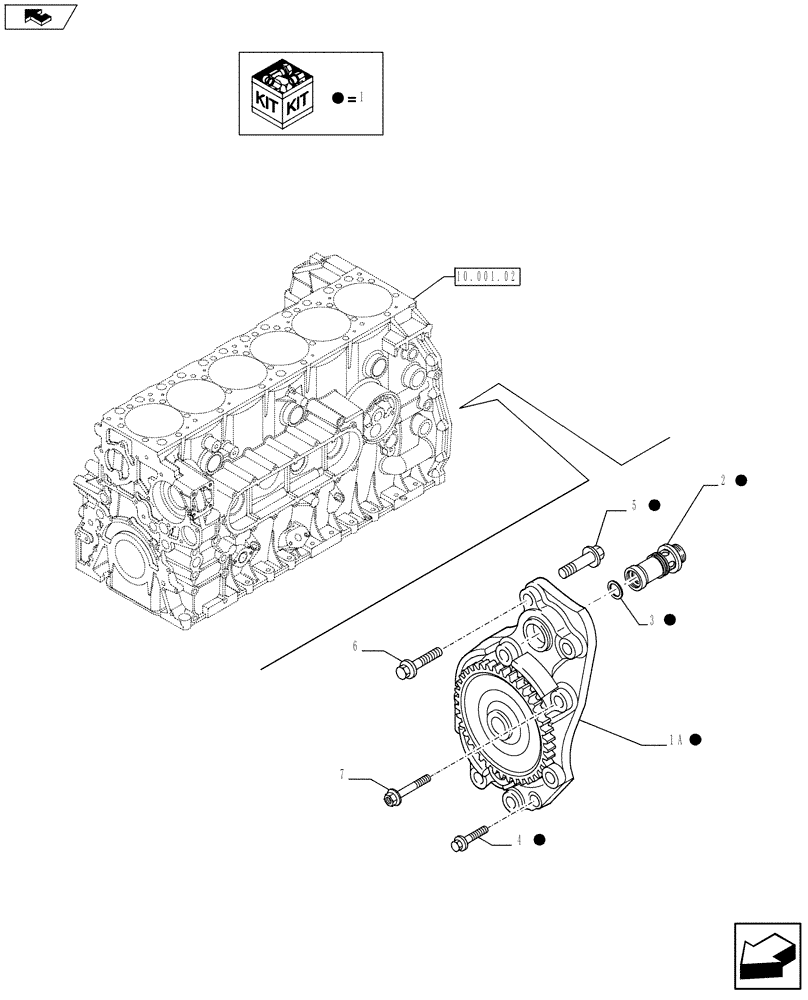

Схема запчастей Case IH F2CFE613A A017 - (10.304.01[02]) - OIL PUMP - ENGINE (504133121) (10) - ENGINE
home
10.001.02
1a
4
1
1
7
1
1
1
1
5
2
3
1
6
FIT
1:1
100%

№

Артикул

Название

Примечание

Количество

1

504131225

ENGINE OIL PUMP

Assy, Contains Ref. 1A, 2 - 5

1шт.

1

504131225R

REMAN-ENG OIL PUMP

Assy

1шт.

1

504131225C

CORE-ENGINE OIL PUMP

Return Number

1шт.

1a

NSS

NOT SOLD SEPARAT

1шт.

2

500304389

SAFETY VALVE

1шт.

3

14457681

O-RING,0.103" Thk x 0.862" ID, -118, Cl 7, 75 Duro

1шт.

4

16591725

SCREW,Hex, M6 x 40mm

M6 x 40

1шт.

5

18137825

BOLT,Hex, M6 x 16mm

M6 x 16

1шт.

6

500355363

SCREW

5шт.

7

504010370

BOLT

3шт.

Выбрано товаров: 10
