Запчасти Case IH F2CFE613A A016 (10.304.01[02]) - OIL PUMP - ENGINE (504133121) (10) - ENGINE

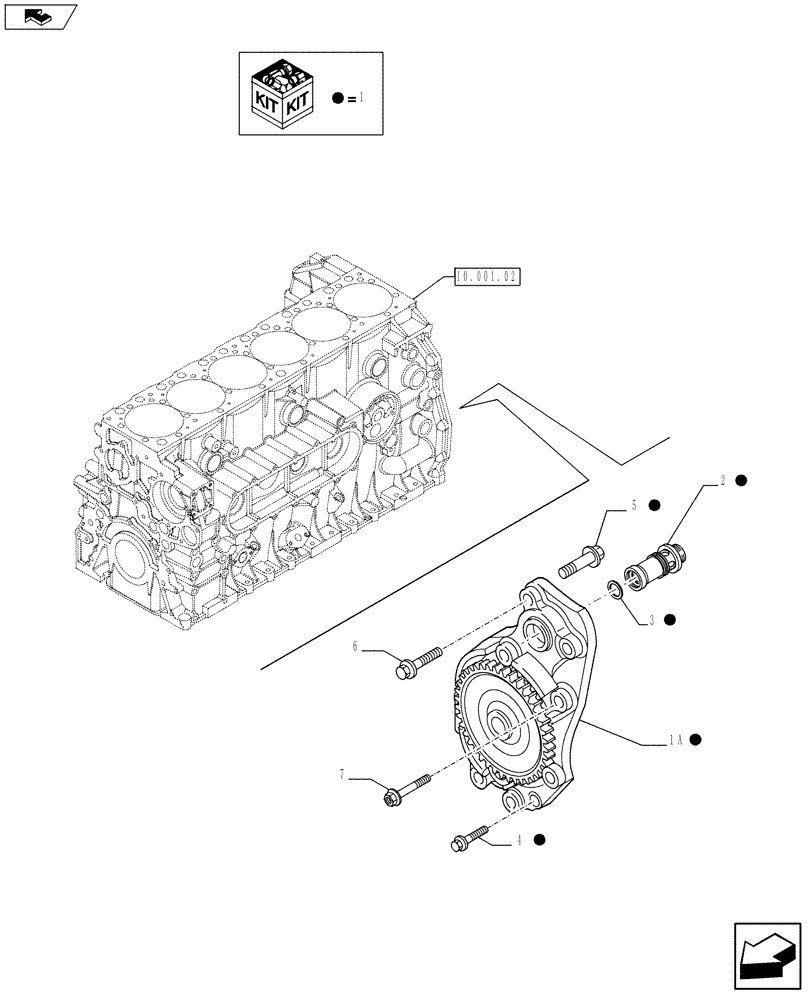

Схема запчастей Case IH F2CFE613A A016 - (10.304.01[02]) - OIL PUMP - ENGINE (504133121) (10) - ENGINE
10.001.02
home
2
5
1
1a
6
1
4
1
1
3
7
1
1
1

Артикул

Название

Примечание

Количество

1

504131225

ENGINE OIL PUMP

Assy, Contains Ref. 1A, 2 - 5

1шт.

1

504131225R

REMAN-ENG OIL PUMP

F2CFE613A*A016 ENGINE 5801454650 - 84148721, ASSY (8/13-), 7230 COMBINE - TIER 4, ASSY (3/12-)

1шт.

1

504131225C

CORE-ENGINE OIL PUMP

Return Number

1шт.

1

5801499861R

REMAN-ENG OIL PUMP

7230 COMBINE - TIER 4 (3/12-), F2CFE613A*A016 ENGINE 5801454650 - 84148721, Reman for New PN 504131225

1шт.

1

5801499861C

CORE-ENGINE OIL PUMP

Return Number

1шт.

1a

NSS

NOT SOLD SEPARAT

1шт.

2

500304389

SAFETY VALVE

1шт.

3

14457681

O-RING,0.103" Thk x 0.862" ID, -118, Cl 7, 75 Duro

1шт.

4

16591725

SCREW,Hex, M6 x 40mm

M6 x 40

1шт.

5

18137825

BOLT,Hex, M6 x 16mm

M6 x 16

1шт.

6

500355363

SCREW

5шт.

7

504010370

BOLT

3шт.

Выбрано товаров: 12
