(55.015.AA) - ENGINE, ELECTRONIC CONTROL UNIT

Запчасти Case IH F2CFA613C G001 (55.015.AA) - ENGINE, ELECTRONIC CONTROL UNIT (55) - ELECTRICAL SYSTEMS

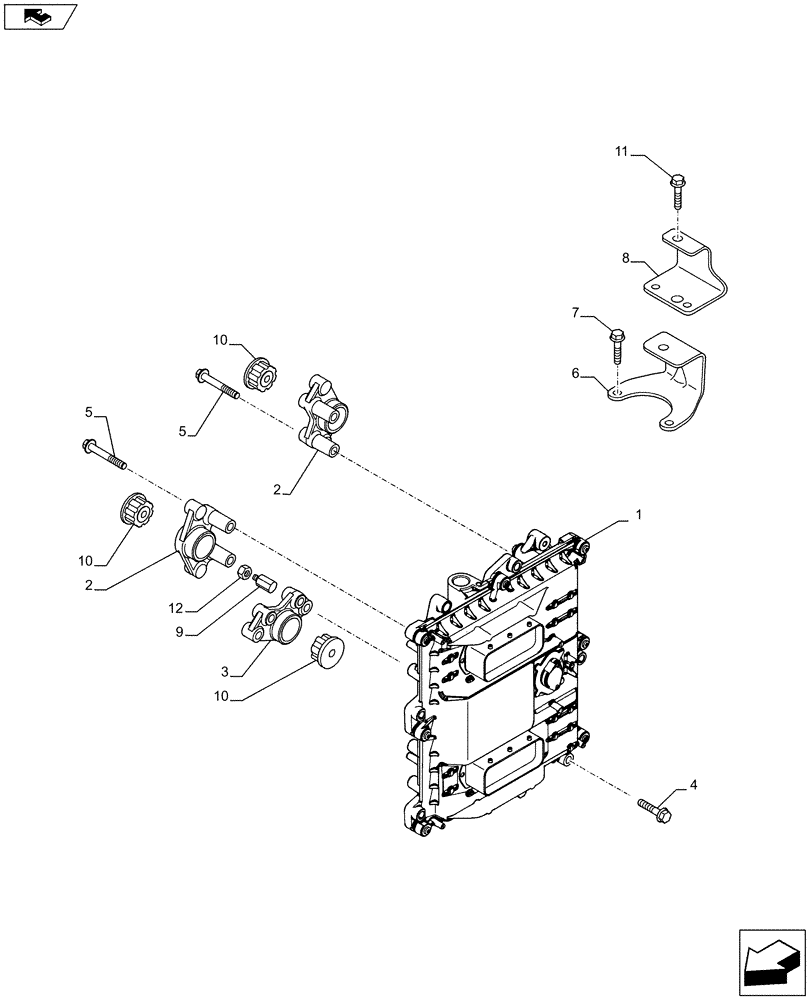

Схема запчастей Case IH F2CFA613C G001 - (55.015.AA) - ENGINE, ELECTRONIC CONTROL UNIT (55) - ELECTRICAL SYSTEMS
12
2
9
11
2
1
10
5
3
5
home
4
6
10
8
7
10
FIT
1:1
100%

№

Артикул

Название

Примечание

Количество

1

504388754

CONTROL UNIT

1шт.

2

5801624736

SUPPORT

SUPPORT

2шт.

3

5801564789

SUPPORT

SUPPORT

1шт.

4

2854083

BOLT,Flng, M6 x 1 x 30mm

M6x30 mm

2шт.

5

17935001

SELF-TAP SCREW,Hex Flng, M5.5 x 1.8 x 45mm

4шт.

6

5801643600

RETAINER

RETAINER

1шт.

7

2853118

BOLT,Hex, M6 x 1 x 18mm

M6x18 mm

2шт.

8

5801662800

RETAINER

RETAINER

1шт.

9

5801457718

SPACER

SPACING BAR

1шт.

9

5801457717

SPACER

SPACING BAR

2шт.

10

5801406998

SHOCK ABSORBER

RUBBER LUG

6шт.

11

17933601

SCREW

3шт.

12

17044735

NUT,Hex, M8

3шт.
