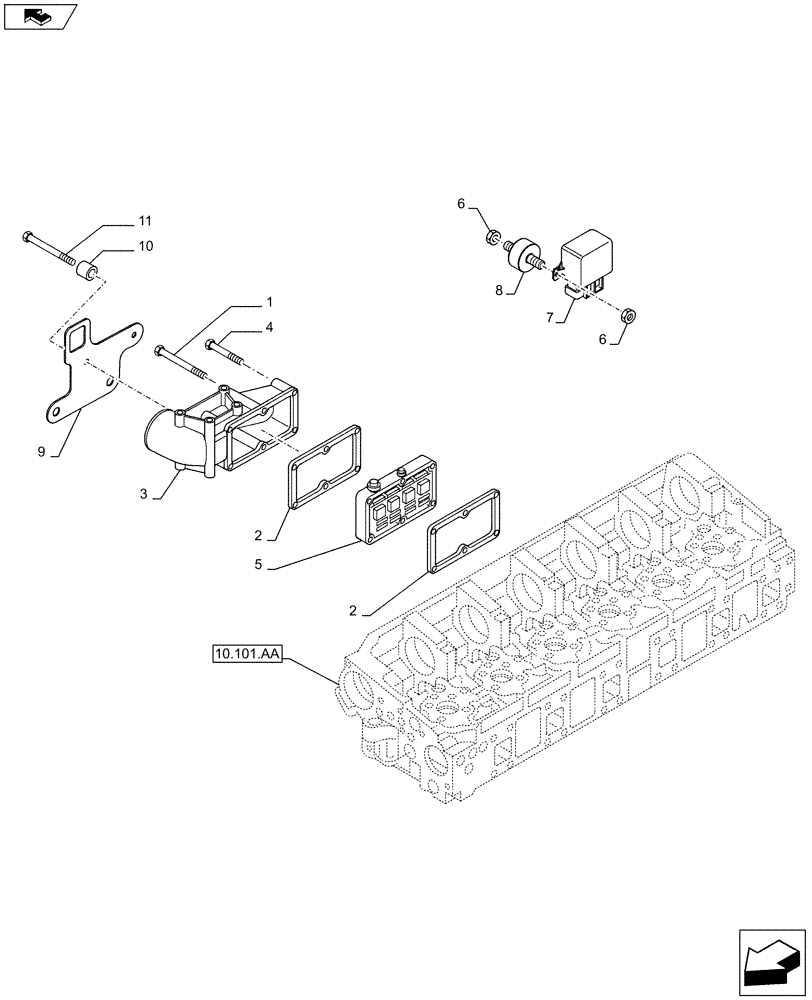

Запчасти Case IH F2CFA613C G001 (10.254.AM) - INLET MANIFOLD (10) - ENGINE

1

2852286

BOLT,Flng, M10 x 1.5 x 130mm

M10x130 mm

3шт.

2

504375264

GASKET,0.3mm Thk

2шт.

3

5801603834

MANIFOLD

AIR INTAKE TUBE

1шт.

4

16593125

BOLT,M10 x 100mm

M10x100 mm

1шт.

5

504154987

HEATER

1шт.

6

15896221

NUT,Hex, M6, 5.20mm High, Cl 10

M6x1

4шт.

7

86619908

RELAY,12V, 150A

1шт.

8

504090550

RUBBER

LUG

2шт.

9

5801764051

FASTENER

BRACKET

1шт.

10

504077078

SPACER

2шт.

11

16599325

SCREW,M10 x 150mm

M10x150 mm

2шт.
