(55.015.AC) - ENGINE, SENSOR

Запчасти Case IH F2CFA613A G001 (55.015.AC) - ENGINE, SENSOR (55) - ELECTRICAL SYSTEMS

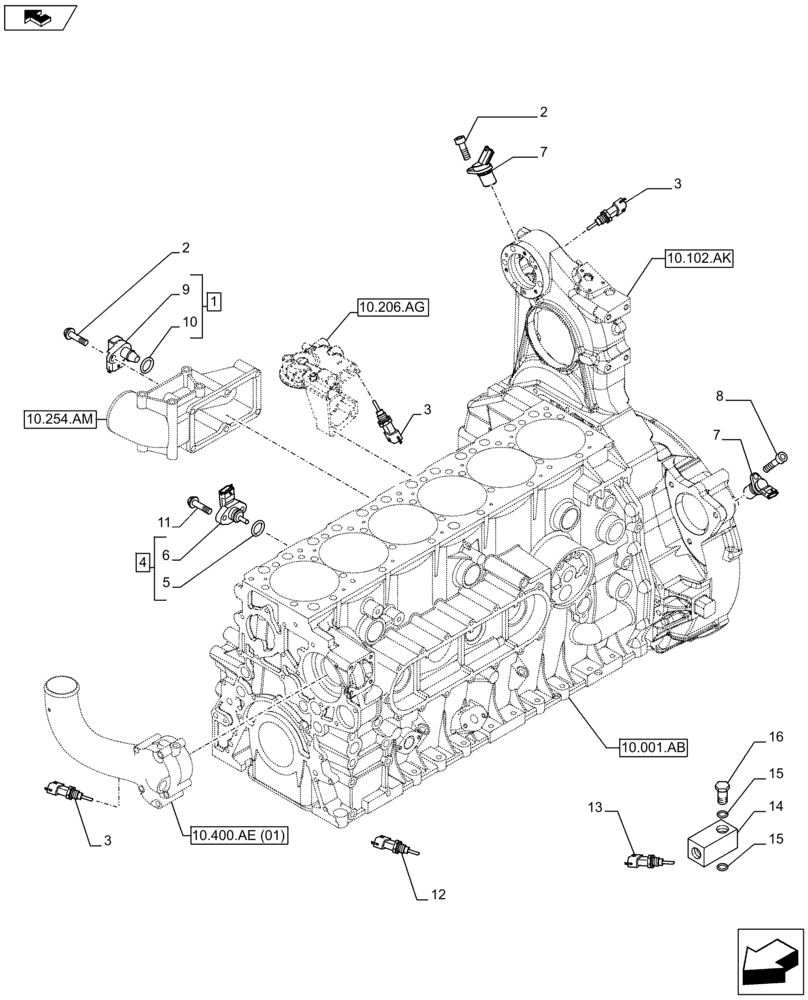

Схема запчастей Case IH F2CFA613A G001 - (55.015.AC) - ENGINE, SENSOR (55) - ELECTRICAL SYSTEMS
7
3
2
10.102.ak
7
2
home
16
11
8
10.001.ab
15
3
10.254.am
10.400.ae (01)
5
10.206.ag
4
6
10
1
12
9
14
3
15
13
FIT
1:1
100%

№

Артикул

Название

Примечание

Количество

1

504372225

SENSOR,Temperature / Pressure

Air pressure and temperature; ASSY; Incl 9; 10

1шт.

2

2853118

BOLT,Hex, M6 x 1 x 18mm

M6 x 18 mm

2шт.

3

82017881

SENSOR

Pressure and temperature

2шт.

4

504358206

Oil pressure and temperature; ASSY; Incl 5; 6

SWITCH,Pressure

1шт.

5

4895477

O-RING,2.62mm Thk x 13.94mm ID

D=13.94mm; SP=2.62 mm

1шт.

6

NSS

NOT SOLD SEPARAT

Sensor; Incl in 4

1шт.

7

504096645

TRANSMITTER

2шт.

8

16689024

SCREW,M16 x 12mm

M6x12 mm

1шт.

9

NSS

NOT SOLD SEPARAT

Sensor; Incl in 1

1шт.

10

42546555

O-RING

1шт.

11

16585870

SCREW,Hex, M6 x 20mm

2шт.

12

5801567639

SENSOR

SENSOR

1шт.

13

504364902

SENSOR

1шт.

14

5801494046

SUPPORT

SUPPORT

1шт.

15

99489017

GASKET,9.9mm ID x 20mm OD x 2.5mm Thk

2шт.

16

99469255

PLUG

1шт.
