(10.304.AF[02]) - ENGINE OIL FILTER, LINE

Запчасти Case IH F2CFA613A G001 (10.304.AF[02]) - ENGINE OIL FILTER, LINE (10) - ENGINE

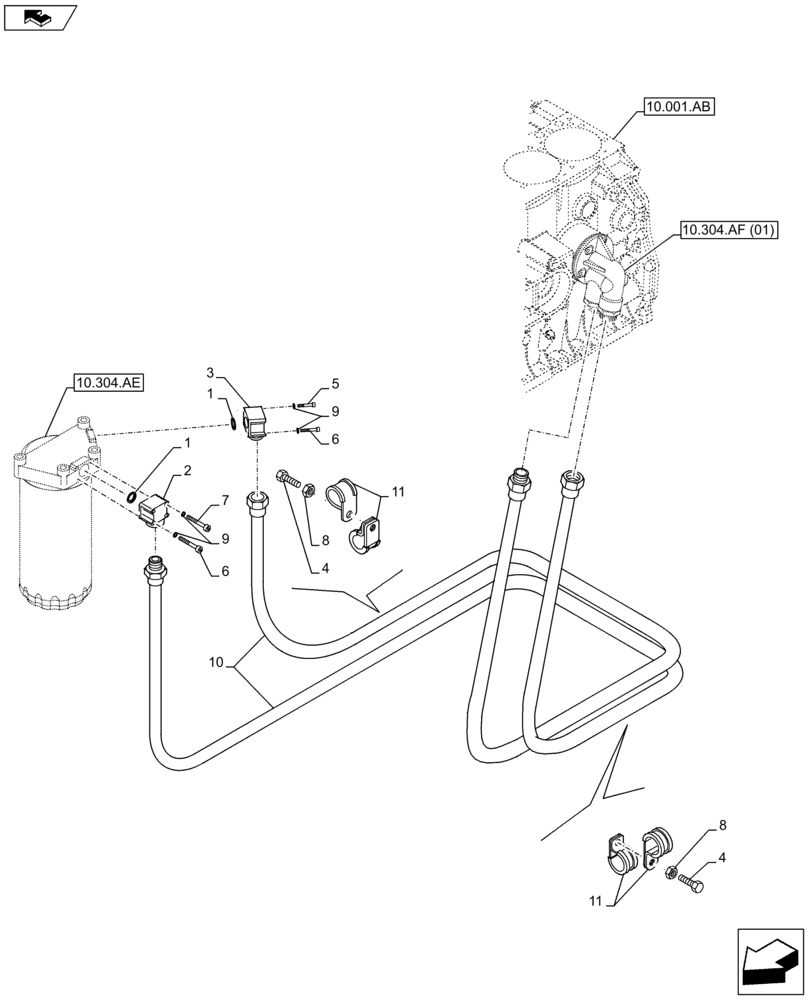

Схема запчастей Case IH F2CFA613A G001 - (10.304.AF[02]) - ENGINE OIL FILTER, LINE (10) - ENGINE
11
3
10
2
8
7
5
9
10.304.af (01)
4
1
10.001.ab
6
4
home
11
9
6
1
8
10.304.ae
FIT
1:1
100%

№

Артикул

Название

Примечание

Количество

1

2852978

O-RING,0.103" Thk x 0.924" ID, -119, Cl 7, 75 Duro

2шт.

2

504005572

ELBOW

1шт.

3

98481998

FITTING

1шт.

4

16675834

SCREW,M10 x 1.5 x 30mm

M10x30 mm

4шт.

5

16689724

SCREW,M6 x 45mm

2шт.

6

16689824

SCREW,M6 x 50mm

4шт.

7

16689924

SCREW

2шт.

8

2852389

FLANGE NUT

M8x1.25 mm

4шт.

9

11197774

BELLEVILLE WASHER,M6 Bolt Size x 12mm OD x 1.2mm Thk

8шт.

10

504218108

HYD TUBE

2шт.

11

17317390

CLAMP

6шт.
