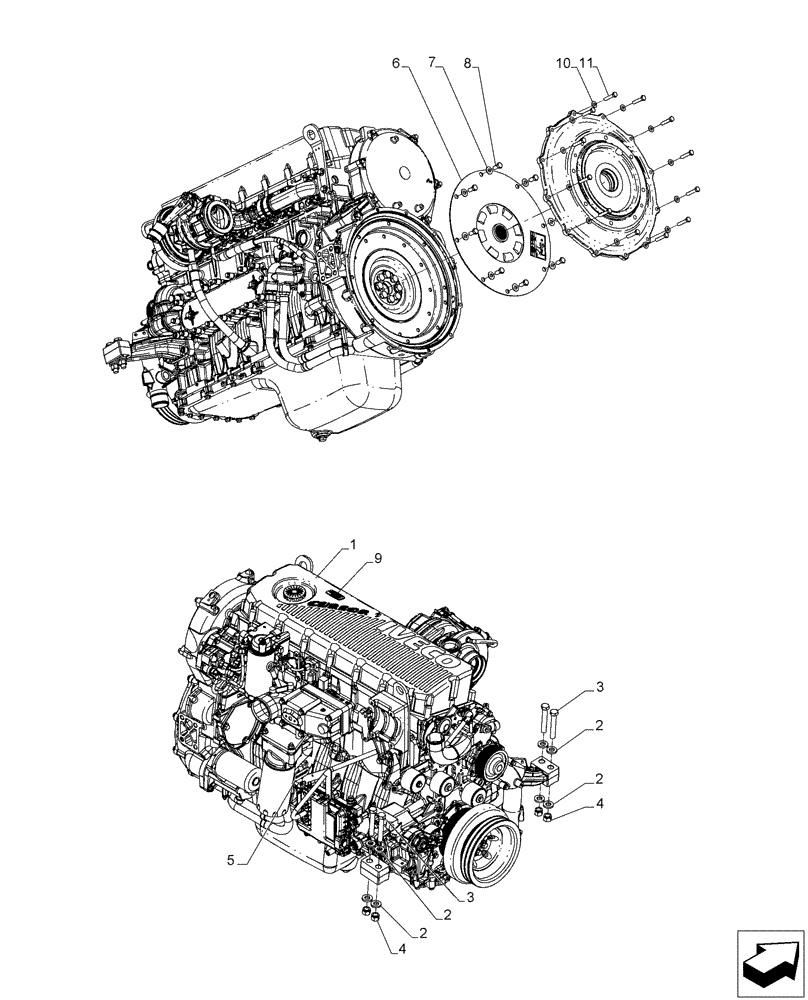

Запчасти Case IH F2CFA613A E001 (10.001.AD[01]) - COMPLETE ENGINE (10) - ENGINE

1

84193316

ENGINE,260kW, 6 Cylinders, W/ Turbocharger

Cursor 9

1шт.

2

86639326

WASHER,17.3mm ID x 34.5mm OD x 5mm Thk

8шт.

3

374889

BOLT,Hex, M16 x 100mm, Cl 8.8

4шт.

4

412066

NUT,M16 x 2.0, Cl 8

4шт.

5

87679098

DECAL,37mm x 70mm

2шт.

6

87536815

SPLINED COUPLING,466.67mm OD

1шт.

7

140046

BELLEVILLE WASHER,M12 Bolt Size x 27mm OD x 1.8mm Thk

8шт.

8

300388

BOLT,Hex, M12 x 1.75 x 25mm, Cl 8.8

8шт.

9

84373430

EMBLEM

1шт.

10

140045

BELLEVILLE WASHER,M10 Bolt Size x 22mm OD x 1.6mm Thk

12шт.

11

120069

BOLT,M10 x 1.5 x 56.58mm OAL, Cl 8.8

12шт.
