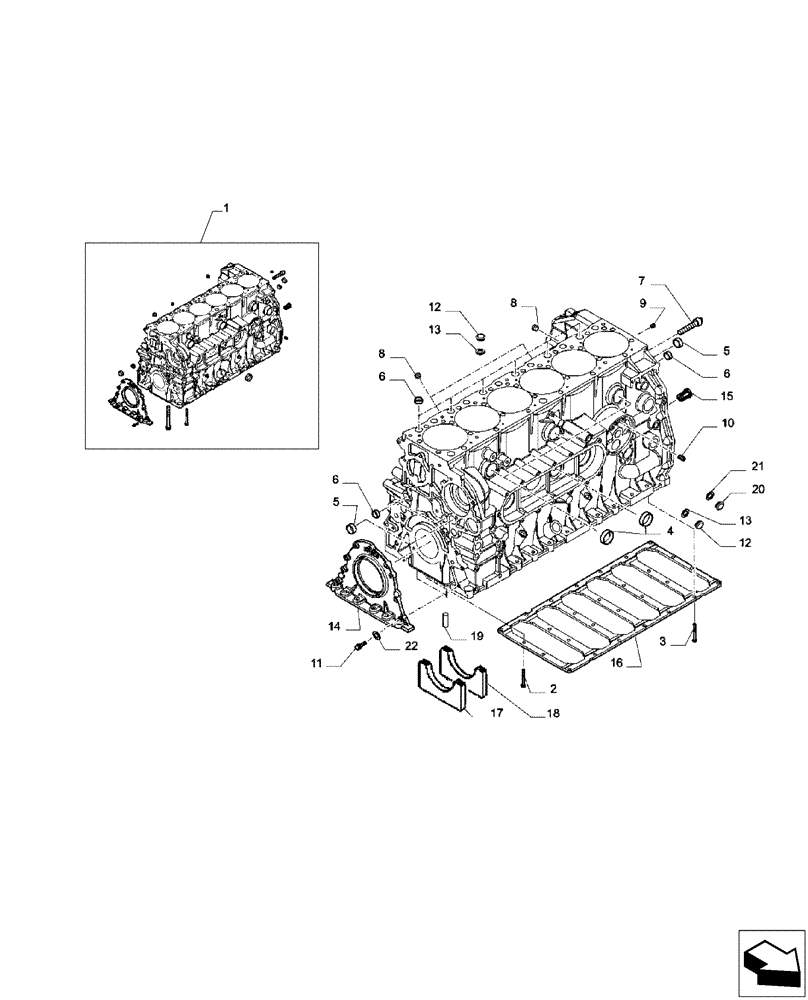

Запчасти Case IH F2CFA613A E001 (10.001.AB[01]) - CYLINDER BLOCK (10) - ENGINE

1

95280581

CYLINDER BLOCK

Assy

1шт.

2

504125417

SCREW

14шт.

3

16587035

BOLT,Hex, M10 x 20mm, Cl 10.9

8шт.

4

14282970

PLUG,M45, Tapered, Stainless

4шт.

5

14282470

PLUG,M28, Tapered, Stainless

3шт.

6

16990670

PLUG,Lock, 22mm Dia

10шт.

7

500356932

PLUG

3шт.

8

504051237

PLUG

3шт.

9

504051236

PLUG,Threaded, 1/8"

1шт.

10

500314967

DOWEL

3шт.

11

18188725

BOLT

9шт.

12

11903211

PLUG,M12 x 1.25 x 12, Cl5.8

Front

1шт.

13

99489017

GASKET,9.9mm ID x 20mm OD x 2.5mm Thk

1шт.

14

504364489

COVER

Front

1шт.

15

504142601

VALVE

1шт.

16

504127723

PLATE

1шт.

17

504125415

BEARING CAP

Center

6шт.

18

504125416

BEARING CAP

Lateral

1шт.

19

504137977

DOWEL

1шт.

20

16992515

PLUG

1шт.

21

5167640

SEALING WASHER,14.09mm ID x 26.45mm OD x 1.5mm Thk

1шт.

22

17088374

WASHER

9шт.
