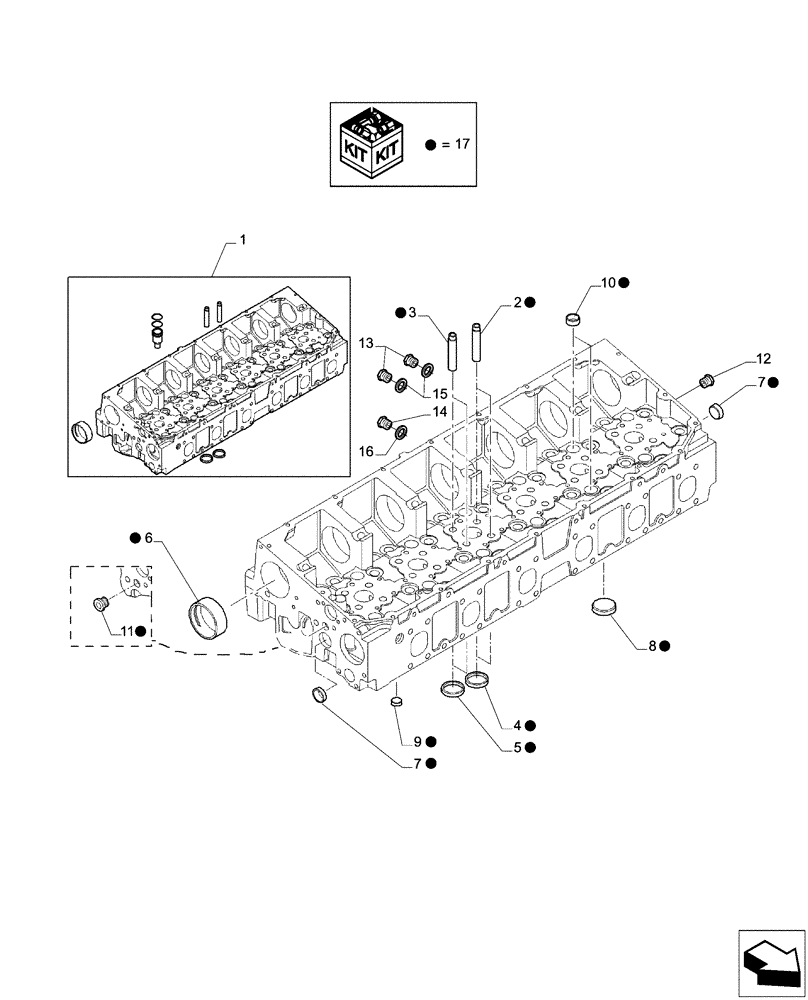

Запчасти Case IH F2CFA613A E001 (10.101.AA[02]) - CYLINDER HEAD (10) - ENGINE

1

503776663

CYLINDER HEAD

Complete

1шт.

2

504361838

VALVE GUIDE

Exhaust

12шт.

3

504361843

VALVE GUIDE

Inlet

12шт.

4

504361850

VALVE SEAT

Inlet

12шт.

5

504362737

VALVE SEAT

Exhaust

12шт.

6

504138890

BUSHING

7шт.

7

14282470

PLUG,M28, Tapered, Stainless

3шт.

8

14282970

PLUG,M45, Tapered, Stainless

2шт.

9

14282170

PLUG,M20, Tapered, Stainless

6шт.

10

504344694

PLUG,M25, Tapered

12шт.

11

504051237

PLUG

1шт.

12

504138062

PLUG

3шт.

13

16992211

PLUG

2шт.

14

10300714

PLUG,M16 x 1.5 x 14

1шт.

15

99489017

GASKET,9.9mm ID x 20mm OD x 2.5mm Thk

2шт.

16

99489019

SEALING WASHER

1шт.

17

95280599

CYLINDER HEAD

Complete, Incl 2 -11

1шт.
