(10.304.04) - OIL PRESSURE REGULATION VALVE (504191874)

Запчасти Case IH F2CE9684U E151 (10.304.04) - OIL PRESSURE REGULATION VALVE (504191874) (01) - ENGINE

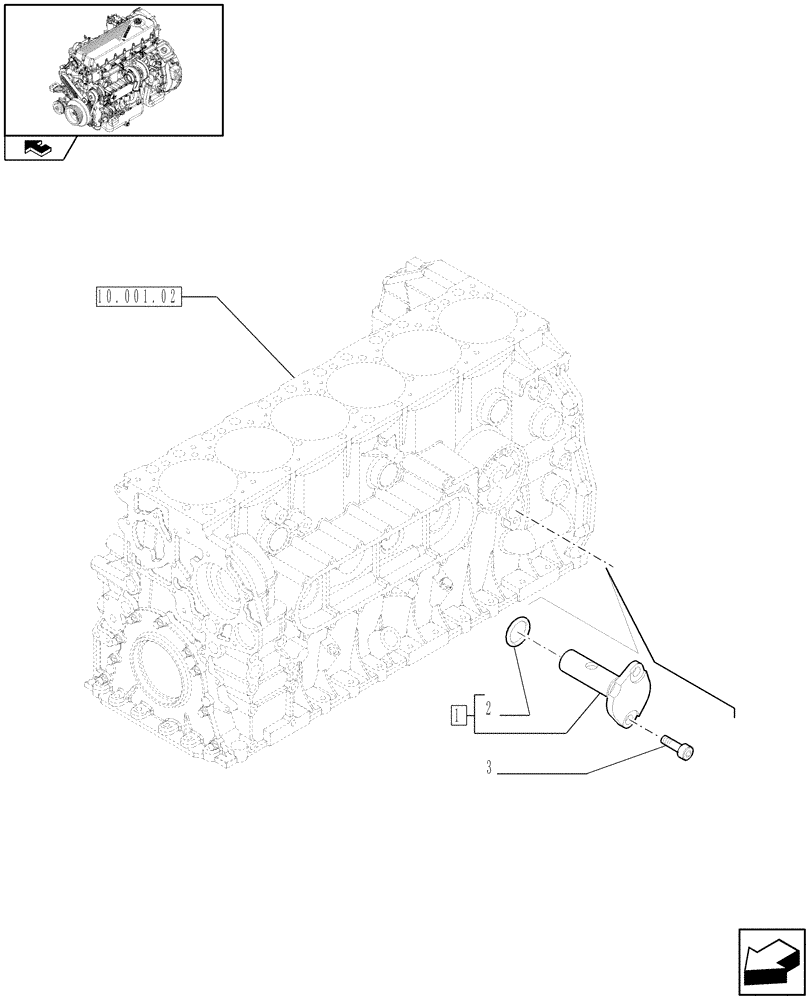

Схема запчастей Case IH F2CE9684U E151 - (10.304.04) - OIL PRESSURE REGULATION VALVE (504191874) (01) - ENGINE
10.001.02
1
3
home
2
FIT
1:1
100%

№

Артикул

Название

Примечание

Количество

1

504191876

VALVE

ASSY

1шт.

2

14463281

O-RING,0.984" ID x 0.139" Width

D = 24.9 x 3.5

1шт.

3

18053625

SCREW,M8 x 16mm

M8 x 16

2шт.
