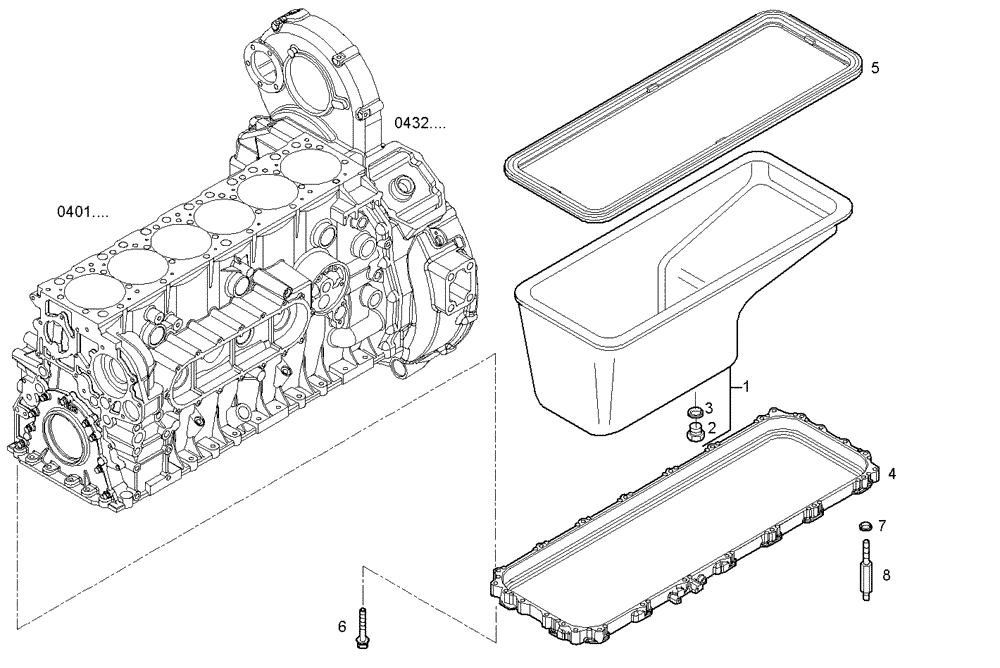

Запчасти Case IH F2CE9684P E006 (0420.243) - OIL SUMP

1

504158774

SUMP

OIL SUMP

1шт.

2

10305171

PLUG,M22 x 1.5 x 21

THREADED PLUG, M22X1,5

1шт.

3

16508460

SEAL

WASHER, 22x27x1,5

1шт.

4

504143828

SPACER

SPACING BAR

1шт.

5

504125618

GASKET

OIL SUMP GASKET

1шт.

6

16587525

BOLT,M10 x 45mm

HEXAGON BOLT, M10X45 MM

23шт.

7

17095024

WASHER

SPRING WASHER, dia=10X18 MM

3шт.

8

504005577

PROP

SPACING BAR

3шт.
