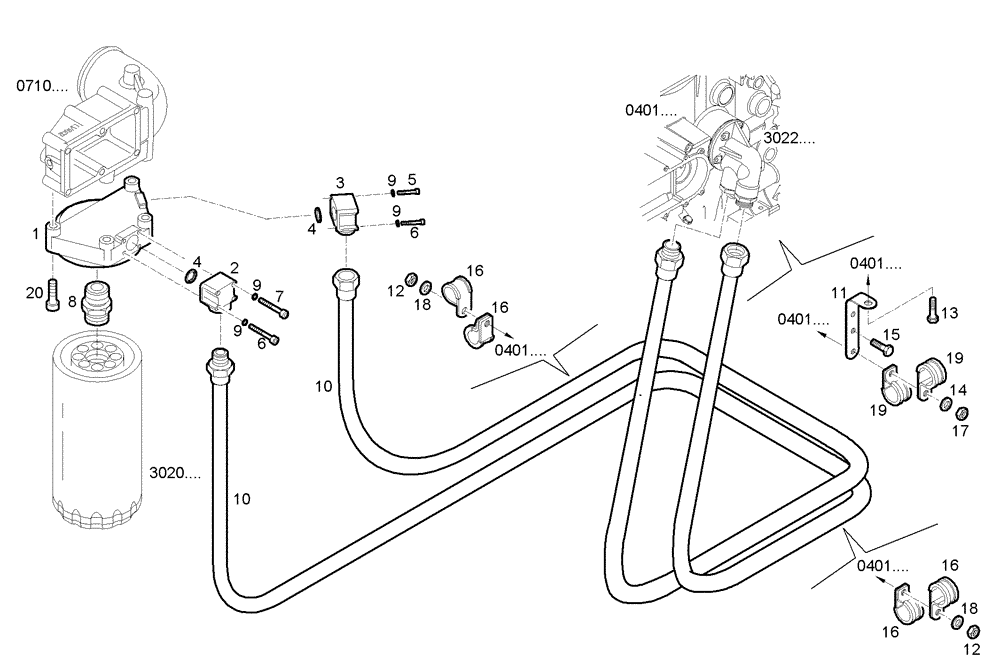

Запчасти Case IH F2CE9684P E006 (3060.000) - LUBE OIL LINES

1

504218098

BRACKET

SUPPORT

1шт.

2

504005572

ELBOW

PIPE SOCKET

1шт.

3

98481998

FITTING

ELBOW COUPLING

1шт.

4

2852978

O-RING,0.103" Thk x 0.924" ID, -119, Cl 7, 75 Duro

O-RING, 2,62x23,47

2шт.

5

16689724

SCREW,M6 x 45mm

CYLIND-HEAD SCREW, M6X45 MM

2шт.

6

16689824

SCREW,M6 x 50mm

CYLIND-HEAD SCREW, M6X50 MM

4шт.

7

16689924

SCREW

CYLIND-HEAD SCREW

2шт.

8

99431947

HYD CONNECTOR

THREADED UNION, M30X2

1шт.

9

11197774

BELLEVILLE WASHER,M6 Bolt Size x 12mm OD x 1.2mm Thk

WASHER, dia=6X12 MM

8шт.

10

504218108

HYD TUBE

OIL LINE

2шт.

11

500320255

BRACKET

FASTENING BRACKET

1шт.

12

2852389

FLANGE NUT

HEXAGON NUT, M8

3шт.

13

2852323

SCREW,M8 x 1.25 x 14mm

HEXAGON BOLT, M8X14 MM

1шт.

14

9824259

WASHER,6.4mm ID x 12mm OD x 1.6mm Thk

WASHER, dia=6X12 MM

1шт.

15

16585825

SCREW,M6 x 20mm

HEXAGON BOLT, M6X20 MM

1шт.

16

17317390

CLAMP

FASTENING BRACKET, dia=28 MM x M8

6шт.

17

16750125

HEXAGON NUT, M6

NUT

1шт.

18

10519624

WASHER,8.15mm ID x 17mm OD x 2mm Thk

WASHER, dia=8X16 MM

3шт.

19

17315790

CLAMP

HOSE CLIP, dia=28 MM x M6

2шт.

20

16692824

SCREW

CYLIND-HEAD SCREW, M10X60 MM

4шт.
