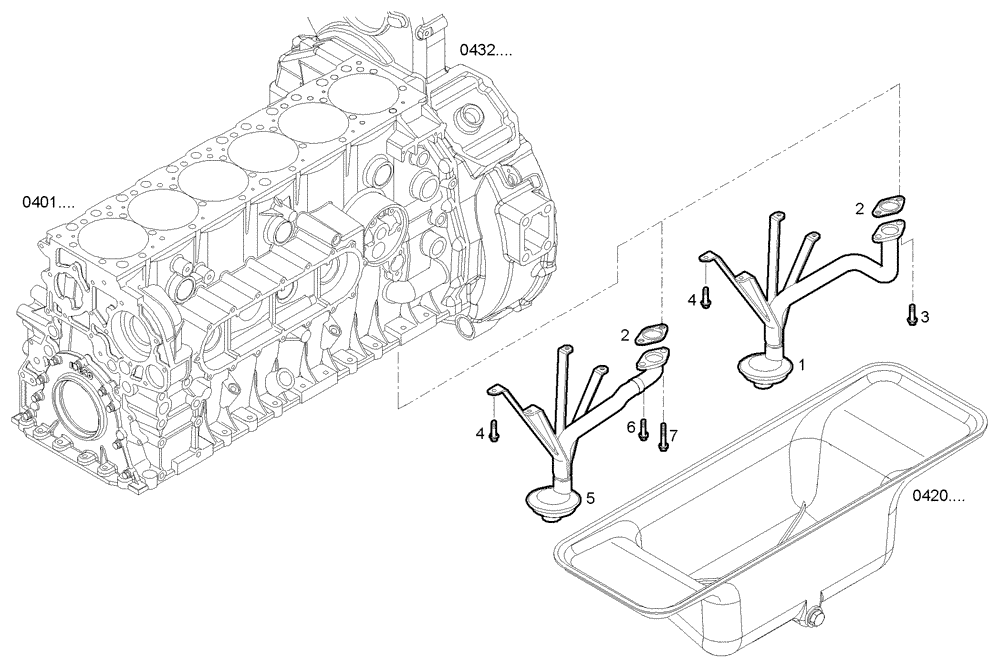

Запчасти Case IH F2CE9684M E008 (3050.027) - SUCTION STRAINER

1

504155884

STRAINER ELEMENT

SUCTION STRAINER, UP TO # 7518

1шт.

2

504149689

GASKET

FLAT ENGINE GASKET

1шт.

3

16673735

BOLT,Hex, M8 x 1.25 x 25mm

HEXAGON BOLT, M8X25 MM, UP TO # 7518

2шт.

4

2852323

SCREW,M8 x 1.25 x 14mm

HEXAGON BOLT, M8X14 MM

4шт.

5

504250516

STRAINER ELEMENT

SUCTION STRAINER, FROM # 7519

1шт.

6

16592225

BOLT,M8 x 55mm

HEXAGON BOLT, M8X55 MM, FROM # 7519

1шт.

7

16673635

BOLT,Hex, M8 x 1.25 x 20mm, Full Thd

HEXAGON BOLT, M8X1.25X20, FROM # 7519

1шт.
