(3001.005) - OIL PUMP

Запчасти Case IH F2CE9684M E008 (3001.005) - OIL PUMP

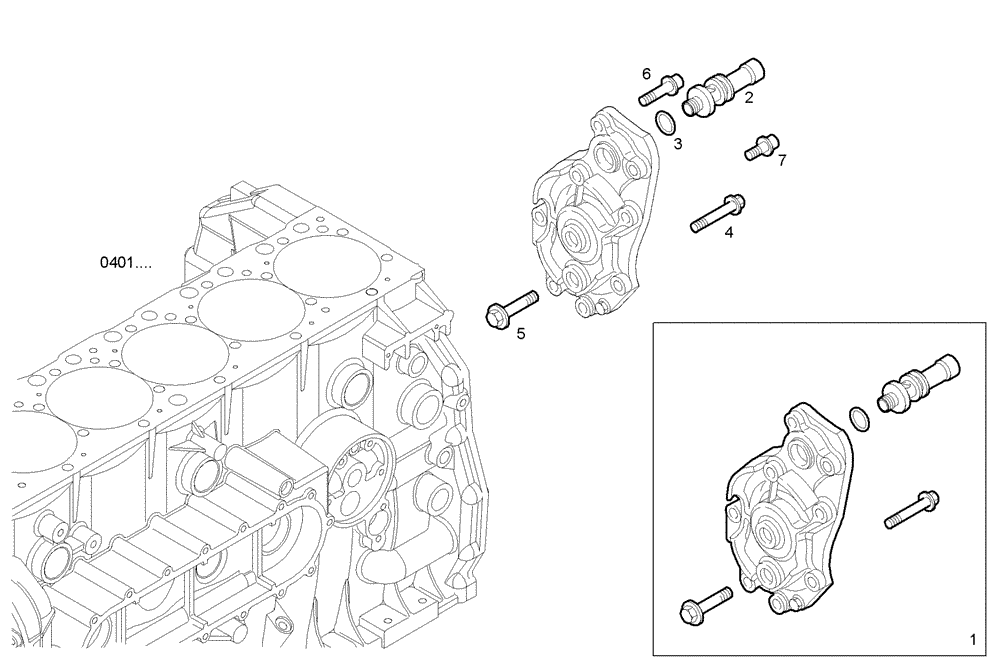

Схема запчастей Case IH F2CE9684M E008 - (3001.005) - OIL PUMP
FIT
1:1
100%

№

Артикул

Название

Примечание

Количество

1

504131225

ENGINE OIL PUMP

LUBE OIL PUMP

1шт.

2

500304389

SAFETY VALVE

SAFETY VALVE

1шт.

3

14457681

O-RING,0.103" Thk x 0.862" ID, -118, Cl 7, 75 Duro

O-RING, dia=21,8 MM SP=2,6 MM

1шт.

4

16591725

SCREW,Hex, M6 x 40mm

HEXAGON BOLT

1шт.

5

18137825

BOLT,Hex, M6 x 16mm

HEXAGON BOLT, M6X16

1шт.

6

500355363

SCREW

CYLIND-HEAD SCREW, M8X1,25X60 MM

5шт.

7

504010370

BOLT

CYLIND-HEAD SCREW, M8X1,25X45 MM

3шт.
