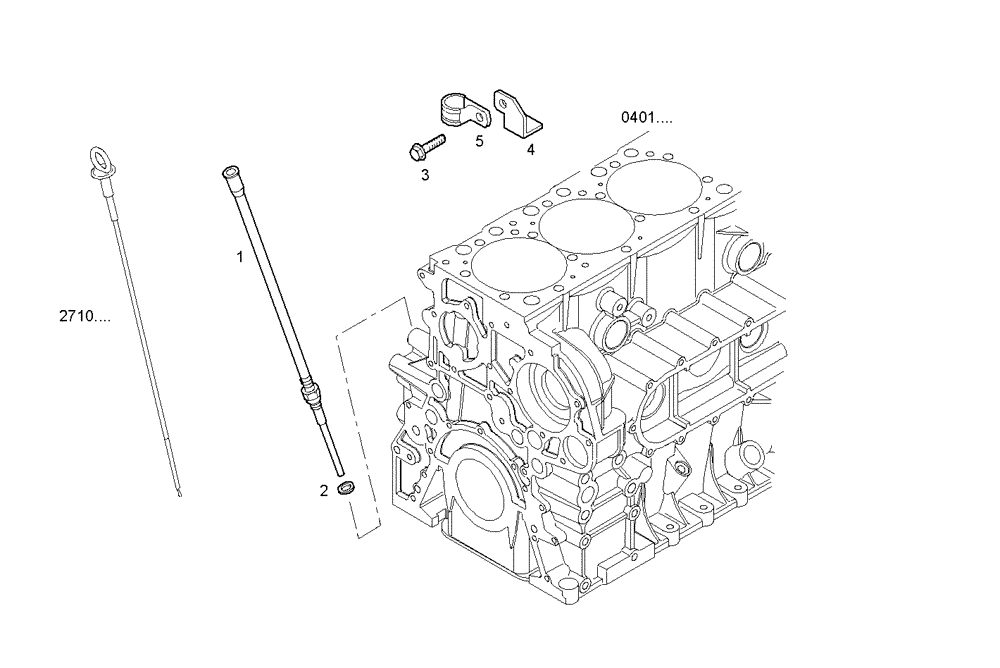

Запчасти Case IH F2CE9684M E008 (2712.026) - OIL DIPSTICK PIPE

1

504323917

TUBE

OIL LEVEL TUBE

1шт.

2

5167640

SEALING WASHER,14.09mm ID x 26.45mm OD x 1.5mm Thk

SEAL GASKET, dia=18X26 MM SP=1,5 MM

1шт.

3

16586225

BOLT,M8 x 16mm

HEXAGON BOLT, M8X1,25X16 MM

1шт.

4

4791406

BRACKET

RETAINER

1шт.

5

17316699

CLAMP

PIPE CLIP, dia=14 MM

1шт.
