Запчасти Case IH F2CE9684M E006 (0401.013) - CRANKCASE

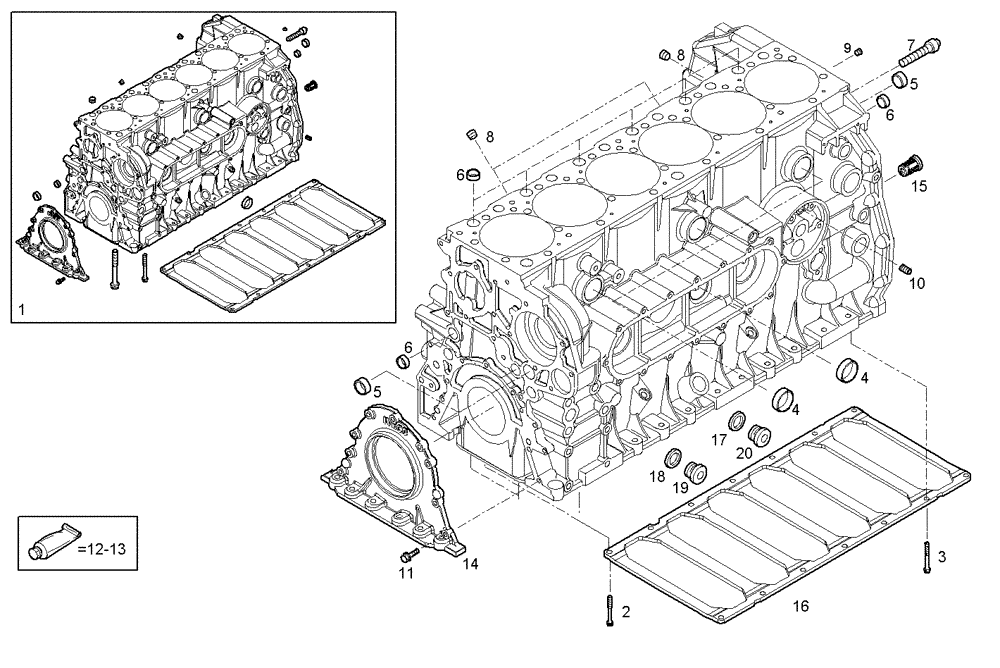

Схема запчастей Case IH F2CE9684M E006 - (0401.013) - CRANKCASE

Артикул

Название

Примечание

Количество

1

504225546

CYLINDER BLOCK

CRANKCASE

1шт.

2

504125417

SCREW

HEXAGON BOLT, M16X2X68 MM

14шт.

3

18139424

SCREW,Hex, M10 x 20mm

HEXAGON BOLT, M10X20 MM

12шт.

4

16991370

PLUG

LOCK PLUG, dia=45 MM

4шт.

5

16990870

PLUG

LOCK PLUG, dia=28 MM

3шт.

6

16990670

PLUG,Lock, 22mm Dia

LOCK PLUG, dia=22 MM

10шт.

7

500356932

PLUG

LOCK PLUG, dia=12 MM

3шт.

8

504051237

PLUG

THREADED PLUG, DIAM=1/4"

3шт.

9

504051236

PLUG,Threaded, 1/8"

THREADED PLUG, DIAM=1/8"

1шт.

10

500314967

DOWEL

DOWEL PIN, dia=10 MM

3шт.

11

16673735

BOLT,Hex, M8 x 1.25 x 25mm

HEXAGON BOLT, M8X25 MM

9шт.

12

2992695

SEAL

ADHESIVE/STICKER, LOCTITE

1шт.

13

2995644

SEALANT

ADHESIVE/STICKER

1шт.

14

504125098

COVER ASSY

FRONT C.CASE COVER

1шт.

15

504142601

VALVE

VALVE

1шт.

16

504127723

PLATE

STIFFENING PLATE

1шт.

17

99489017

GASKET,9.9mm ID x 20mm OD x 2.5mm Thk

SEAL GASKET, dia=12X20 MM SP=1,5 MM

1шт.

18

5167640

SEALING WASHER,14.09mm ID x 26.45mm OD x 1.5mm Thk

SEAL GASKET, dia=18X26 MM SP=1,5 MM

1шт.

19

16992515

PLUG

THREADED PLUG, M18X1,5

1шт.

20

16887515

PLUG

THREADED PLUG

1шт.

Выбрано товаров: 20
