Запчасти Case IH F2CE9684L E005 (0610.013) - CYLINDER HEAD

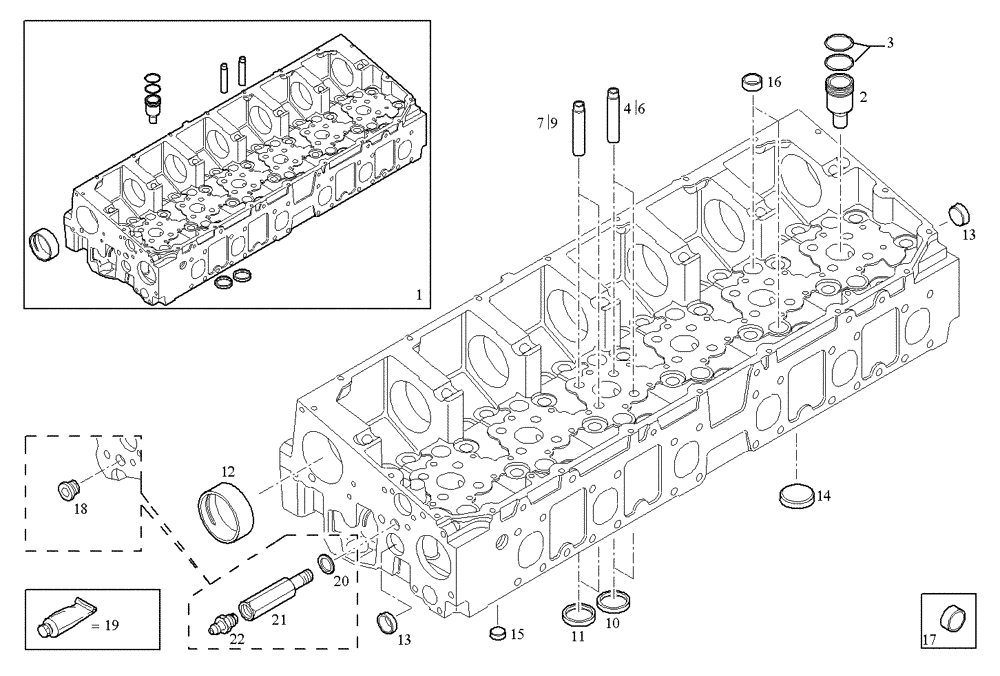

Схема запчастей Case IH F2CE9684L E005 - (0610.013) - CYLINDER HEAD

Артикул

Название

Примечание

Количество

1

504217380

CYLINDER HEAD

CYLINDER HEAD

1шт.

2

504127833

NOZZLE HOLDER

NOZZLE HOLDER SEAT

6шт.

3

14453881

O-RING,23.52mm ID x 1.78" Width

O-RING, dia=23,5 MM SP=1,7 MM

12шт.

4

500391436

EXHAUST VALVE GUIDE

VALVE GUIDE, EXHAUST

12шт.

5

500391437

VALVE, EXHAUST, OVER

VALVE GUIDE +0,2, EXHAUST

12шт.

6

500391438

VALVE, EXHAUST, OVER

VALVE GUIDE +0,4, EXHAUST

12шт.

7

500391440

INTAKE VALVE GUIDE

VALVE GUIDE, INTAKE

12шт.

8

500391441

OVERSIZE INLET VALVE

VALVE GUIDE +0,2, INTAKE

12шт.

9

500391442

OVERSIZE INLET VALVE

VALVE GUIDE +0,4, INTAKE

12шт.

10

99447343

VALVE SEAT

VALVE SEAT STD., EXHAUST

12шт.

11

99456802

VALVE SEAT

VALVE SEAT STD., INTAKE

12шт.

12

504125778

BUSHING

BUSH

7шт.

13

16990870

PLUG

LOCK PLUG, dia=28 MM

3шт.

14

16991370

PLUG

LOCK PLUG, dia=45 MM

2шт.

15

16990570

PLUG

LOCK PLUG, dia=20 MM

6шт.

16

504344694

PLUG,M25, Tapered

PLUG, dia=25 MM

12шт.

17

504051236

PLUG,Threaded, 1/8"

THREADED PLUG, DIAM=1/8"

6шт.

18

504051237

PLUG

THREADED PLUG, DIAM=1/4", FROM # 8252

1шт.

19

2992695

SEAL

ADHESIVE/STICKER, LOCTITE

1шт.

20

98474308

SEALING WASHER,16mm ID x 22mm OD x 1.5mm Thk

SEAL GASKET, dia=14X22 MM, UP TO # 8251

1шт.

21

500328252

HYD CONNECTOR

PIPE SOCKET, UP TO # 8251

1шт.

22

500304562

BLEEDER VALVE

BREATHER PLUG, UP TO # 8251

1шт.

Выбрано товаров: 22
