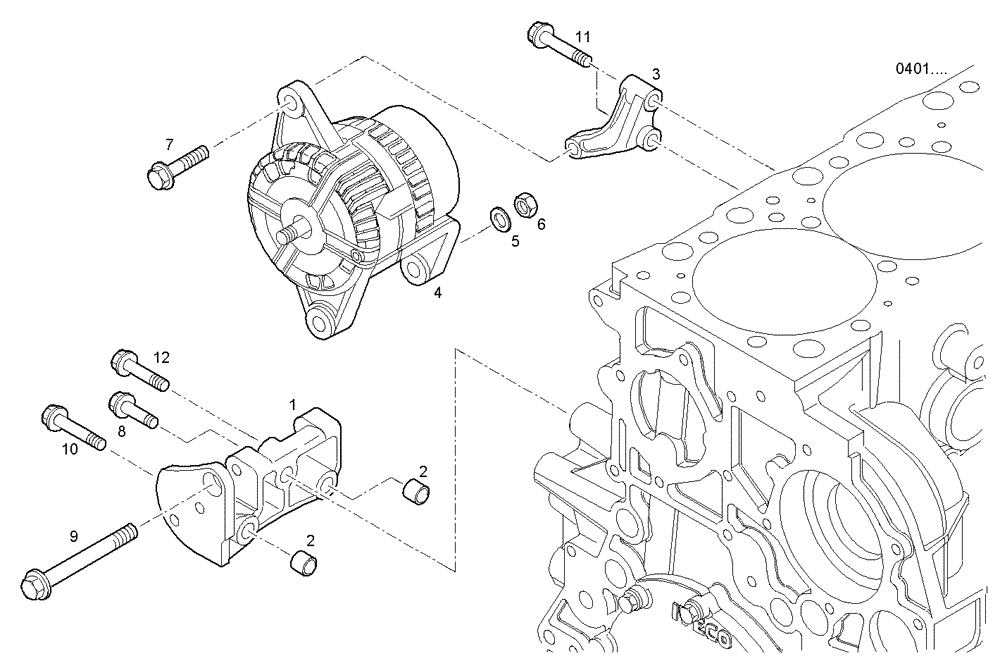

Запчасти Case IH F2CE9684E E015 (4000.018) - GENERATOR

1

504212823

BRACKET

GENERATOR SUPPORT, LOWER

1шт.

2

98405462

DOWEL

DOWEL PIN, dia=10,2 MM

2шт.

3

504212894

BRACKET

GENERATOR SUPPORT, TOP

1шт.

4

84310284

KIT, ALTERNATOR REPA

ALTERNATOR, ASSY

1шт.

5

86625255

WASHER,13.3mm ID x 24.5mm OD x 3mm Thk

WASHER, dia=12X24 MM

1шт.

6

337475

NUT,M12, Cl 10

HEXAGON NUT, M12 (8)

1шт.

7

16934525

BOLT,Hex, M12 x 1.25 x 35mm, Cl 8.8

HEXAGON BOLT, M12X35 MM

1шт.

8

16692024

BOLT,Flng, M10 x 20mm

SCREW, M10X20

1шт.

9

16600024

BOLT,M12 x 160mm

HEXAGON BOLT, M12X160 MM

1шт.

10

2852172

BOLT,Flng, M10 x 1.5 x 70mm

HEXAGON BOLT, M10X70 MM

1шт.

11

16588625

BOLT,Hex, M12 x 60mm, Cl 8.8

HEXAGON BOLT, M12X60 MM

2шт.

12

16587425

BOLT,M10 x 1.5 x 40mm

HEXAGON BOLT, M10X40 MM

1шт.
