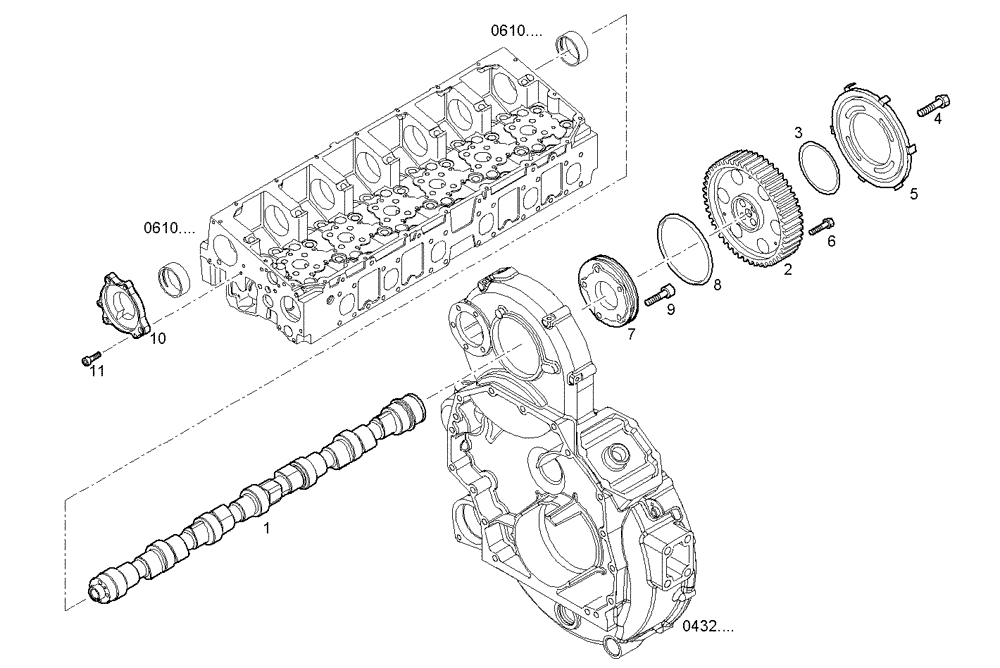

Запчасти Case IH F2CE9684E E015 (1250.011) - TIMING PARTS

1

504129411

CAMSHAFT

CAMSHAFT

1шт.

2

504124637

GEAR

CAMSHAFT PINION

1шт.

3

17290783

O-RING

O-RING

1шт.

4

16676135

SCREW

HEXAGON BOLT, M10X45 MM

4шт.

5

504142643

DRIVE PLATE

PLATE

1шт.

6

500397562

BOLT

HEXAGON BOLT, M6X1X22 MM

3шт.

7

504127775

REAR COVER

COVER, REAR

1шт.

8

14466981

O-RING,0.139" Thk x 5.109" ID, -251, Cl 7, 75 Duro

O-RING, dia=129,8 MM SP=3,53 MM

1шт.

9

16586625

BOLT,M8 x 35mm

HEXAGON BOLT, M8X35 MM

5шт.

10

504134066

COVER

COVER, FRONT

1шт.

11

504010467

SCREW

CYLIND-HEAD SCREW, M6X1X20 MM

3шт.
