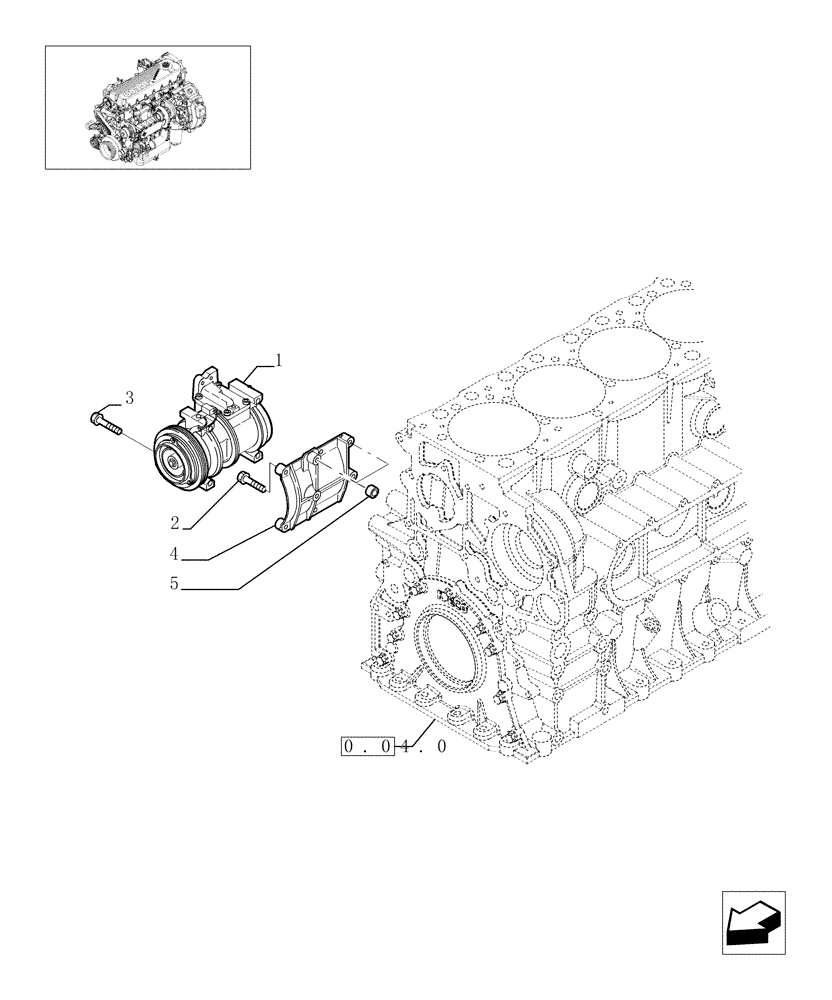

Запчасти Case IH F2CE9684E E002 (0.39.0[01]) - COMPRESSOR, AIRCOND.(504166236)

1

504221553

AIRCOND. COMPRESSOR

- ASSY

1шт.

SEE PL 0.39,0/A

1шт.

2

2852355

SCREW

M10 x 25

1шт.

2

2852326

SCREW

M10 x 40

3шт.

3

16592324

BOLT,Hex, M8 x 60mm

M8X410mm

2шт.

3

2852267

FLANGE BOLT,Hex, M8 x 1.25 x 90mm

2шт.

4

504165038

BRACKET

1шт.

5

98405462

DOWEL

1шт.
