Запчасти Case IH F2CE9684C E001 (0.30.0[01]) - PUMP, ENGINE OIL & RELATED PARTS (504133121)

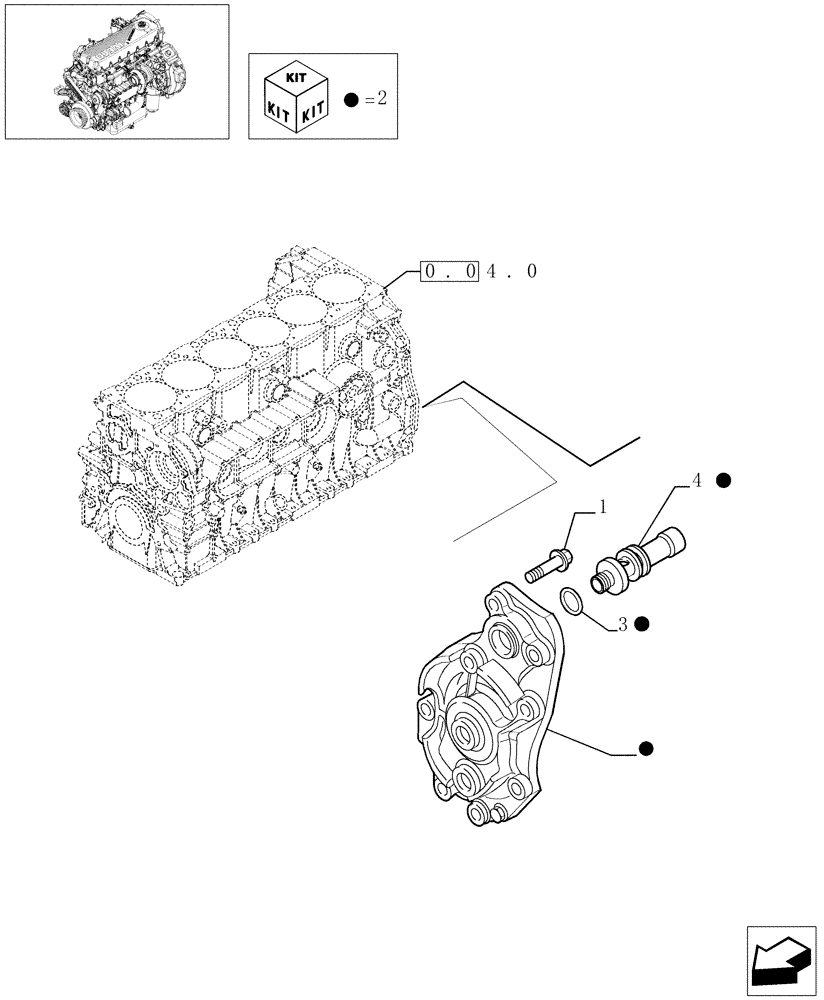

Схема запчастей Case IH F2CE9684C E001 - (0.30.0[01]) - PUMP, ENGINE OIL & RELATED PARTS (504133121)
2
3
1
4
0.04.0
1

Артикул

Название

Примечание

Количество

1

500355363

SCREW

M8 x 1.25 x 60

5шт.

1

504010370

BOLT

M8 x 1.25 x 45

3шт.

2

504131225

ENGINE OIL PUMP

Assy

1шт.

2

5801608329R

REMAN-ENG OIL PUMP

Reman For P/N's 504131225

1шт.

2

5801608329C

CORE-ENGINE OIL PUMP

Return Number

1шт.

3

14457681

O-RING,0.103" Thk x 0.862" ID, -118, Cl 7, 75 Duro

D=21.8X2.6 mm

1шт.

4

500304389

SAFETY VALVE

1шт.

Выбрано товаров: 7
