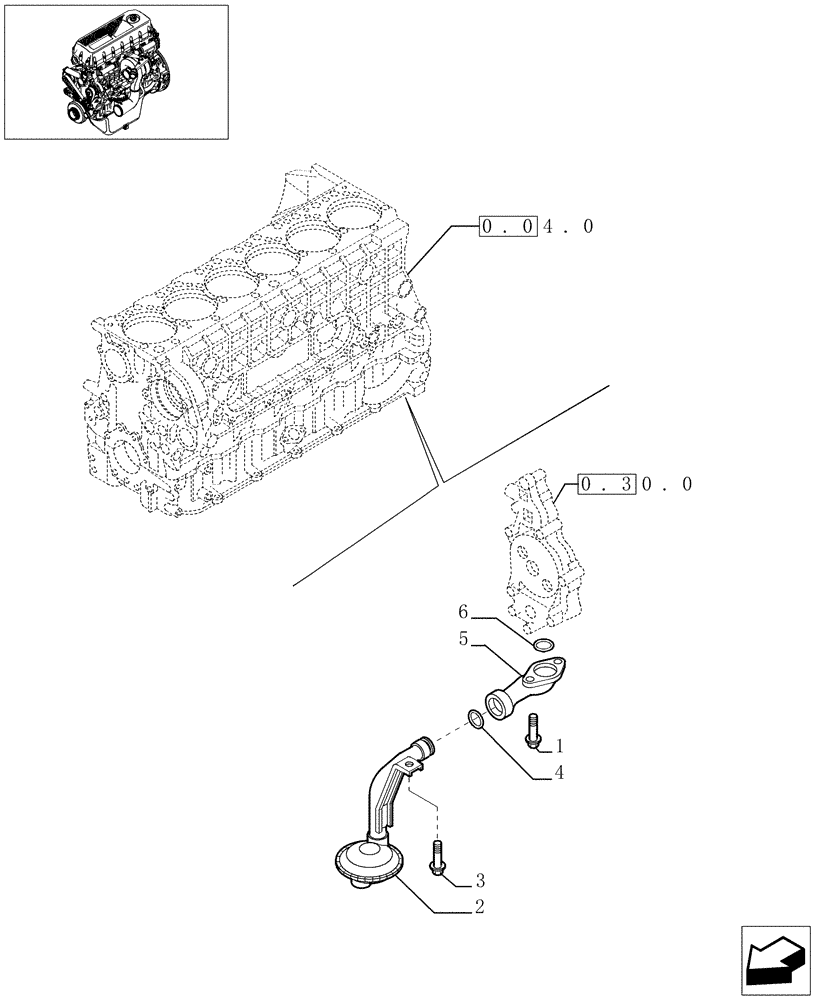

Запчасти Case IH F2BE0684A B003 (0.30.5[01]) - OIL PUMP PIPING (500376147)

1

2852295

SCREW,Hex, M8 x 1.25 x 40mm

M8X40 mm

1шт.

1

2852100

FLANGE BOLT,Hex, M8 x 1.25 x 16mm

2шт.

2

500349681

RIGID TUBE

1шт.

3

16592224

SCREW,M8 x 55mm

M8X55 mm

1шт.

4

14458481

O-RING,1.362" ID x 0.103" Width

D=34.5X2.62 mm

1шт.

5

98474898

ELBOW

1шт.

6

99477046

GASKET

D=38X3 mm

1шт.
