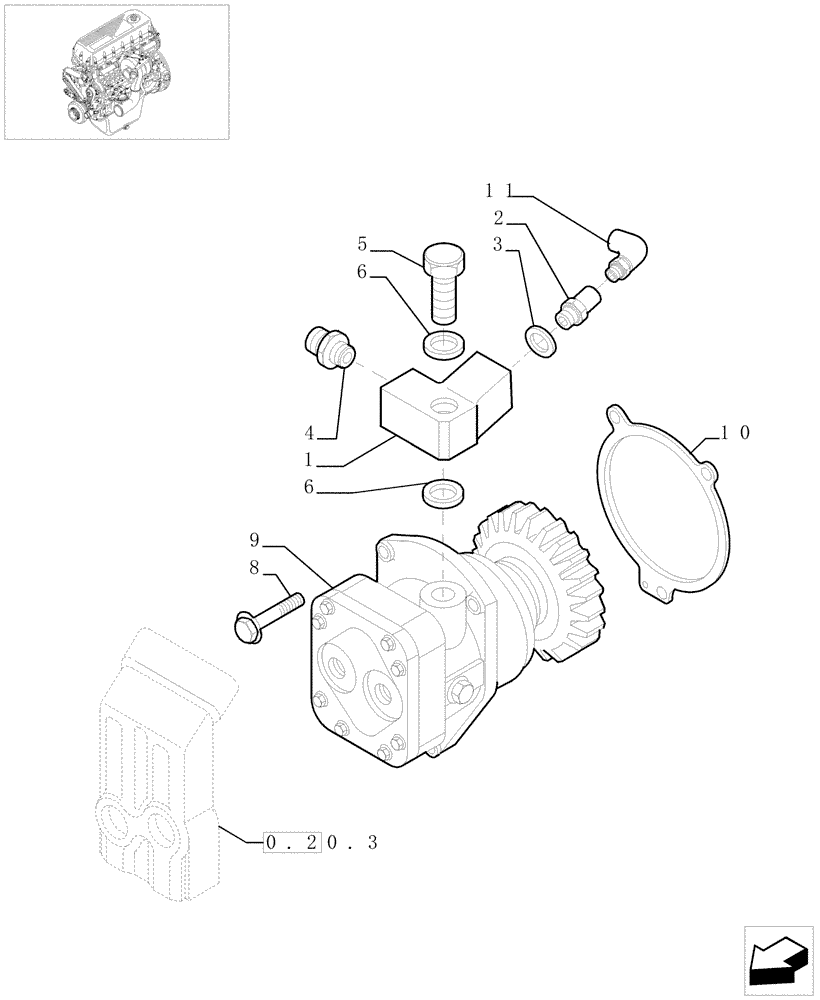

Запчасти Case IH F2BE0684A B003 (0.20.1[01]) - FUEL PUMP & RELATED PARTS (504033397 - 504082634 - 504067190)

1

500342081

HYD CONNECTOR

1шт.

2

500328251

VALVE PRESSURE RELIE

0.2 - 0.3 BAR

1шт.

3

5169544

SEAL,14.7mm ID x 22mm OD x 1.5mm Thk

D=12 mm

1шт.

4

504081274

HYD CONNECTOR

M16X1.5 - M18X1.5

1шт.

5

41031569

FITTING

M16X1.5 - M18X1.5

1шт.

5

504087373

M16X1.5

BANJO BOLT

1шт.

6

98474309

GASKET,16mm ID x 24mm OD x 1.9mm Thk

D=16X24X1.9 mm

2шт.

8

16586525

BOLT,Hex, M8 x 30mm, Cl 8.8

3шт.

9

504066200

FUEL PUMP

1шт.

10

99447382

GASKET

1шт.

11

500350162

ELBOW

M8X30 mm

1шт.
