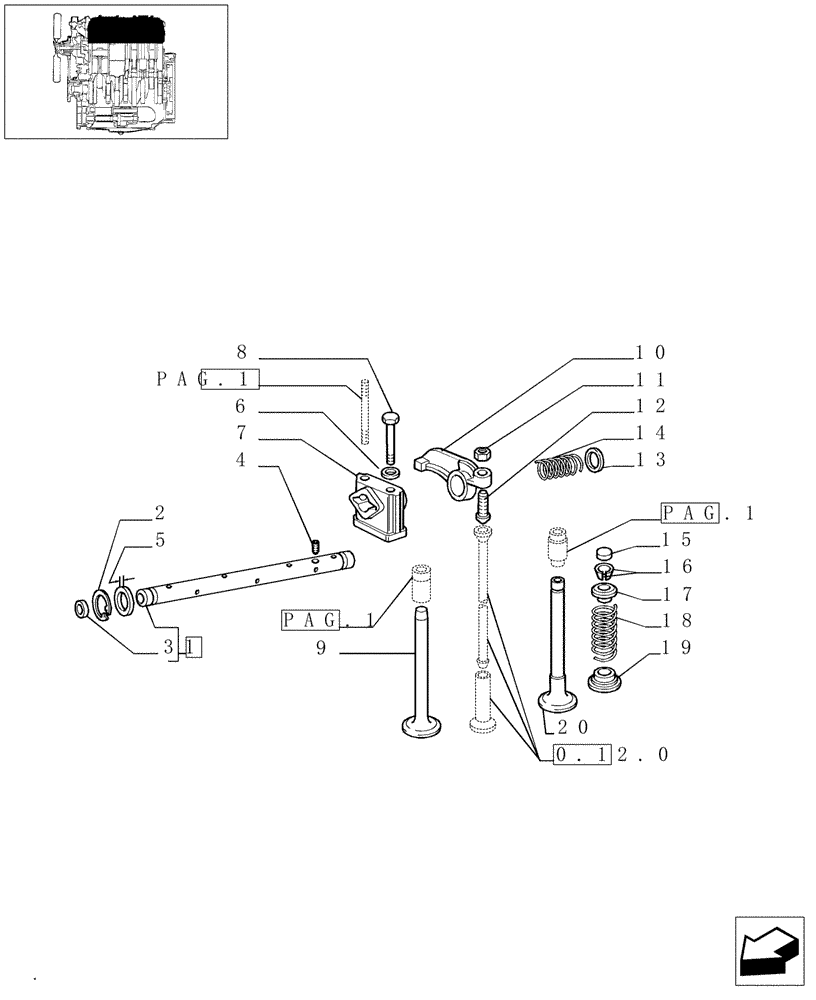

Запчасти Case IH 8045.06.406 (0.06.0[02]) - ENGINE, VALVES (99476131)

1

4842403

SHAFT

ASSEMBLY

1шт.

2

84021874

SNAP RING,M18, Ext

2шт.

3

14328301

PLUG,M12, Tapered

2шт.

4

4846851

SCREW,M6 x 25mm

1шт.

5

4570798

WASHER

0.7 mm

4шт.

5

4570799

WASHER

0.5 mm

4шт.

6

13550304

WASHER,8mm ID x 18mm OD x 2mm Thk

D=8.4 x 16 mm

3шт.

7

4601295

SUPPORT

4шт.

8

16606424

SCREW,M8 x 1.25 x 65mm

M8 x 1,25 x 65

4шт.

9

99432717

STD EXHAUST VALVE

STD ENGINE EXHAUST VALVE

4шт.

9

500300597

STD EXHAUST VALVE

STD ENGINE EXHAUST VALVE

4шт.

10

4848973

ROCKER ARM

8шт.

11

4338920

NUT

8шт.

12

4699783

ADJUSTMENT SCREW

8шт.

13

4639661

THRUST WASHER,18mm ID x 24mm OD x 1mm

6шт.

14

4601296

SPRING

3шт.

15

4838680

CAP

8шт.

16

14196670

ROCKER ARM COTTER

16шт.

17

4780558

CUP

8шт.

18

4812347

SPRING

8шт.

19

4817424

CUP

8шт.

20

98403097

STD INLET VALVE

STD ENGINE INLET VALVE

4шт.

20

99432652

STD INLET VALVE

STD ENGINE INLET VALVE

4шт.

20

500300570

STD INLET VALVE

STD ENGINE INLET VALVE

4шт.
