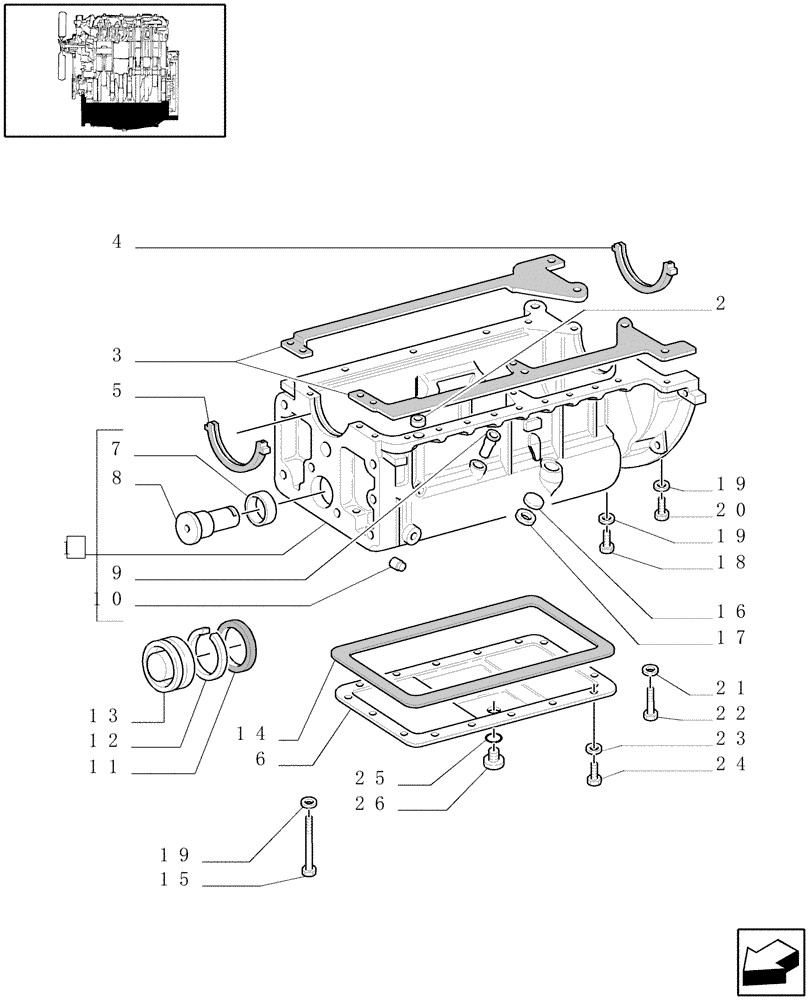

Запчасти Case IH 8045.05.406 (0.04.2) - OIL SUMP & RELATED PARTS (4812924)

1

504051146

ENGINE OIL PAN

1шт.

2

14456981

O-RING,0.424" ID x 0.103" Width

1шт.

3

1940004

OIL PAN GASKET SET

1шт.

4

4600753

SEAL

Rear

1шт.

5

4031577

SEAL,10mm Thk

Front

1шт.

6

98427605

COVER

1шт.

7

4812465

BUSHING

2шт.

8

4812930

PIN,44mm OD x 79mm L

1шт.

9

4694949

TUBE

1шт.

10

99434231

PLUG

M10 x 1.25

1шт.

11

14464881

O-RING,2.484" ID x 2.762" OD x 0.139"

1шт.

12

11061576

SNAP RING,M72, Int

1шт.

13

4812554

PLUG

1шт.

14

98427452

GASKET,1.5mm Thk

1шт.

15

4607933

BOLT,Hex, M10 x 1.25 x 262mm

3шт.

16

10276111

PLUG,M32 x 1.5 x 15

1шт.

17

10265060

SEALING WASHER,32.4mm ID x 38mm OD x 1.5mm Thk

1шт.

18

11307031

BOLT,Hex, M10 x 1.25 x 40mm, Cl 10.9

18шт.

19

10516879

LOCK WASHER,10.2mm ID x 17.7mm OD x 2.5mm Thk

23шт.

20

11306924

BOLT,Hex, M10 x 1.25 x 30, 8.8, Full Thd

2шт.

21

11190574

BELLEVILLE WASHER,M10 Bolt Size x 20mm OD x 2.3mm Thk

2шт.

22

4607934

SCREW,Hex, M10 x 1.25 x 178mm

M10 x 1.25 x 178

2шт.

23

11193874

BELLEVILLE WASHER,M8 Bolt Size x 16mm OD x 1.4mm Thk

18шт.

24

16043324

BOLT,Hex, M8 x 1.25 x 18mm, Cl 8.8, Full Thd

18шт.

25

14457681

O-RING,0.103" Thk x 0.862" ID, -118, Cl 7, 75 Duro

1шт.

26

2852318

PLUG,Rd Hd, Int Hex, M22 x 1.5 x 16mm, ORB

1шт.
