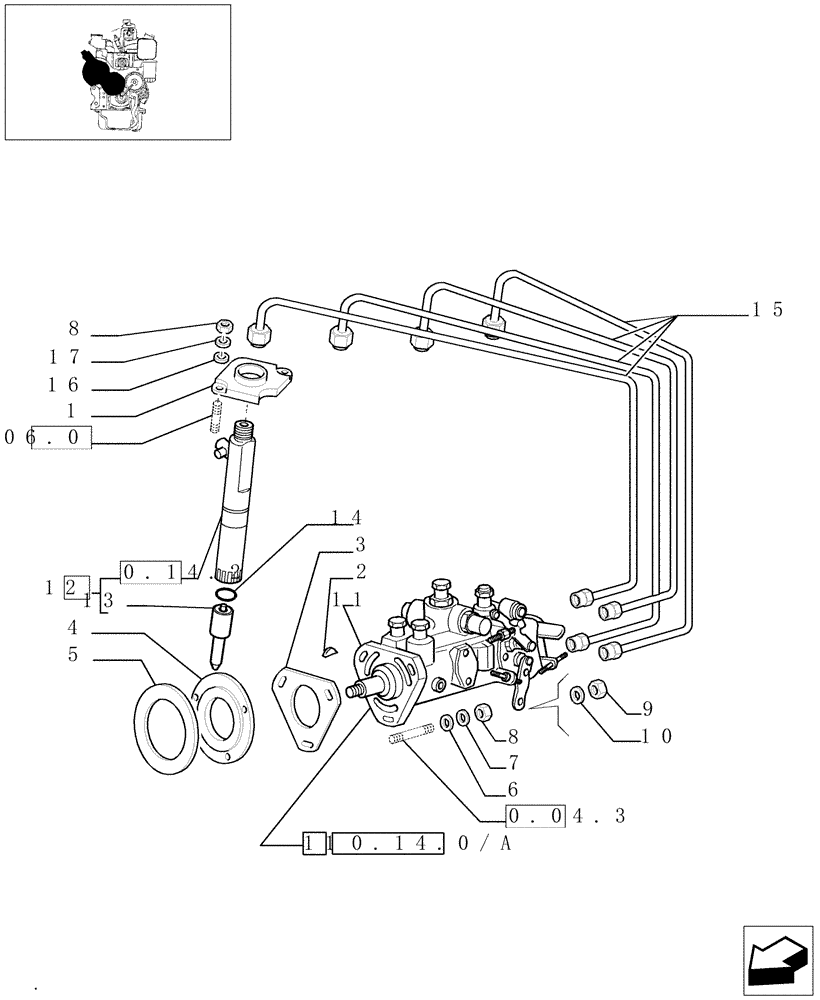

Запчасти Case IH 8045.05.406 (0.14.0[01]) - FUEL SYSTEM - INJECTION PUMP (99475293)

1

4780612

BRACKET

4шт.

2

10205810

WOODRUFF KEY,4mm x 6.5mm x 15.72mm

1шт.

3

4851923

GASKET,0.8mm Thk

1шт.

4

4607646

SPACER,50mm ID x 116.05mm OD x 6mm L

1шт.

5

98400782

GASKET,0.8mm Thk

1шт.

6

12647121

WASHER,8.15mm ID x 20mm OD x 3mm Thk

3шт.

7

11193874

BELLEVILLE WASHER,M8 Bolt Size x 16mm OD x 1.4mm Thk

3шт.

8

16100821

NUT,M8, Cl 10

11шт.

9

17037721

NUT

M5

1шт.

10

11199271

LOCK WASHER

M5

1шт.

11

99472102

FUEL INJECTION PUMP

- ASSY

1шт.

12

500307714

FUEL SYSTEM INJECTOR

- ASSY

4шт.

13

99469341

NOZZLE

Assy

4шт.

14

14453589

O-RING,Cl II-18, 70 Duro, .739" ID x .070" Thk

D=8X1X26MM

4шт.

15

500303658

HOSE KIT

1шт.

16

17089574

SEALING WASHER

D=8 mm

8шт.

17

771326

WASHER,8.40mm ID

D=8 mm

8шт.
