Запчасти Case IH DTI-466C (9E-014) - CRANKCASE FRONT COVER AND RELATED PARTS

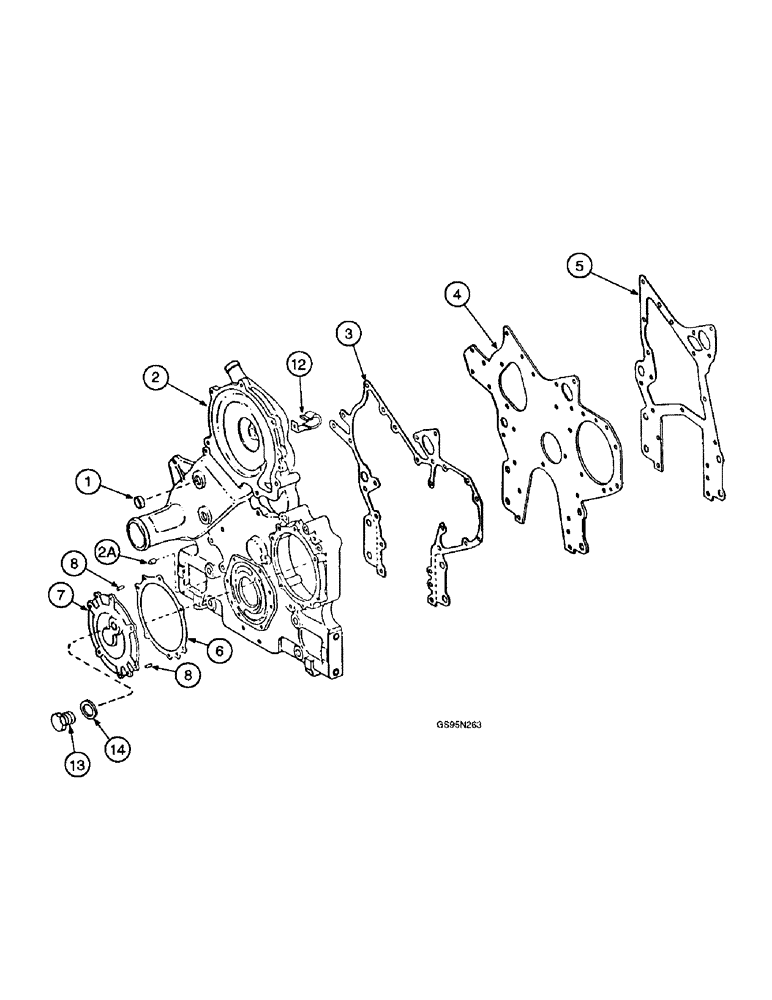

Схема запчастей Case IH DTI-466C - (9E-014) - CRANKCASE FRONT COVER AND RELATED PARTS
4
7
8
3
8
13
12
5
2a
2
14
6
1

Артикул

Название

Примечание

Количество

1

41-1616

PLUG,Cup, 1", Stainless

3шт.

2

1802237C91

COVER

ASSEMBLY - crankcase front, Includes: Ref. 2A

1шт.

Used with machines having engine serial numbers prior to 468TF2U466776, 468BF2U466776, 467TF2U194973 and 466DF2U057834 (Replaces cover 687179C91 by also ordering two plugs 217-439, bolt 326-552, nut 329-105 and washer 396-21034)

1шт.

2

1806031C92

COVER

ASSEMBLY - crankcase front, Includes: Ref. 2A

1шт.

Used with machines having engine serial numbers 468TF2U466775, 468BF2U466775, 467TF2U194972 and 466DF2U057803

1шт.

2a

367572R1

INDICATOR

POINTER - timing

1шт.

326-524

BOLT,Hex, 5/16" - 18 x 1-1/2", Gr 8

(Replaces bolt 25654R1) Hex, 5/16"-18 x 1 1/2", G8

2шт.

326-552

BOLT,Hex, 5/16" - 18 x 3-1/4", Gr 8

5/16"-18 x 3 1/4", G8 (Replaces bolt 25678R1)

3шт.

326-536

BOLT,Hex, 5/16" - 18 x 2-1/4", Gr 8

(Replaces bolt 25234R1) Hex, 5/16"-18 x 2 1/4", G8

7шт.

396-21034

WASHER,8.74mm ID x 17.48mm OD x 2.26mm Thk

- flat, 11/32 x 11/16 x 3/32 inch, hardened (Replaces washer 27326R1)

15шт.

25228R1

BOLT,Hex, 5/16" - 18 x 3/4", Gr 8

- hex, 5/16 NC x 3/4 inch

2шт.

326-1032

BOLT,Hex, 5/8" - 11 x 2", Gr 8

(Replaces bolt 24875R1) Hex, 5/8"-11 x 2", G8

2шт.

326-1044

BOLT,Hex, 5/8" - 11 x 2-3/4", Gr 8

(Replaces bolt 24878R1) Hex, 5/8"-11 x 2 3/4", G8

2шт.

25537R1

WASHER,21/32" x 1 5/16" x .095", HDN

- flat, 21/32 x 1-5/16 x 3/32 inch, hardened

4шт.

24621R1

BOLT,Hex, 3/8" - 16 x 2 1/4", Gr 8

1шт.

396-21041

WASHER,10.31mm ID x 20.63mm OD x 2.26mm Thk

- flat, 13/32 x 13/16 x 3/32 inch, hardened

1шт.

329-105

NUT,5/16"-18, G8

(Replaces nut 25520R1) 5/16"-18, G8

1шт.

217-439

PLUG,Hex Soc, 1/2" - 14 NPTF

- hex socket, 1/2 inch PT (Replaces plug 444705)

2шт.

3

675813C2

GASKET,0.79mm Thk

- crankcase front cover

1шт.

4

675811C1

PLATE

- crankcase front

1шт.

25228R1

BOLT,Hex, 5/16" - 18 x 3/4", Gr 8

- hex, 5/16 NC x 3/4 inch (Replaces bolt 9409011)

4шт.

5

675812C2

GASKET

- crankcase front plate

1шт.

6

675816C2

GASKET,0.79mm Thk

- injection pump access cover

1шт.

7

675814C91

COVER

- injection pump access, also order plug 217-439 and gasket 59658D, items 13 and 14

1шт.

329-105

NUT,5/16"-18, G8

(Replaces nut 25520R1) 5/16"-18, G8

3шт.

326-516

BOLT,Hex, 5/16" - 18 x 1", Gr 8

2шт.

326-556

BOLT,Hex, 5/16" - 18 x 3-1/2", Gr 8

(Replaces bolt 26057R1) Hex, 5/16"-18 x 3 1/2", G8

1шт.

326-560

BOLT,Hex, 5/16" - 18 x 3-3/4", Gr 8

(Replaces bolt 26043R1) Hex, 5/16"-18 x 3 3/4", G8

3шт.

396-21034

WASHER,8.74mm ID x 17.48mm OD x 2.26mm Thk

- flat, 11/32 x 11/16 x 3/32 inch, hardened (Replaces washer 27326R1)

9шт.

8

680481C1

PIN

- dowel, 1/4 x 5/8 inch

2шт.

12

399657R1

CLIP

- engine harness, cable, used with 1470 hillside combines

1шт.

12

363660R1

CLIP

CLAMP - cable, used with 3488, 5288 and 5488 tractors

1шт.

13

217-439

PLUG,Hex Soc, 1/2" - 14 NPTF

- hex socket headless, 1/2 inch PT

1шт.

14

59658D

WASHER,22.62mm ID x 32.54mm OD x 1.72mm Thk

GASKET - oil pan drain plug

1шт.

Выбрано товаров: 34
