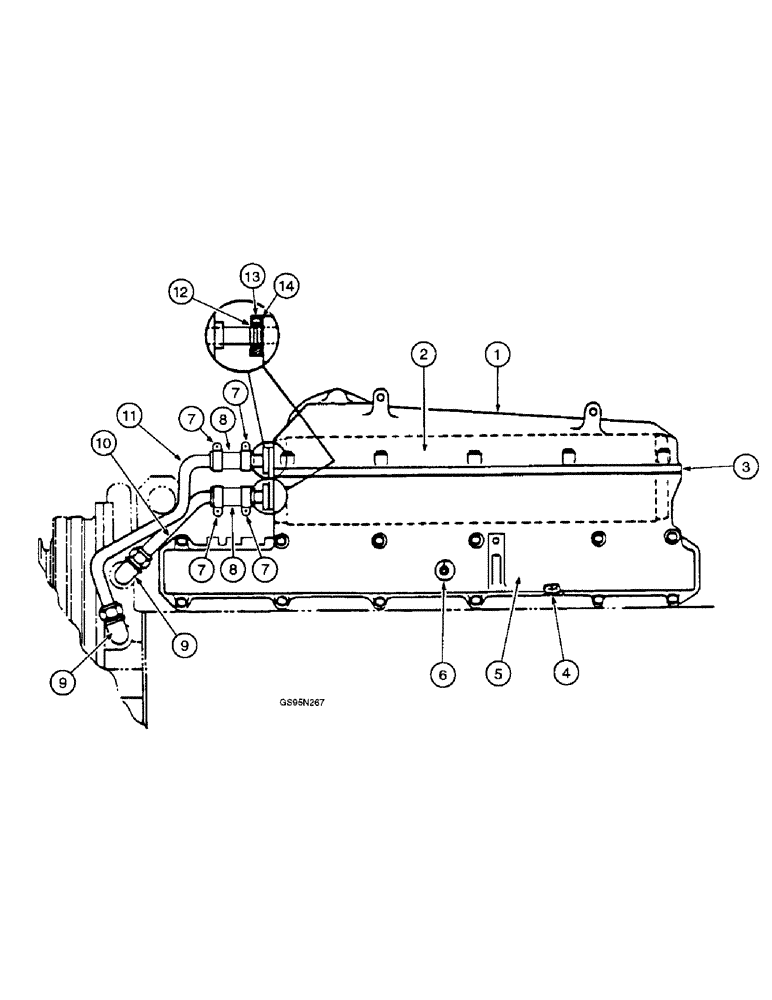

Запчасти Case IH DTI-466C (9E-162) - INTERCOOLER AND CONNECTIONS, 1680 COMBINES HAVING DTI-466C W/SERIAL NUMBER 44516 & AFTER

1

686157C3

COVER

- intercooler housing

1шт.

326-528

BOLT,Hex, 5/16" - 18 x 1-3/4", Gr 8

(Replaces bolt 25750R1) Hex, 5/16"-18 x 1 3/4", G8

10шт.

396-21034

WASHER,8.74mm ID x 17.48mm OD x 2.26mm Thk

- flat, 11/32 x 11/16 x 3/32 inch, hardened (Replaces washer 25533R1)

10шт.

2

686210C91

COOLER

INTERCOOLER - engine

1шт.

326-516

BOLT,Hex, 5/16" - 18 x 1", Gr 8

(Replaces bolt 25493R1) Hex, 5/16"-18 x 1", G8, Full Thd

8шт.

684496C1

WASHER

- special, hardened

8шт.

3

686142C2

GASKET

- intercooler cover

1шт.

4

682199C1

MANIFOLD GASKET

- intake manifold

1шт.

5

1802179C1

HOUSING

- intercooler

1шт.

28565R1

BOLT,Hex, 5/16" - 18 x 3 3/4", Gr 8

- hex, 5/16 NC x 3-3/4 inch

5шт.

26680R1

BOLT,Hex, 5/16" - 18 x 1 1/2", Gr 8

- hex prevailing torque, 5/16 NC x 1-1/2 inch

6шт.

396-21034

WASHER,8.74mm ID x 17.48mm OD x 2.26mm Thk

- flat, 11/32 x 11/16 x 3/32 inch, hardened (Replaces washer 25533R1)

11шт.

6

221-841

PLUG

- hex socket, 1/4 inch PT (Replaces plug 20988R1)

1шт.

7

214-1412

HOSE CLAMP,#12, 0.69" - 1.25", Type F Worm

Adj (Replaces clamp 27702R1) #12, 0.69/1.25 Type F Worm

4шт.

8

279165R1

TUBE

HOSE - intercooler tube, 5/8 OD x 2-3/8 inch long

2шт.

9

872442R1

ELBOW

- intercooler tube

2шт.

10

691863C91

TUBE

- intercooler outlet, includes nut and sleeve

1шт.

11

691859C91

TUBE

- intercooler inlet, includes nut and sleeve

1шт.

12

238-5114

O-RING,0.103" Thk x 0.612" ID, -114, Cl 5, 75 Duro

(Replaces O-ring 350429R1) -114, 70 Duro, .612" ID x .103" Thk

2шт.

13

686146C1

FLANGE

- intercooler water

2шт.

326-516

BOLT,Hex, 5/16" - 18 x 1", Gr 8

(Replaces bolt 25493R1) Hex, 5/16"-18 x 1", G8, Full Thd

4шт.

396-21034

WASHER,8.74mm ID x 17.48mm OD x 2.26mm Thk

- flat, 11/32 x 11/16 x 3/32 inch, hardened (Replaces washer 25533R1)

4шт.

14

686145C2

GASKET

- intercooler flange

2шт.

687069C91

GASKET KIT

KIT - intercooler gasket, no longer available, Includes: Ref. 15 - 19

1шт.

15

686142C2

GASKET

- cover, not illustrated

1шт.

16

1342838C1

GASKET

- elbow (Replaces gasket 686181C1), not illustrated

1шт.

17

686145C2

GASKET

- flange, not illustrated

2шт.

18

682199C1

MANIFOLD GASKET

- manifold, not illustrated

1шт.

19

238-5114

O-RING,0.103" Thk x 0.612" ID, -114, Cl 5, 75 Duro

(Replaces O-ring 350429R1), not illustrated -114, 70 Duro, .612" ID x .103" Thk

2шт.
