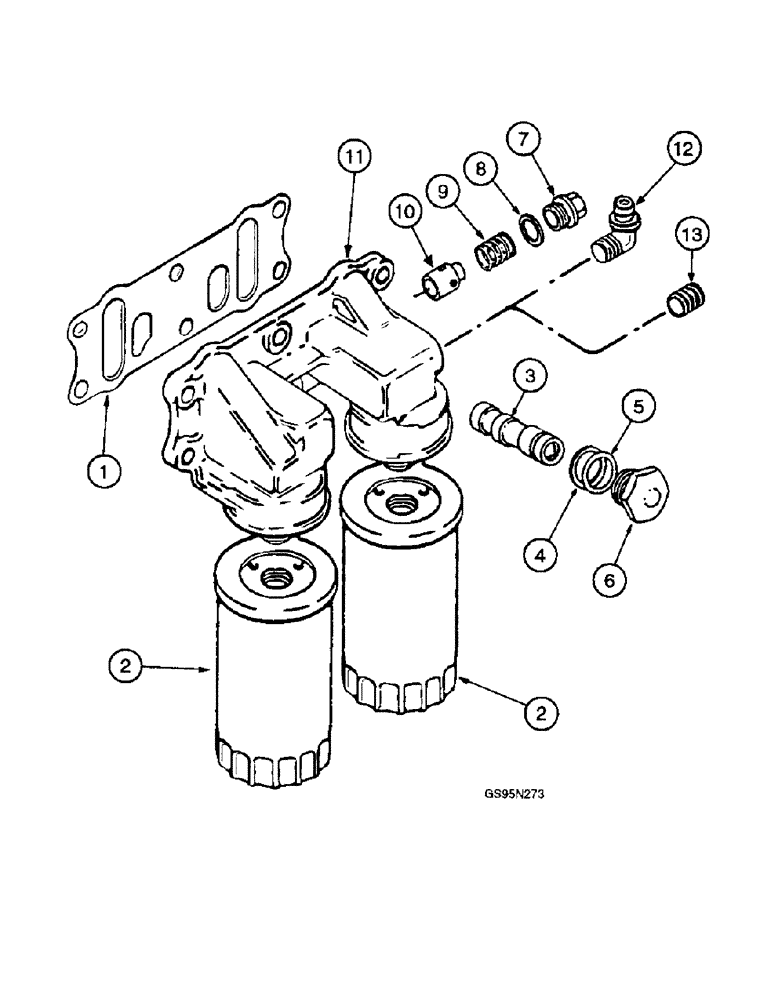

Запчасти Case IH DTI-466C (9E-145A) - OIL FILTER AND CONNECTIONS, 1822 AND 1844 COTTON PICKERS

1

675398C1

GASKET

- oil filter base

1шт.

2

675616C91

FILTER, ELEMENT

FILTER - lubrication oil, includes gasket

2шт.

680237C92

KIT

- oil pressure regulating valve, Includes: Ref. 3 - 5

1шт.

3

NSS

NOT SOLD SEPARAT

HOUSING - regulating valve, order kit 680237C92

1шт.

NSS

NOT SOLD SEPARAT

VALVE - regulating, order kit 680237C92

1шт.

NSS

NOT SOLD SEPARAT

SEAT - regulating valve, order kit 680237C92

1шт.

NSS

NOT SOLD SEPARAT

SPRING - regulating valve, order kit 680237C92

1шт.

NSS

NOT SOLD SEPARAT

RING - regulating valve, order kit 680237C92

2шт.

4

261624R1

GASKET

- regulator valve cap

1шт.

5

349055R2

RING

O-RING - valve

1шт.

6

675395C1

CAP

- pressure regulating valve

1шт.

7

676135C1

PLUG

- by-pass valve

1шт.

8

676136C1

GASKET

- filter by-pass valve

1шт.

9

676137C1

SPRING

- filter by-pass valve

1шт.

10

601917C1

VALVE

- filter by-pass

1шт.

11

677323C1

BASE

- filter, includes adapter

1шт.

26311R1

BOLT,Hex, 3/8" - 16 x 1 1/4", Gr 8

- hex, 3/8 NC x 1-1/4 inch, six used with 1844 cotton pickers, five used with 1822 cotton pickers

1шт.

690206C1

STUD,3/8" - 24 x 2 1/4", Grade 8

BOLT - special, stud, lower rear mounting hole, used with 1822 cotton pickers

1шт.

329-116

NUT,3/8"-24, G8

Used with 1822 cotton pickers (Replaces nut 25523R1) 3/8"-24, G8

1шт.

492-11038

LOCK WASHER,3/8"

used with 1822 cotton pickers (Replaces washer 115093) 3/8"

1шт.

25896R1

WASHER,13/32" x 13/16" x .09", HDN

- flat, 3/8 inch, hardened

6шт.

12

606845C1

ELBOW

- turbocharger oil inlet tube, 90 degree, used with 1844 cotton pickers

1шт.

13

444655

DRAIN PLUG,Sq Soc, 1/4"-18 NPTF

PLUG - square socket head, 1/4 inch PT, used with 1822 cotton pickers

1шт.
