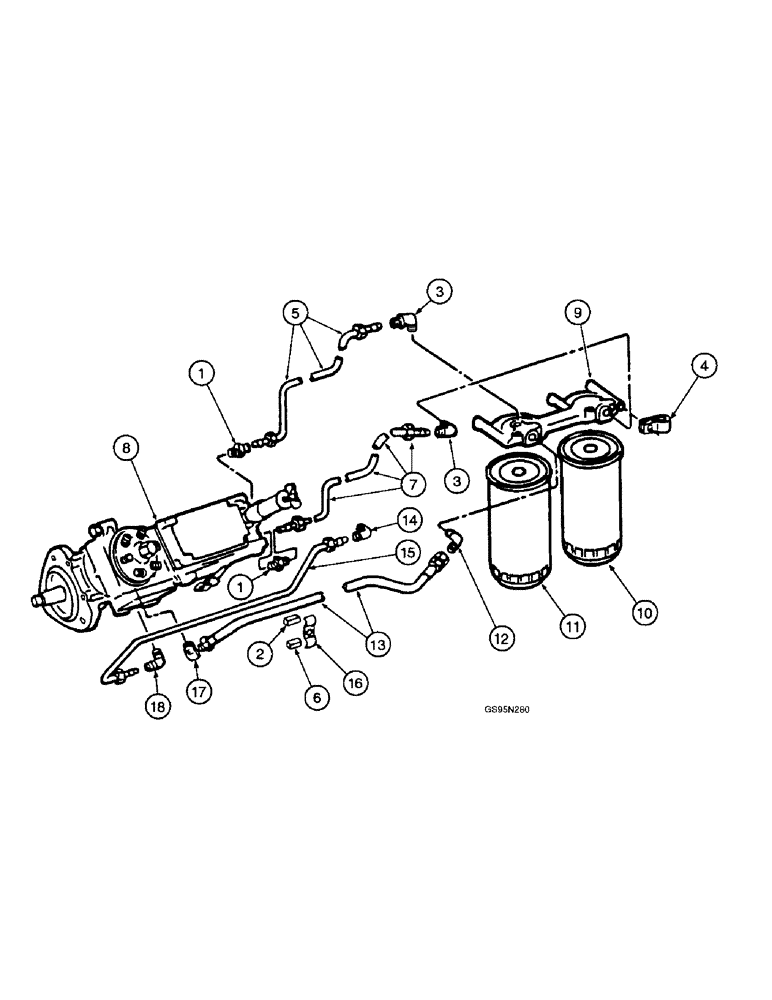

Запчасти Case IH DTI-466C (9E-136) - FUEL FILTER AND CONNECTIONS, AMBAC MODEL 100

1

222-27

HYD CONNECTOR,5/8"-24 x 1/4" NPTF W/Nut

ADAPTER - compression, 3/8 tube OD x 1/4 inch PT, injection pump primary pump inlet and outlet

2шт.

2

258079C1

GROMMET

- fuel pipe, 1/4 inch ID

1шт.

3

222-4047

ELBOW

- primary filter outlet and final filter inlet, 90 degree, compression, 3/8 tube OD x 1/4 inch PT (Replaces elbow 606845C1)

2шт.

4

362123R1

CLIP

- cable harness, used with 1640 combines

1шт.

5

684077C91

TUBE,0.375" OD, 15.75" Length

ASSEMBLY - primary pump to final filter, Includes: Ref. 5A & 5B

1шт.

5a

222-104

SLEEVE,3/8" Tube

- tube, 3/8 inch (Replaces sleeve 265204R1), not illustrated

2шт.

5b

222-114

NUT,5/8"-24

NUT - hex, 3/8 inch OD x 5/8 inch (Replaces nut 265205R1), not illustrated

2шт.

6

397483R1

GROMMET

- fuel hose, 7/8 inch ID (Replaces grommet 536410R1)

2шт.

7

684075C91

TUBE,0.375" OD, 22.25" Length

ASSEMBLY - primary filter to primary pump, Includes: Ref. 7A & 7B

1шт.

7a

222-104

SLEEVE,3/8" Tube

- tube, 3/8 inch (Replaces sleeve 265204R1), not illustrated

2шт.

7b

222-114

NUT,5/8"-24

NUT - hex, 3/8 inch OD x 5/8 inch (Replaces nut 265205R1), not illustrated

2шт.

8

REF

INSTRUCTION

PUMP ASSEMBLY - fuel injecton, parts list Figures 9E-92 and 9E-94

1шт.

9

1809590C91

HEAD ASSY.

HEADER - filter

1шт.

326-668

BOLT,Hex, 3/8" - 16 x 4-1/4", Gr 8

(Replaces bolt 25784R1) Hex, 3/8"-16 x 4 1/4", G8

3шт.

396-21041

WASHER,10.31mm ID x 20.63mm OD x 2.26mm Thk

- flat, 13/32 x 13/16 x 3/32 inch, hardened (Replaces washer 25896R1)

3шт.

217-430

PLUG,Hex Soc, 1/8" - 27 NPTF

- hex socket, 1/8 inch PT (Replaces plug 444688)

1шт.

10

A184773

SEPARATOR

FILTER - primary fuel (Replaces filter 625627C1)

1шт.

11

A184774

FUEL FILTER

FILTER - final fuel (Replaces filter 672603C2)

1шт.

12

222-768

ELBOW,90 Degree, 5/8"-18, 45 Degree Fl x 1/4" NPT

- final filter outlet, 90 degree x 5/8-18 45 degree flare x 1/4 inch PT (Replaces elbow 118755)

1шт.

13

688190C1

HOSE

- final filter to injection pump

1шт.

14

686839C1

ELBOW

- 90 degree flex, at crankcase

1шт.

217-430

PLUG,Hex Soc, 1/8" - 27 NPTF

- pipe, 1/8 inch PT (Replaces plug 444612)

1шт.

15

688301C91

TUBE

ASSEMBLY - lubricating oil, Includes: Ref. 15A & 15B

1шт.

15a

222-153

SLEEVE,1/4" Tube

(Replaces sleeve 685158C1), Not illustrated 1/4" Tube

2шт.

15b

87017024

TUBE NUT,1/2"-24

NUT - hex, 1/4 tube OD x 1/2-24 inch (Replaces nut 915499R1), not illustrated

2шт.

16

684899C1

CLAMP

- final filter to injection pump hose and no. 2 injector pipe

4шт.

326-412

BOLT,Hex, 1/4" - 20 x 3/4", Gr 8

(Replaces bolt 25222R1) Hex, 1/4"-20 x 3/4", G8, Full Thd

2шт.

231-1444

NUT,1/4"-20, GB

NUT, LOCK, (Replaces nut 24468R1) 1/4"-20, GB

2шт.

17

REF

INSTRUCTION

ELBOW - injection pump hose, furnished as part of injection pump

1шт.

18

606296C1

90 ELBOW

- lubricating oil inlet, 90 degree flex

1шт.
