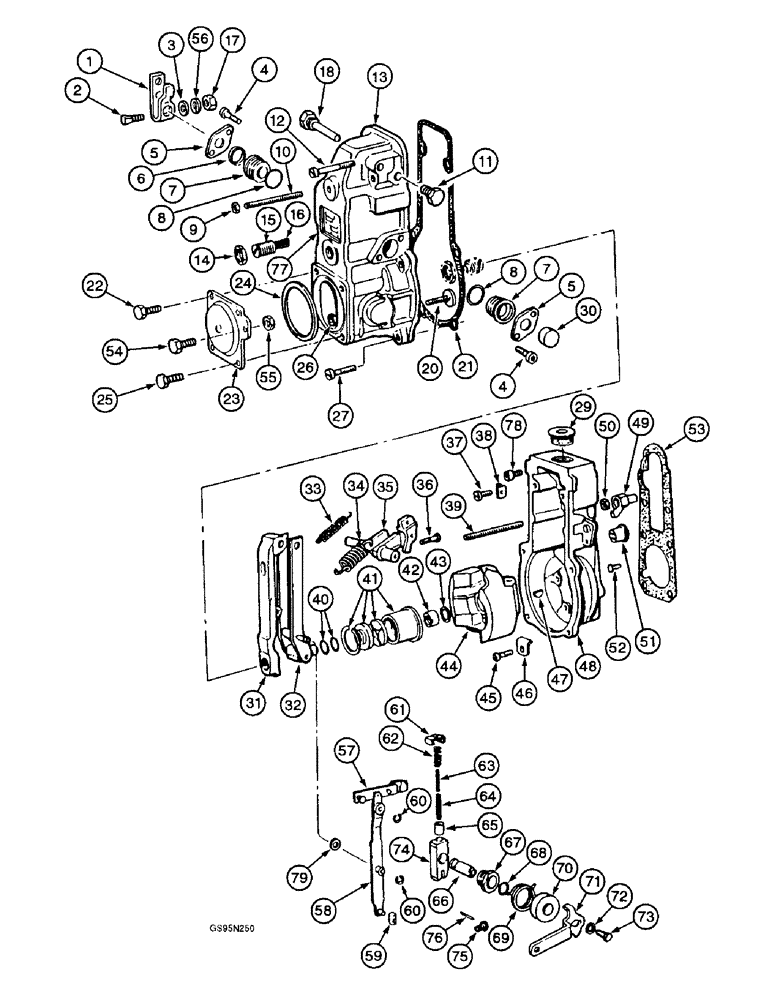

Запчасти Case IH DTI-466C (9E-088) - INJECTION PUMP GOVERNOR, BOSCH MODEL RSV

1

1808728C1

LEVER

- throttle control

1шт.

2

1808822C1

THUMB SCREW,M6 x 26mm

BOLT - throttle lever

1шт.

3

3078056C1

WASHER - throttle lever, no longer available

1шт.

4

1802011C1

CROSS PIN,M5 x 1.5 x 15mm

SCREW - flange

4шт.

5

691302C1

FLANGE

- control shaft, no longer available

2шт.

6

1808310C91

SEAL

SEAL - control shaft bushing

1шт.

7

691299C1

BUSHING

- control shaft, no longer available

2шт.

8

1808730C1

O-RING,14mm ID x 2mm Width

- shaft bushing

2шт.

9

691295C1

NUT

- lock, screw, no longer available

1шт.

10

680234C1

SCREW

- adjusting, no longer available

1шт.

11

1808727C1

PLUG

- tension lever

1шт.

12

680194C1

SCREW

- rear cover, upper

2шт.

13

691298C1

HOUSING

- governor rear cover, no longer available

1шт.

14

1808818C1

NUT

- lock, bumper screw

1шт.

15

3055927R1

SCREW

- bumper spring adjusting, no longer available

1шт.

16

3055928R1

SPRING

- bumper, no longer available

1шт.

17

829-1306

NUT,M6, Cl 10

- hex, 6 mm - 1.0, class 10, Throttle lever

1шт.

18

680181C1

SHAFT

- tension lever, no longer available

1шт.

20

3055902R1

SCREW

- full load stop, no longer available

1шт.

21

625538C1

GASKET

- rear cover, no longer available

1шт.

22

1808819C1

BOLT (SPREADER)

BOLT - rear plate, upper

2шт.

23

1808729C1

PLATE ASSY.

PLATE - rear

1шт.

24

3055951R1

RING

GASKET - rear plate

1шт.

25

1808820C1

BOLT (SPREADER)

BOLT - rear plate, lower

2шт.

26

825-1406

NUT,M6, Cl 8

WASHER - high idle screw, hex, 6 mm - 1 (Replaces washer 933988R1)

1шт.

27

931113R1

SCREW,M6 x 25mm, Cl 4.8

- rear cover, no longer available

4шт.

29

439184C1

PLUG

- housing top, no longer available

1шт.

30

3055912R1

PLUG

- control shaft, no longer available

1шт.

31

1808723C1

LEVER

- tensioning

1шт.

32

625555C1

LEVER

- guide, no longer available

1шт.

33

691287C1

VALVE SPRING

SPRING - starting, no longer available

1шт.

34

691286C1

VALVE SPRING

SPRING - governor

1шт.

35

1808722C1

SHAFT

- governor control

1шт.

36

3055908R1

SCREW

- governor control, no longer available

1шт.

37

1808816C1

SCREW,M6 x 22mm

- bracket

2шт.

38

691278C1

BRACKET

- control rack

1шт.

39

439182C1

SCREW

- high idle

1шт.

40

3054873R1

SHIM

- 0.2 mm thick, no longer available

1шт.

40

3055894R1

SHIM

- 0.3 mm thick

1шт.

40

3055895R1

DISC

SHIM - 0.4 mm thick, no longer available

1шт.

40

3055896R1

WASHER

SHIM - 1.0 mm thick, no longer available

1шт.

41

625556C1

BEARING

- governor weight, no longer available

1шт.

42

3055889R1

NUT

- governor weight securing, no longer available

1шт.

43

625536C1

LOCK WASHER

WASHER - governor weight securing, no longer available

1шт.

44

1808716C1

WEIGHT

- governor, no longer available

1шт.

45

1808816C1

SCREW,M6 x 22mm

- governor housing

4шт.

46

691283C1

WASHER

- lock, governor housing

4шт.

47

836-3065

WOODRUFF KEY,M3 x 6.5

KEY - governor weight, plain Woodruff (Replaces key 3054301R1)

1шт.

48

691276C1

HOUSING

- governor

1шт.

49

691281C1

CYLINDER END CAP

CAP - high idle screw, no longer available

1шт.

50

825-1406

NUT,M6, Cl 8

WASHER - high idle stop screw, hex, 6 mm - 1 (Replaces washer 933988R1)

1шт.

51

691282C1

MAGNET

- governor housing

1шт.

52

670877C1

RIVET

- cap, lead, no longer available

1шт.

53

691277C1

GASKET

- governor housing

1шт.

54

1808817C1

BOLT (SPREADER)

BOLT - shut-off rear plate

1шт.

55

1806338C1

NUT

- shut-off rear plate

1шт.

56

492-11006

LOCK WASHER,#6

Washer, Lock, , Throttle lever (Replaces washer 933987R1) #6

1шт.

57

439181C1

ARM

- floating, no longer available

1шт.

58

3055903R92

LEVER

- floating, no longer available

1шт.

59

625547C1

PIN

BUSHING - lever, no longer available

1шт.

60

1808724C1

CIRCLIP

RING - lever snap

2шт.

61

625596C1

BRACKET

- spring holding, no longer available

1шт.

62

625593C1

VALVE SPRING

SPRING - 19.5 mm long, no longer available

1шт.

63

625594C1

VALVE SPRING

SPRING - 23.5 mm long, no longer available

1шт.

64

625595C1

VALVE SPRING

SPRING - 26.5 mm long, no longer available

1шт.

65

625592C1

SEAT

CAPSULE - spring, no longer available

1шт.

66

625549C1

SHAFT

- shut-off, no longer available

1шт.

67

691291C1

BUSHING

- shaft

1шт.

68

680187C1

O-RING,2.5mm Thk x 9mm ID

- sealing, special, shut-off shaft

1шт.

69

1808725C1

VALVE SPRING

SPRING - lever return

1шт.

70

691292C1

RETAINER

HOUSING - spring return

1шт.

71

1808726C1

LEVER

- shut-off

1шт.

72

492-11006

LOCK WASHER,#6

Washer, Lock, , Lever (Replaces washer 933987R1) #6

1шт.

73

628-6016

BOLT,Hex, M6 x 16mm, Cl 10.9, Full Thd

- lever retaining, hex, 6 - 1.0 x 16 mm, class 10.9 (Replaces bolt 1802055C1)

1шт.

74

680186C1

LEVER

- shut-off shaft spring, no longer available

1шт.

75

691305C1

AXLE PIN

PLUG - rear cover pin housing, no longer available

1шт.

76

691304C1

AXLE PIN

PIN - rear cover housing, no longer available

1шт.

77

631480C1

PLATE ASSY.

PLATE - governor name

1шт.

78

1806918C1

SCREW,Torx, M6 x 15mm

- governor housing

2шт.

79

1808719C1

SHIM

- 0.010 mm thick

1шт.

79

1808720C1

SHIM

- 0.025 mm thick

1шт.

79

1808721C1

SHIM

- 0.040 mm thick

1шт.
