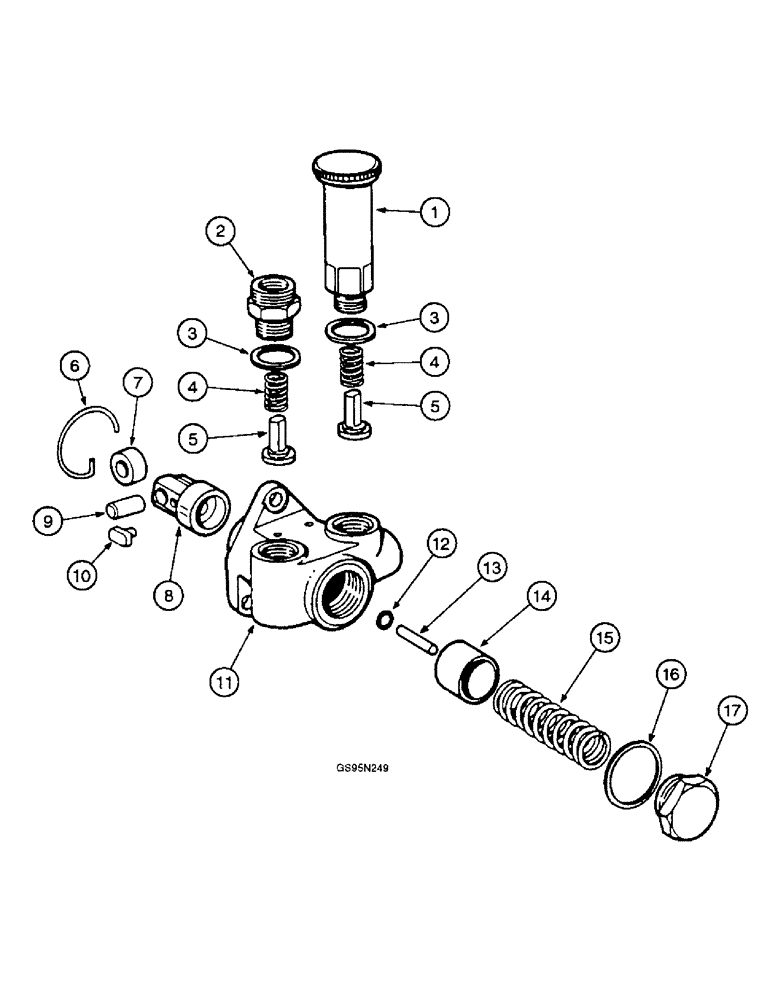

Запчасти Case IH DTI-466C (9E-086) - INJECTION PUMP FUEL SUPPLY PUMP

691054C91

PUMP

ASSEMBLY - fuel supply, Includes: Ref. 1 - 17

1шт.

1

684492C93

PUMP

- hand priming

1шт.

2

691306C1

FITTING

- housing

1шт.

3

625550C1

WASHER

GASKET - housing fitting

2шт.

4

760583R1

VALVE SPRING

SPRING - valve

2шт.

5

684726C1

LOCK VALVE

VALVE - pump

2шт.

6

684725C1

RING

- snap

1шт.

7

NSS

NOT SOLD SEPARAT

ROLLER - order tappet 1802159C1

1шт.

8

1802159C1

TAPPET

- roller and two slider, no longer used

1шт.

9

NSS

NOT SOLD SEPARAT

PIN - order tappet 1802159C1

1шт.

10

NSS

NOT SOLD SEPARAT

SLIDER - order tappet 1802159C1

2шт.

11

NSS

NOT SOLD SEPARAT

HOUSING - pump, order supply pump assembly 691054C91

1шт.

12

691272C1

GASKET

O-RING - pressure spindle

1шт.

13

NSS

NOT SOLD SEPARAT

SPINDLE - pressure, order supply pump assembly 691054C91

1шт.

14

NSS

NOT SOLD SEPARAT

PISTON - order supply pump assembly 691054C91

1шт.

15

691307C1

VALVE SPRING

SPRING - plunger return

1шт.

16

670882C1

GASKET

- screw plug

1шт.

17

691308C1

PLUG

- screw

1шт.
