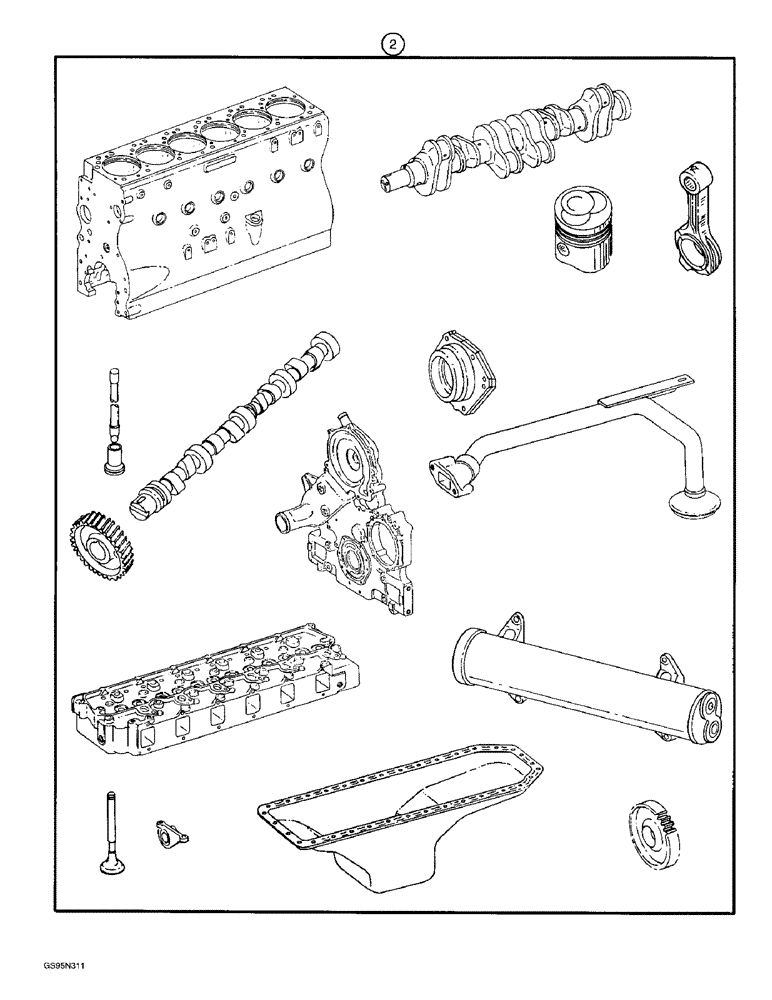

Запчасти Case IH DTI-466C (9E-038) - BASIC ENGINE

1800169C92

ENGINE

ENGINE - basic, DT-466C, used with 1844 cotton pickers, 215 HP, 2500 RPM, consists of all engine parts except alternator-generator, fan blades and belt, muffler and exhaust pipe, no longer available

1шт.

1800198C92

ENGINE, EXCHANGE

ENGINE (EXCHANGE) ENGINE - basic, DT-466B, used with 5288 all-wheel drive tractors, consists of all engine parts except alternator-generator, fan blades and belt, muffler and exhaust pipe, no longer available

1шт.

1801286C92

ENGINE ASSEMBLY

ENGINE ASSY ENGINE - basic, DT-466C, used with 1480 combines with engine serial number 44001 and after, 210 HP, 2500 RPM, consists of all engine parts except alternator-generator, fan blades and belt, muffler and exhaust pipe, no longer available

1шт.

1801287C92

ENGINE, EXCHANGE

ENGINE (EXCHANGE) ENGINE - basic, DT-466C, used with 1470 hillside combines with engine serial number 12001 and after, 210 HP, 2500 RPM, consists of all engine parts except alternator-generator, fan blades and belt, muffler and exhaust pipe, no longer available

1шт.

1801289C91

ENGINE, EXCHANGE

ENGINE (EXCHANGE) ENGINE - basic, DTI-466C, engine serial number 413724 and after

1шт.

Used with 5488 tractors with engine serial number 2696 and after, consists of all engine parts except alternator-generator, fan blades and belt, muffler and exhaust pipe, no longer available

1шт.

1801290C91

ENGINE ASSEMBLY

ENGINE ASSY ENGINE - basic, DTI-466C, engine serial number 411126 and after

1шт.

Used with 5488 all-wheel drive tractors with engine serial number 2468 and after, consists of all engine parts except alternator-generator, fan blades and belt, muffler and exhaust pipe, no longer available

1шт.

1801494C91

ENGINE, EXCHANGE

ENGINE (EXCHANGE) ENGINE - basic, DTI-466C, used with 7288 tractors, consists of all engine part except alternator-generator, fan blades and belt, muffler and exhaust pipe, no longer available, order skeleton engine 687203C95 and additional parts as needed

1шт.

1801496C91

ENGINE, EXCHANGE

ENGINE (EXCHANGE) ENGINE - basic, DTI-466C, used with 7488 tractors, consists of all engine parts except alternator-generator, fan blades and belt, muffler and exhaust pipe, no longer available, order skeleton engine 687203C95 and additional parts as needed

1шт.

1803376C93

ENGINE ASSEMBLY

ENGINE ASSY ENGINE - basic, DTI-466C, used with 1680 combines, 225 HP, 2500 RPM, consists of all engine parts except alternator-generator, fan blades and belt, muffler and exhaust pipe

1шт.

1803377C92

ENGINE

ENGINE - basic, D-466, used with 1822 cotton pickers, 150 HP, 2500 RPM, consists of all engine parts except alternator-generator, fan blades and belt, muffler and exhaust pipe

1шт.

84589327R

REMAN-BASIC ENGINE

Less Fuel System. D-466, used with 1822 cotton pickers, 150 HP, 2500 RPM, consists of all engine parts except alternator-generator, fan blades and belt, muffler and exhaust pipe

1шт.

84589327C

CORE-BASIC ENGINE

Return Number

1шт.

1806846C92

ENGINE ASSEMBLY

ENGINE ASSY ENGINE - basic, D-466, used with 1640 combines, 150 HP, 2500 RPM

1шт.

84589326R

REMAN-BASIC ENGINE

Less Fuel System. D-466, used with 1640 combines, 150 HP, 2500 RPM

1шт.

84589326C

CORE-BASIC ENGINE

Return Number

1шт.

1806847C92

ENGINE ASSEMBLY

ENGINE ASSY ENGINE - basic, DT-466B, used with 1600 combines, 180 HP, 2500 RPM, consists of all engine parts except alternator-generator, fan blades and belt, muffler and exhaust pipe, no longer available

1шт.

1928262C92

REMAN-BASIC ENGINE

Remanufactured Basic Engine

1шт.

1928263C92

CORE-ENGINE

Return Number

1шт.

Used with 4366 tractors and 4386 tractors with engine serial numbers prior to 77300, consists of: crankcase, crankshaft and gear, connecting rods and pistons, camshaft and gear, tappets, front plate, oil pump and inlet connections, cylinder head, valves, rocker arms and push rods, valve cover, front cover, oil pan, oil pressure regulator valve, oil cooler, injection pump gear, and idler gear (Replaces basic engine 749704C92)

1шт.

1928266C92

REMAN-BASIC ENGINE

Remanufactured Basic Engine

1шт.

1928263C92

CORE-ENGINE

Return Number - use this part number to return engine core for credit when using a remanufactured assembly

1шт.

Used with 3588, 3788, 6588, 6788, 7288, 7488 tractors and 4386 tractors with engine serial number 77300 and after, consists of: crankcase, crankshaft and gear, connecting rods and pistons, tappets, front plate, camshaft and gear, oil pump and inlet connections, cylinder head, valves, rocker arms and push rods, valve cover, front cover, oil pan, oil pressure regulator valve, oil cooler, injection pump gear, and idler gear (Replaces basic engines 749955C91 and 735022C91)

1шт.

1928268C92

REMAN-BASIC ENGINE

Remanufactured, DT-466B and DTI-466C engines

1шт.

1928269C92

CORE-BASIC ENGINE

Return Number - use this part number to return engine core for credit when using a remanufactured assembly

1шт.

Used with 5288 and 5488 tractors, 1480 rice combines, 1660 combines with engine serial numbers prior to 194973 and 1680 combines with engine serial numbers prior to 466776, consists of: crankcase, crankshaft and gear, connecting rods and pistons, tappets, front plate, camshaft and gear, oil pump and inlet connections, cylinder head, valves, rocker arms and push rods, valve cover, front cover, oil pan, oil pressure regulator valve, oil cooler, injection pump gear, and idler gear

1шт.

106835A2R

REMAN-BASIC ENGINE

Remanufactured Basic Engine

1шт.

106835A2C

CORE-BASIC ENGINE

Return Number - use this part number to return engine core for credit when using a remanufactured assembly

1шт.

Used with 1660 combines with engine serial number 194973 and after, 1670 and 1680 combines with engine serial number 466776 and after, consists of: crankcase, crankshaft and gear, connecting rods and pistons, tappets, front plate, camshaft and gear, oil pump and inlet connections, cylinder head, valves, rocker arms and push rods, valve cover, front cover, oil pan, oil pressure regulator valve, oil cooler, injection pump gear, and idler gear

1шт.

106834A2R

REMAN-BASIC ENGINE

ENGINE - basic, remanufactured, DT-466C and DTI-466C engines

1шт.

106834A2C

CORE-BASIC ENGINE

RETURN NUMBER - use this part number to return engine core for credit when using a remanufactured assembly

1шт.

Used with 1844 cotton pickers with engine serial number 194973 and after, consists of: crankcase, crankshaft and gear, connecting rods and pistons, tappets, front plate, camshaft and gear, oil pump and inlet connections, cylinder head, valves, rocker arms and push rods, valve cover, front cover, oil pan, oil pressure regulator valve, oil cooler, injection pump gear, and idler gear

1шт.
