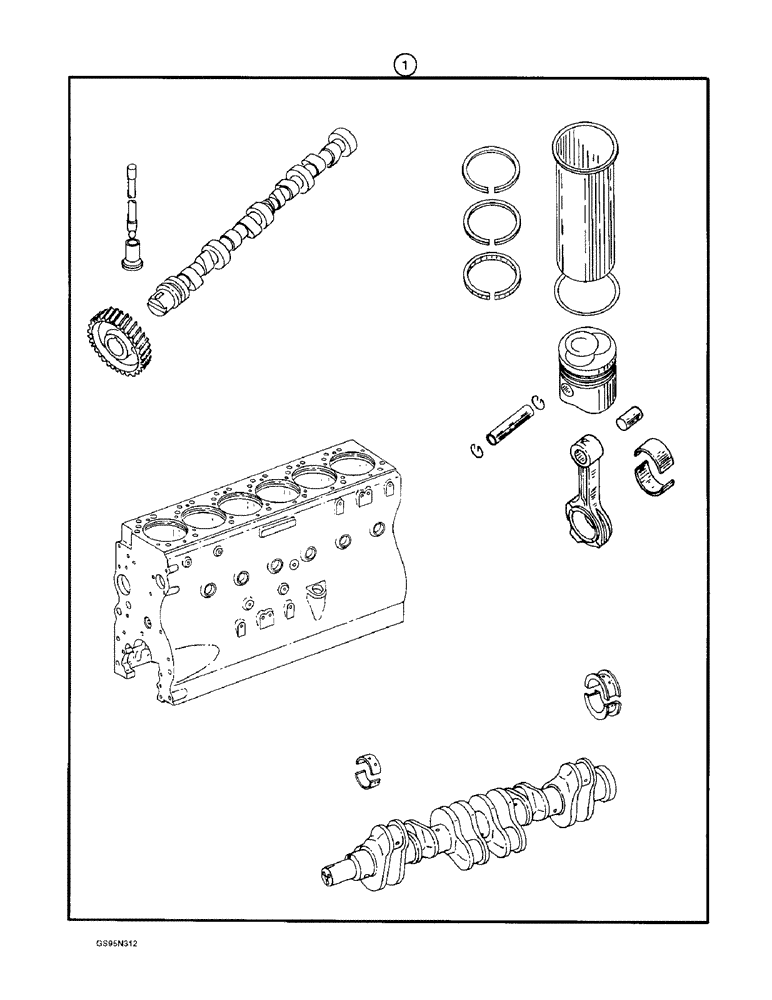

Запчасти Case IH DTI-466C (9E-036) - SHORT BLOCK ENGINE, BASIC ENGINE

1

674961C94

SKELETON ENGINE

ENGINE - block, short, D-466, used with 3488 tractors, consists of: camshaft, connecting rods and bearings, crankcase, crankshaft and bearings, sleeves, piston, pins, rings and valve tappets, no longer available, order components separately

1шт.

1

749616C92

REMAN-SHORT ENGINE

D-466 6 Cylinder Diesel Engine, 3488

1шт.

1

1928063C2

CORE-SHORT ENGINE

Return Part Number

1шт.

1

1928041C1

CORE-ENGINE

Return Part Number - use this part number to return pump core for credit when using a remanufactured assembly

1шт.

1

1928063C1

CORE-ENGINE

Return Part Number

1шт.

1

674962C95

SKELETON ENGINE

ENGINE - block, short, DT-466, no longer serviced, order components separately

1шт.

Also order crankcase ventilation kit 691109C94, see Figure 9E-42. DT-466 engines with serial numbers prior to 37653 also need to order crankcase ventilation kit 691109C91. DT-466B, DTI-466B, DT-466C and DTI-466C engines with serial numbers from 75000 to 76440 must also order crankcase ventilation kit 691109C91.

1шт.

Used with 4366 tractors, 4386 tractors with engine serial numbers prior to 77300, consists of: camshaft, connecting rods and bearings, crankcase, crankshaft and bearings, sleeves, pistions, pin and rings, and valve tappets

1шт.

1

749237C93

REMAN-SHORT ENGINE

Engine Short Block, Remanufactured for 674962C95

1шт.

1

1928041C2

CORE-SHORT ENGINE

Return Part Number

1шт.

1

735262C92

REMAN-SHORT ENGINE

Remanufactured for 687203C95, used with 5488 tractors with chassis serial number 2468 and after, 1844 cotton pickers prior to P.I.N. JJC002462, 1670 hillside combines and 1680 combines prior to P.I.N. JJC0045689

1шт.

1

1928033C1

CORE-ENGINE

Return Part Number

1шт.

1

687203C95

SKELETON ENGINE

BLOCK - short, DT-466B, DTI-466B, DT466C and DTI-466C, no longer available, order remanufactured block 749856C92

1шт.

Also order crankcase ventilation kit 691109C94, see Figure 9E-42. DT-466 engines with serial numbers prior to 37653 also need to order crankcase ventilation kit 691109C91. DT-466B, DTI-466B, DT-466C and DTI-466C engines with serial numbers from 75000 to 76440 must also order crankcase ventilation kit 691109C91.

1шт.

Used with all machines except 4366 and 3488 tractors, also 4386 tractors with engine serial number 77300 and after, consists of: camshaft, connecting rods and bearings, crankcase, crankshaft and bearings, sleeves, pistons, pins and rings, and valve tappets

1шт.

1

749856C92

ENGINE, EXCHANGE

Remanufactured for 687203C95

1шт.

1

735262C92

REMAN-SHORT ENGINE

Remanufactured Engine (Exchange)Remanufactured Engine (Exchange)

1шт.

1

1928065C2

CORE-ENGINE

Return Part Number

1шт.

1

1928065C1

CORE-ENGINE

Return Part Number

1шт.

690812C92

ENGINE ASSEMBLY

ENGINE ASSY ENGINE - basic, DT-466B, used with 3588 and 6588 tractors, consists of all engine parts except alternator-generator, fan belt, fan blade, muffler and exhaust pipe, no longer available

1шт.

689383C92

ENGINE ASSEMBLY

ENGINE ASSY ENGINE - basic, DT-466B, used with 3788 and 6788 tractors, consists of all engine parts except alternator-generator, fan belt, fan blade, muffler and exhaust pipe, no longer available

1шт.

691689C91

SPARE PART ENGINE - basic, D-466, used with 3488 tractors, consists of all engine parts except alternator-generator, fan blades and belt, muffler and exhaust pipe, no longer available

1шт.

690834C91

ENGINE ASSEMBLY

ENGINE ASSY ENGINE - basic, DT-466B, used with 5288 tractors, consists of all engine parts except alternator-generator, fan blades and belt, muffler and exhaust pipe, no longer available

1шт.
