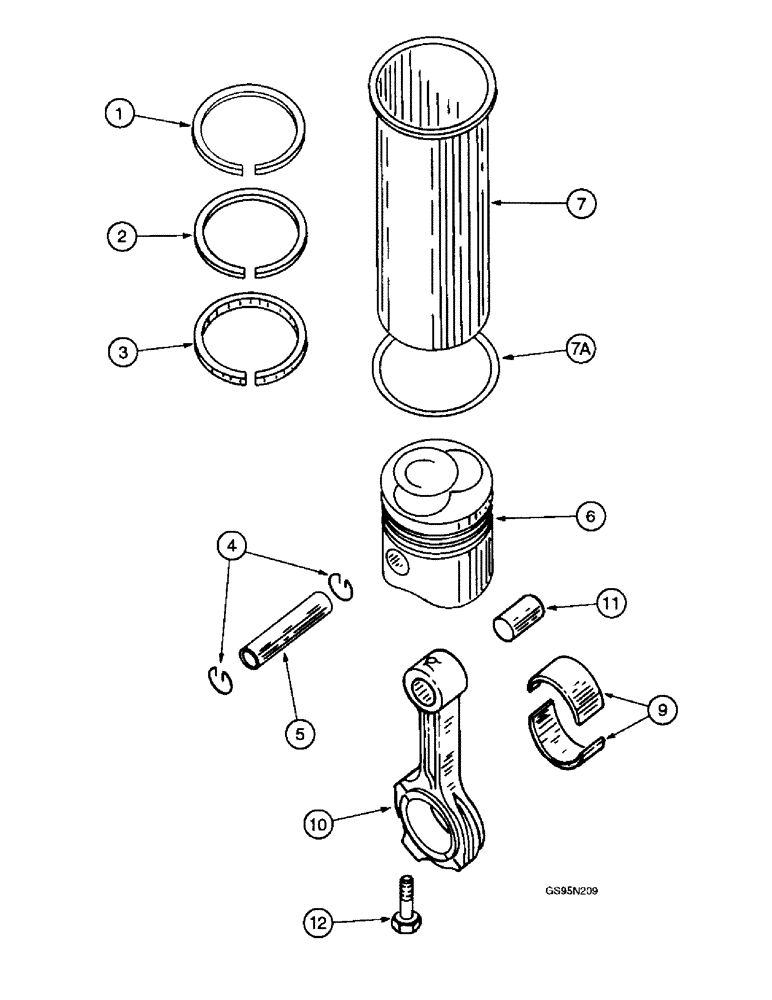

Запчасти Case IH DTI-466C (9E-026) - CONNECTING RODS, PISTONS AND SLEEVES
№
Артикул
Название
Примечание
Количество
684290C92
KIT
CYLINDER ASSEMBLY - includes piston, used with 4366 tractors and 4386 tractors with engine serial numbers prior to 38434, no longer used, order cylinder assembly 1802580C92 and piston ring kit 1346908C91, Includes: Ref. 1 - 7B
6шт.
1802580C93
PACKAGE
CYLINDER ASSEMBLY - includes piston, used with 4386 tractors with engine serial numbers 38434 through 77299, includes NS piston 684255C3 (See Note) (Replaces cylinder assembly 687432C91), Includes: Ref. 1 - 7B
6шт.
1802581C96
PACKAGE
CYLINDER ASSEMBLY - includes piston, (Replaces cylinder assembly 687433C95), Includes: Ref. 4 - 7B
6шт.
Used with 4386 tractors with engine serial number 77300 and after, 3588, 3788, 5288, 5488, 6588, 6788, 7288 and 7488 tractors, 1480 combines and 1470 hillside combines.
1шт.
1802761C93
KIT
CYLINDER ASSEMBLY - includes piston, used with 3488 tractors, no longer available, order ring kit 1346907C91 and piston (Replaces cylinder assembly 671509C91), Includes: Ref. 1 - 7B
6шт.
687433C95
PACKAGE
CYLINDER ASSEMBLY - includes piston, no longer available, order cylinder assembly 1802581C96 above, Includes: Ref. 1 - 7B
6шт.
1802761C93
KIT
CYLINDER ASSEMBLY - includes piston, used with 1640 combines and 1822 cotton pickers, Includes: Ref. 1 - 7B
6шт.
1346908C91
SET
KIT - piston ring, full keystone top ring, narrow gap, used with cylinder assembly 684290C92 (Replaces kits 684269C91 and 684256C91), Includes: Ref. 1 - 3
1шт.
1346906C91
PISTON RING SET
KIT - piston ring, full keystone top ring, wide gap, used with cylinder assemblies 1802581C96 and 687433C95 (Replaces kit 687429C92), Includes: Ref. 1 - 3
1шт.
1346907C91
RING, PISTON
KIT - piston ring, full keystone top ring, wide gap, used with cylinder assembly 1802761C91 (Replaces kit 684065C92), Includes: Ref. 1 - 3
1шт.
1
NSS
NOT SOLD SEPARAT
RING - compression piston, top or first groove, order kit
1шт.
2
NSS
NOT SOLD SEPARAT
RING - compression piston, second groove, order kit
1шт.
3
NSS
NOT SOLD SEPARAT
RING - oil piston, third or bottom groove, order kit
1шт.
4
326874R1
RETAINER
RING - piston pin retaining
2шт.
5
670675C1
PISTON PIN,41.27mm OD x 89.15mm L
PIN - piston
1шт.
6
NSS
NOT SOLD SEPARAT
PISTON - order cylinder assembly
1шт.
7
A77692
SLEEVE CYLINDER
SLEEVE - cylinder (Replaces sleeve 682720C1)
1шт.
7a
NSS
NOT SOLD SEPARAT
O-RING - cylinder sleeve, order kit 680086C1
1шт.
680333C92
SHIM KIT
KIT - cylinder sleeve shim, Includes: Shims Listed Below
1шт.
NSS
NOT SOLD SEPARAT
SHIM - cylinder sleeve, 0.002 inch, order kit 680333C92
2шт.
NSS
NOT SOLD SEPARAT
SHIM - cylinder sleeve, 0.004 inch, order kit 680333C92
2шт.
NSS
NOT SOLD SEPARAT
SHIM - cylinder sleeve, 0.010 inch, order kit 680333C92
1шт.
NSS
NOT SOLD SEPARAT
SHIM - cylinder sleeve, 0.020 inch, order kit 680333C92
1шт.
NSS
NOT SOLD SEPARAT
SHIM - cylinder sleeve, 0.032 inch, order kit 680333C92
2шт.
9
681314C3
BEARING SET
BEARING - connecting rod, two halves, standard
6шт.
FOR DIFF IN 1808059C92/681314C3 ROD BRGS, SEE BLTN S-4936. 12/5/01 BW CAM
1шт.
Used with crankshafts stamped with casting numbers 675591C1 and 675591C2, which use narrow bearings.
1шт.
9
681315C3
BEARING SET
- connecting rod, two halves, 0.010 inch undersize
6шт.
Used with crankshafts stamped with casting numbers 675591C1 and 675591C2, which use narrow bearings.
1шт.
9
687382C3
BEARING SET
- connecting rod, two halves, 0.020 inch undersize
6шт.
Used with crankshafts stamped with casting numbers 675591C1 and 675591C2, which use narrow bearings.
1шт.
9
681316C3
BEARING SET
- connecting rod, two halves, 0.030 inch undersize
6шт.
Used with crankshafts stamped with casting numbers 675591C1 and 675591C2, which use narrow bearings.
1шт.
9
1808059C92
BEARING SET,77.74mm ID x 82.8mm OD x 32mm W
BEARING - connecting rod, two halves, standard
6шт.
FOR DIFF IN 1808059C92/681314C3 ROD BRGS, SEE BLTN S-4936. 12/5/01 BW CAM
1шт.
Used with crankshafts stamped with casting numbers 675591C3, which uses wide bearings.
1шт.
9
1808060C91
BEARING LINER
BEARING - connecting rod, two halves, 0.010 inch undersize
6шт.
Used with crankshafts stamped with casting numbers 675591C3, which uses wide bearings.
1шт.
9
1808061C92
BEARING SET,82.80mm OD x 32 mm
BEARING - connecting rod, two halves, 0.020 inch undersize
6шт.
Used with crankshafts stamped with casting numbers 675591C3, which uses wide bearings.
1шт.
9
1808062C91
BEARING LINER
BEARING - connecting rod, two halves, 0.030 inch undersize
6шт.
Used with crankshafts stamped with casting numbers 675591C3, which uses wide bearings.
1шт.
10
688923C91
ROD, CONNECTING
ROD ASSEMBLY - connecting, new (Replaces rod assembly 675640C91), Includes: Ref. 11 & 12
6шт.
10
735242C91
REMAN-CONNECTING ROD
Rod Assembly - connecting, remanufactured for rod assembly 688923C91, component parts shown on this page do not apply to the remanufactured assembly
6шт.
10
1928155C1
CORE-ROD CONNECTING
Return Part Number - use this part number to return rod core for credit when using a remanufactured assembly
6шт.
11
675006C1
BUSHING
- piston pin
1шт.
12
676679C2
BOLT
- connecting rod
2шт.
Выбрано товаров: 48
