Запчасти Case IH DTI-466B (9E-180) - INTAKE AND EXHAUST MANIFOLD

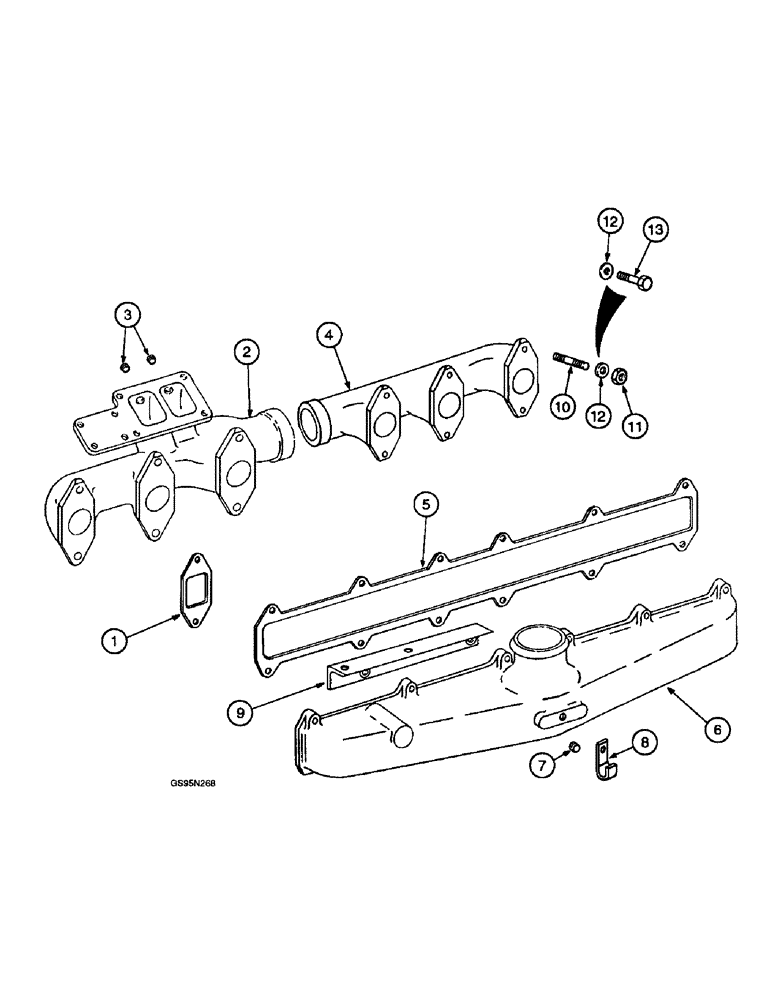

Схема запчастей Case IH DTI-466B - (9E-180) - INTAKE AND EXHAUST MANIFOLD
12
9
8
1
13
7
12
2
11
6
5
4
3
10

Артикул

Название

Примечание

Количество

1

1349062C1

MANIFOLD GASKET

- exhaust manifold (Replaces gasket 688928C1)

6шт.

2

683564C91

MANIFOLD

- exhaust front, used with 1470, 1480, 1660, and 1680 combines, no longer used, order manifold 683562C1

1шт.

There is not gasket between Ref. 2 and Ref. 4 manifolds. It is metal-to-metal. (per Marv H) SMA11/6/98

1шт.

2

675778C2

MANIFOLD

- exhaust front, used with 1640 combines, 1822 cotton pickers and 3488 tractors

1шт.

There is not gasket between Ref. 2 and Ref. 4 manifolds. It is metal-to-metal. (per Marv H) SMA11/6/98

1шт.

2

691595C91

MANIFOLD

- exhaust front, used with 1844 cotton pickers, 5288 and 5488 tractors

1шт.

There is not gasket between Ref. 2 and Ref. 4 manifolds. It is metal-to-metal. (per Marv H) SMA11/6/98

1шт.

2

683562C1

MANIFOLD

- exhaust front (Replaces manifold 683564C91)

1шт.

There is not gasket between Ref. 2 and Ref. 4 manifolds. It is metal-to-metal. (per Marv H) SMA11/6/98

1шт.

If dealer has casting 672275C3, he will need to order 683562C1 and (2) 217-430. This is for a 7488 tractor.

1шт.

217-430

PLUG,Hex Soc, 1/8" - 27 NPTF

- hex socket, 1/8 inch PT

2шт.

3

217-84

PLUG,Hex Hd, 1/8"-27, Brass

- hex, 1/8 inch PT, two used with all machines except 1640 combines and 1822 cotton pickers (Replaces plug 444614)

1шт.

4

675779C3

MANIFOLD

- exhaust rear

1шт.

There is not gasket between Ref. 2 and Ref. 4 manifolds. It is metal-to-metal. (per Marv H) SMA11/6/98

1шт.

5

1342839C1

MANIFOLD GASKET

- intake manifold (Replaces gasket 682199C1)

1шт.

6

675633C92

MANIFOLD

- intake, used with 1470 hillside and 1480 combines with engine serial numbers prior to 146120; 3588, 3788, 4366, 6588 and 6788 tractors with engine serial numbers prior to 146120; and all 3488 tractors

1шт.

For 1680 combine intake manifolds, see Figure 9E-162

1шт.

6

691161C91

MANIFOLD

- intake, used with 1844 cotton pickers, 1470 hillside and 1480 combines with engine serial number 146120 and after; 3588, 3788, 6588 and 6788 tractors with engine serial number 146120 and after

1шт.

For 1680 combine intake manifolds, see Figure 9E-162

1шт.

6

691935C91

MANIFOLD

- intake, used with 1660 combines and 5288 tractors

1шт.

For 1680 combine intake manifolds, see Figure 9E-162

1шт.

310-1520

BOLT,Hex, 5/16" - 18 x 1-1/4", Gr 8

- hex, 5/16 NC x 1-1/4 inch, twelve used with 1640 and 1660 combines, eleven used with all other machines (Replaces bolt 26679R1)

1шт.

For 1844 cotton pickers, 1470 hillside combines and 1480 combines, also order stud-bolt and hardware.

1шт.

396-21034

WASHER,8.74mm ID x 17.48mm OD x 2.26mm Thk

- flat, 11/32 x 11/16 x 3/32 inch, hardened, twelve used with 1640 and 1660 combines, eleven used with all other machines (Replaces washer 27326R1)

1шт.

For 1844 cotton pickers, 1470 hillside combines and 1480 combines, also order stud-bolt and hardware.

1шт.

7

217-433

PLUG,Hex Soc, 1/4" - 18 NPTF

- square, 1/4 inch PT (Replaces plug 444576)

1шт.

8

1808311C1

CLIP

- cable, used with 1822 cotton pickers

1шт.

689324C1

STUD,Stud, 5/16" - 24 - 5/16" - 18 x 2.30"

BOLT - special, stud

1шт.

For 1844 cotton pickers, 1470 hillside combines and 1480 combines, also order stud-bolt and hardware.

1шт.

700121908

SPACER

- pipe, 1/4 inch (Replaces spacer 86224H)

1шт.

For 1844 cotton pickers, 1470 hillside combines and 1480 combines, also order stud-bolt and hardware.

1шт.

396-21034

WASHER,8.74mm ID x 17.48mm OD x 2.26mm Thk

- flat, 11/32 x 11/16 x 3/32 inch, hardened (Replaces washer 27326R1)

1шт.

For 1844 cotton pickers, 1470 hillside combines and 1480 combines, also order stud-bolt and hardware.

1шт.

392-11031

LOCK WASHER,5/16"

(Replaces washer 116120) 5/16"

1шт.

For 1844 cotton pickers, 1470 hillside combines and 1480 combines, also order stud-bolt and hardware.

1шт.

329-115

NUT,5/16"-24, G8

(Replaces nut 25521R1) 5/16"-24, G8

1шт.

For 1844 cotton pickers, 1470 hillside combines and 1480 combines, also order stud-bolt and hardware.

1шт.

9

680586C2

SUPPORT

- ether start, not used with 1470 hillside or 1480 combines; 3788, 4386 and 6788 tractors

1шт.

10

682840C1

STUD

- exhaust manifold

12шт.

11

682987C1

NUT

- special, front and rear exhaust

12шт.

12

684034C1

WASHER,11.91mm ID x 21.34mm OD x 3.17mm Thk

- special, front and rear exhaust

12шт.

13

1809774C1

STUD,Hex, 7/16" - 14 x 1.50"

BOLT - hex prevailing torque, 7/16 NC x 1-1/2 inch

12шт.

Выбрано товаров: 42
