Запчасти Case IH DTI-466B (9E-176) - TURBOCHARGER AND CONNECTIONS

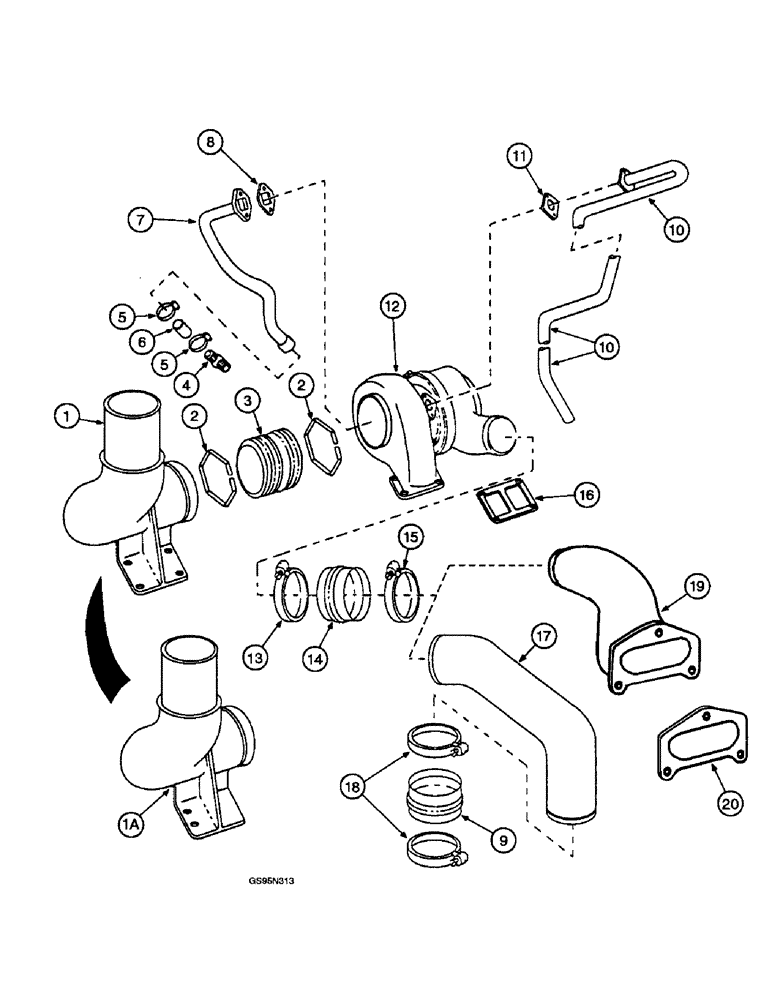

Схема запчастей Case IH DTI-466B - (9E-176) - TURBOCHARGER AND CONNECTIONS
6
18
16
19
2
14
3
10
1
5
4
5
20
8
12
15
2
11
7
9
1a
13
10
17

Артикул

Название

Примечание

Количество

1

675316C3

ELBOW

- turbocharger exhaust, used with all machines except 3588, 3788, 6588, 6788, 7288 and 7488 tractors, 1470 combines with engine serial numbers prior to 450651 and 1480 combines with engine serial numbers prior to 452138, if used

1шт.

1a

1275892C1

MUFFLER

PIPE - turbocharger exhaust, if used

1шт.

329-106

NUT,3/8"-16, G8

(Replaces nut 25522R1) 3/8"-16, G8

4шт.

326-624

BOLT,Hex, 3/8" - 16 x 1-1/2", Gr 8

(Replaces bolt 24841R1) Hex, 3/8"-16 x 1 1/2", G8

4шт.

396-21041

WASHER,10.31mm ID x 20.63mm OD x 2.26mm Thk

- flat, 13/32 x 13/16 x 3/32 inch, hardened

4шт.

2

702299C1

ASSEMBLY

SEAL - seal, used with all machines except 3588, 3788, 6588, 6788, 7288 and 7488 tractors

2шт.

3

675317C2

SLEEVE

- turbocharger exhaust, used with all machines except 3588, 3788, 6588, 6788, 7288 and 7488 tractors

1шт.

4

673622C1

ELBOW

- turbocharger oil drain

1шт.

5

214-1412

HOSE CLAMP,#12, 0.69" - 1.25", Type F Worm

Adj - Turbocharger oil drain (Replaces clamp 995218R1) #12, 0.69/1.25 Type F Worm

2шт.

6

675859C2

HOSE,22.35mm ID x 66.04mm L

Turbocharger Oil Drain

1шт.

7

675781C2

TUBE

- turbocharger oil drain, used with all machines except 1844 cotton pickers

1шт.

7

691620C91

TUBE,12.7, 2.4" Length

- turbocharger oil drain, used with 1844 cotton pickers

1шт.

132112H1

CLAMP,9/16", 3/8" Bolt

- closed, upper part of turbocharger oil inlet tube, used with 1844 cotton picker, no longer available

1шт.

1806409C1

TUBE,0.36" ID, 0.59" OD

CUSHION - tube

1шт.

326-516

BOLT,Hex, 5/16" - 18 x 1", Gr 8

(Replaces bolt 25493R1) Hex, 5/16"-18 x 1", G8, Full Thd

1шт.

329-105

NUT,5/16"-18, G8

1шт.

392-11031

LOCK WASHER,5/16"

5/16"

1шт.

396-21034

WASHER,8.74mm ID x 17.48mm OD x 2.26mm Thk

- flat, 11/32 x 11/16 x 3/32 inch, hardened

2шт.

326-616

BOLT,Hex, 3/8" - 16 x 1", Gr 8

(Replaces bolt 24840R1) Hex, 3/8"-16 x 1", G8, Full Thd

2шт.

396-21041

WASHER,10.31mm ID x 20.63mm OD x 2.26mm Thk

- flat, 13/32 x 13/16 x 3/32 inch, hardened

2шт.

8

1342835C1

GASKET

- turbocharger oil drain tube (Replaces gasket 687903C1)

1шт.

9

675724C2

HOSE,3.21" ID x 2.75", SAE J200

Air Outlet Pipe, Engine Serial Numbers prior to 146120 3.21" ID x 2.75", SAE J200

1шт.

This part is not used on intercooler equipped engines. See Figures 9E-150 - 9E-162 for intercooler components.

1шт.

9

310385R2

INTAKE AIR HOSE,2.21" ID x 3.00", SAE J200

- Turbocharger Air Outlet Pipe, Engine serial number 146120 and after 2.21" ID x 3.00", SAE J200

1шт.

This part is not used on intercooler equipped engines. See Figures 9E-150 - 9E-162 for intercooler components.

1шт.

10

675783C94

TUBE,0.375" OD, 31" Length

ASSEMBLY - turbocharger oil inlet, used with 4366 tractors, 4386 tractors with engine serial numbers prior to 38434

1шт.

10

690404C91

TUBE,0.375" OD

ASSEMBLY - turbocharger oil inlet, used with 4386 tractors with engine serial number 38434 and after, 3588 and 6588 tractors, 3788 and 6788 tractors, 1480 combines 1470 hillside combines, 7288 and 7488 tractors, Includes: Ref. 10A & 10B

1шт.

10

1806770C91

TUBE,0.375" OD

ASSEMBLY - turbocharger oil inlet, used with 1844 cotton picker, Includes: Ref. 10A & 10B

1шт.

10a

222-104

SLEEVE,3/8" Tube

- tube, 3/8 inch OD (Replaces sleeve 265204R1), not illustrated

1шт.

10b

222-114

NUT,5/8"-24

NUT - hex, 3/8 inch OD x 5/8 inch (Replaces nut 265205R1), not illustrated

1шт.

326-516

BOLT,Hex, 5/16" - 18 x 1", Gr 8

2шт.

396-21034

WASHER,8.74mm ID x 17.48mm OD x 2.26mm Thk

- flat, 11/32 x 11/16 x 3/32 inch, hardened (Replaces washer 27326R1)

2шт.

11

1342834C1

GASKET

- turbocharger oil inlet tube (Replaces gasket 253660R1)

1шт.

12

REF

INSTRUCTION

TURBOCHARGER ASSEMBLY - parts list pages 9E-172

1шт.

232-4136

LOCK NUT,3/8"-16, GC

NUT, LOCK, (Replaces nut 676524C1) 3/8"-16, GC

4шт.

113-2234

BOLT,Hex, 3/8" - 16 x 1-1/2", SST

- hex, 3/8 NC x 1-1/2 inch (Replaces bolt 22737R1)

4шт.

13

687456C1

CLAMP

- turbocharger air outlet pipe hose

1шт.

This part is not used on intercooler equipped engines. See Figures 9E-150 - 9E-162 for intercooler components.

1шт.

14

675723C2

HOSE,1.96" ID, 2.21" ID x 2.50", SAE J200

Turbocharger Air Outlet Pipe 1.96" ID, 2.21" ID x 2.50", SAE J200

1шт.

This part is not used on intercooler equipped engines. See Figures 9E-150 - 9E-162 for intercooler components.

1шт.

15

687456C1

CLAMP

- turbocharger air outlet pipe hose

1шт.

This part is not used on intercooler equipped engines. See pages 9E-151 - 9E-163 for intercooler components.

1шт.

16

1342826C1

GASKET

- turbocharger (Replaces gasket 670073C1)

1шт.

17

676165C2

TUBE

PIPE - turbocharger air outlet, engine serial numbers prior to 146120, used with 3488, 3588, 3788, 4366, 4386, 6588 and 6788 tractors, also order plug 217-504

1шт.

17

691178C91

PIPE

- turbocharger air outlet, steel, used with 1470, 1480 and 1660 combines, also order plug 217-504

1шт.

17

1800178C91

PIPE

- turbocharger air outlet, steel, used with 1844 cotton picker, also order plug 217-504

1шт.

217-433

PLUG,Hex Soc, 1/4" - 18 NPTF

- square, 1/4 inch PT (Replaces plug 444576)

1шт.

18

687457C1

CLAMP

- air outlet pipe, engine serial numbers, Serial Range: prior-146120

2шт.

This part is not used on intercooler equipped engines. See pages 9E-151 - 9E-163 for intercooler components.

1шт.

18

687456C1

CLAMP

- air outlet pipe, engine serial number 146120 and after

2шт.

This part is not used on intercooler equipped engines. See pages 9E-151 - 9E-163 for intercooler components.

1шт.

19

686148C1

FITTING

ELBOW - turbocharger air outlet, intercooler front inlet, aluminum, used with 1680 combines

1шт.

326-544

BOLT,Hex, 5/16" - 18 x 2-3/4", Gr 8

1шт.

326-524

BOLT,Hex, 5/16" - 18 x 1-1/2", Gr 8

2шт.

396-21034

WASHER,8.74mm ID x 17.48mm OD x 2.26mm Thk

- flat, 11/32 x 11/16 x 3/32 inch, hardened

3шт.

217-433

PLUG,Hex Soc, 1/4" - 18 NPTF

1шт.

20

1342838C1

GASKET

- intercooler inlet elbow, used with 1680 combines (Replaces gasket 686181C1)

1шт.

22

1806190C1

BRACKET

- turbocharger oil inlet tube upper clamp, used with 1844 cotton pickers, not shown

1шт.

329-115

NUT,5/16"-24, G8

(Replaces nut 25521R1) 5/16"-24, G8

1шт.

392-11031

LOCK WASHER,5/16"

(Replaces washer 116120) 5/16"

1шт.

23

1806481C1

CLAMP

- closed, lower part of turbocharger oil inlet tube, used with 1844 cotton pickers, not shown

1шт.

326-516

BOLT,Hex, 5/16" - 18 x 1", Gr 8

(Replaces bolt 25493R1) Hex, 5/16"-18 x 1", G8, Full Thd

1шт.

326-520

BOLT,Hex, 5/16" - 18 x 1-1/4", Gr 8

(Replaces bolt 25751R1) Hex, 5/16"-18 x 1 1/4", G8

1шт.

396-21041

WASHER,10.31mm ID x 20.63mm OD x 2.26mm Thk

- flat, 13/32 x 13/16 x 3/32 inch, hardened

2шт.

392-11031

LOCK WASHER,5/16"

(Replaces washer 116120) 5/16"

2шт.

Выбрано товаров: 65
