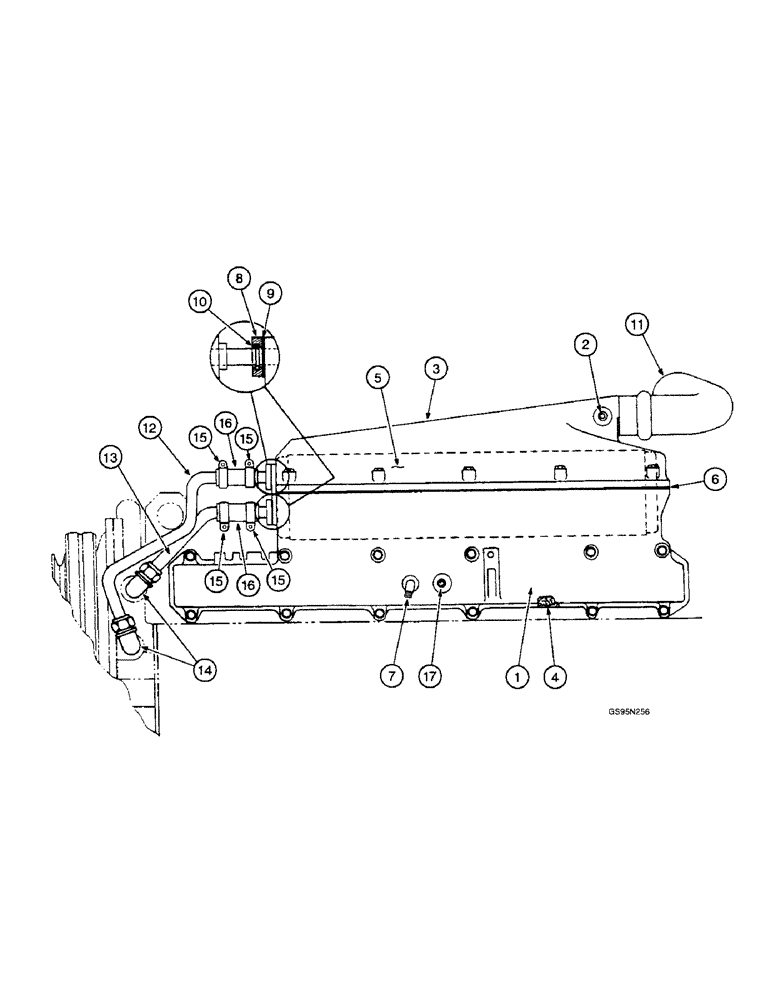

Запчасти Case IH DTI-466B (9E-158) - INTERCOOLER AND CONNECTIONS, 5488 TRACTORS

1

1802179C1

HOUSING

- intercooler

1шт.

28565R1

BOLT,Hex, 5/16" - 18 x 3 3/4", Gr 8

- hex, 5/16 NC x 3-3/4 inch, grade 8

5шт.

26680R1

BOLT,Hex, 5/16" - 18 x 1 1/2", Gr 8

- hex, 5/16 NC x 1-1/2 inch, grade 8, five for two-wheel drive tractors, seven for all-wheel drive tractors

1шт.

396-21034

WASHER,8.74mm ID x 17.48mm OD x 2.26mm Thk

- flat, 11/32 x 11/16 x 3/32 inch, hardened, use one per bolt 26680R1 (Replaces washer 27326R1)

1шт.

2

217-433

PLUG,Hex Soc, 1/4" - 18 NPTF

- square, 1/4 inch PT (Replaces plug 444576)

1шт.

3

1800200C91

COVER

- intercooler housing, also order plug 217-504, item 2

1шт.

326-528

BOLT,Hex, 5/16" - 18 x 1-3/4", Gr 8

10шт.

396-21034

WASHER,8.74mm ID x 17.48mm OD x 2.26mm Thk

- flat, 11/32 x 11/16 x 3/32 inch, hardened (Replaces washer 27326R1)

10шт.

4

1342839C1

MANIFOLD GASKET

- intake manifold (Replaces gasket 682199C1)

1шт.

5

686210C91

COOLER

INTERCOOLER - engine

1шт.

326-516

BOLT,Hex, 5/16" - 18 x 1", Gr 8

8шт.

684496C1

WASHER

- flat, 5/16 inch, hardened

8шт.

6

686142C2

GASKET

- cover, intercooler

1шт.

7

319615R1

ELBOW

- male, 1/8 inch x 90 degree, located in intercooler housing

1шт.

8

686146C1

FLANGE

- intercooler water

2шт.

326-516

BOLT,Hex, 5/16" - 18 x 1", Gr 8

4шт.

396-21034

WASHER,8.74mm ID x 17.48mm OD x 2.26mm Thk

- flat, 11/32 x 11/16 x 3/32 inch, hardened (Replaces washer 27326R1)

4шт.

9

686145C2

GASKET

- intercooler water flange

2шт.

10

238-5114

O-RING,0.103" Thk x 0.612" ID, -114, Cl 5, 75 Duro

(Replaces O-ring 350429R1) -114, 70 Duro, .612" ID x .103" Thk

2шт.

11

1802057C1

PIPE

- tubocharger air outlet to intercooler inlet

1шт.

12

691859C91

TUBE

ASSEMBLY - intercooler inlet, Includes: Ref. 12A & 12B

1шт.

12a

222-106

SLEEVE,5/8" Tube

- rubber, 5/8 inch tube OD, not illustrated

1шт.

12b

238-5114

O-RING,0.103" Thk x 0.612" ID, -114, Cl 5, 75 Duro

Not illustrated -114, 70 Duro, .612" ID x .103" Thk

1шт.

13

691863C91

TUBE

ASSEMBLY - intercooler outlet, Includes: Ref. 13A & 13B

1шт.

13a

222-106

SLEEVE,5/8" Tube

- rubber, 5/8 inch tube OD, not illustrated

1шт.

13b

238-5114

O-RING,0.103" Thk x 0.612" ID, -114, Cl 5, 75 Duro

Not illustrated -114, 70 Duro, .612" ID x .103" Thk

1шт.

14

872442R1

ELBOW

- 90 degree flex, 1/2 NPT x 5/8 inch OD

2шт.

15

279165R1

TUBE

HOSE - tube, 2-3/8 inch (7 mm) long, cut from bulk hose 364359C1 below

2шт.

16

214-1412

HOSE CLAMP,#12, 0.69" - 1.25", Type F Worm

Adj (Replaces clamp 27702R1) #12, 0.69/1.25 Type F Worm

4шт.

17

221-841

PLUG

- hex socket, 1/4 inch PT, in intercooler housing (Replaces plug 20988R1)

1шт.

364359C1

HOSE

- bulk, 50 foot (15240 mm) long

1шт.
