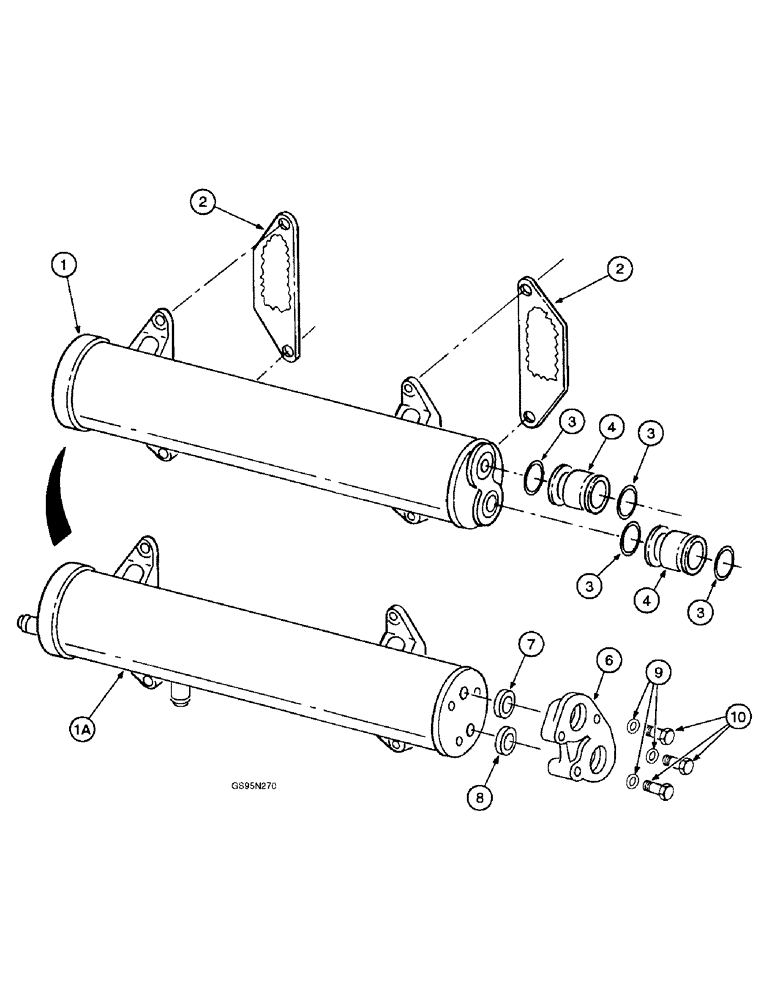

Запчасти Case IH DTI-466B (9E-146) - OIL COOLER AND CONNECTIONS

1

690884C2

COOLER

COOLER - oil, no longer used, order kit 1815568C91 below

1шт.

1a

1810171C2

COOLER, OIL

COOLER - oil

1шт.

735260C92

REMAN-OIL COOLER

Reman for New PN 690884C2

1шт.

1938223C1

CORE-OIL COOLER

Return Number

1шт.

26311R1

BOLT,Hex, 3/8" - 16 x 1 1/4", Gr 8

BOLT - hex prevailing torque, 3/8 NC x 1-1/8 inch, grade 8, two used with 3488 tractors

2шт.

26311R1

BOLT,Hex, 3/8" - 16 x 1 1/4", Gr 8

BOLT - hex prevailing torque, 3/8 NC x 1-1/8 inch, grade 8, three used with all machines except 3488 tractors with engine serial numbers 149944 and after

3шт.

26311R1

BOLT,Hex, 3/8" - 16 x 1 1/4", Gr 8

BOLT - hex prevailing torque, 3/8 NC x 1-1/8 inch, grade 8, four used with all machines except 3488 tractors with engine serial numbers prior to 149944

4шт.

492-11038

LOCK WASHER,3/8"

LOCK WASHER, (Replaces washer 115093) 3/8"

4шт.

396-21041

WASHER,10.31mm ID x 20.63mm OD x 2.26mm Thk

WASHER - flat, 13/32 x 13/16 x 3/32 inch, hardened

4шт.

690206C1

STUD,3/8" - 24 x 2 1/4", Grade 8

STUD - 3/8 NC x 3/8 inch, front and rear upper, two used with 3488 tractors, one used with engine serial number 149944 and after except on 3488 tractors

1-2шт.

329-116

NUT,3/8"-24, G8

NUT, (Replaces nut 25523R1) 3/8"-24, G8

1шт.

2

675513C1

OIL SEAL

SEAL - oil cooler mounting

2шт.

3

238-5218

O-RING,0.139" Thk x 1.234" ID, -218, Cl 5, 75 Duro

O-RING, (Replaces O-ring 252483R1) -218, 70 Duro, 1.234" ID x .139" Thk

4шт.

4

677110C1

PIPE FITTING

TUBE - cooler to front cover

2шт.

5

527434R1

CLIP

SPARE PART CLIP - cable harness, used with 3488, 5288 and 5488 tractors, 1640 combines, not shown

2шт.

5

245522C1

CLIP

CLIP - harness, used with 7288 and 7488 tractors, not shown, no longer available

2шт.

396-21041

WASHER,10.31mm ID x 20.63mm OD x 2.26mm Thk

WASHER - flat, 13/32 x 13/16 x 3/32 inch, hardened

2шт.

492-11038

LOCK WASHER,3/8"

LOCK WASHER, (Replaces washer 115093) 3/8"

2шт.

329-116

NUT,3/8"-24, G8

NUT, (Replaces nut 25523R1) 3/8"-24, G8

2шт.

6

1810568C1

PLATE

PLATE - oil cooler, used with cooler 1810171C2, item 1A

1шт.

1810502C91

HEAD ASSY.

SPACER - use with plate 1810568C1

1шт.

7

239-5112

O-RING,Rect, .5" ID x .688" OD, Cl 5

O-RING, , Used with cooler 1810171C2, item 1A Rect, .5" ID x .688" OD, Cl 5

1шт.

8

238-5124

O-RING,0.103" Thk x 1.237" ID, -124, Cl 5, 75 Duro

O-RING, , Used with cooler 1810171C2, item 1A -124, 70 Duro, 1.237" ID x .103" Thk

1шт.

9

310-1528

BOLT - hex, 5/16 NC x 1-3/4 inch

3шт.

10

396-21034

WASHER,8.74mm ID x 17.48mm OD x 2.26mm Thk

WASHER - flat, 11/32 x 11/16 x 3/32 inch, hardened (Replaces washer 27326R1)

3шт.

735260C92

REMAN-OIL COOLER

COOLER - oil, remanufactured, component parts do not apply to the remanufactured assembly

1шт.

1938223C1

CORE-OIL COOLER

Return Number - use this part number to return cooler core for credit when using a remanufactured assembly

1шт.

1815568C91

COOLER, OIL

KIT - oil cooler, new, used with all 400 series engines with serial numbers prior to 517251, Includes: Ref. 1A, 2, 3, 6, 7, 8, 9 & 10

1шт.
