Запчасти Case IH DTI-466B (9E-140) - FUEL FILTER AND CONNECTIONS

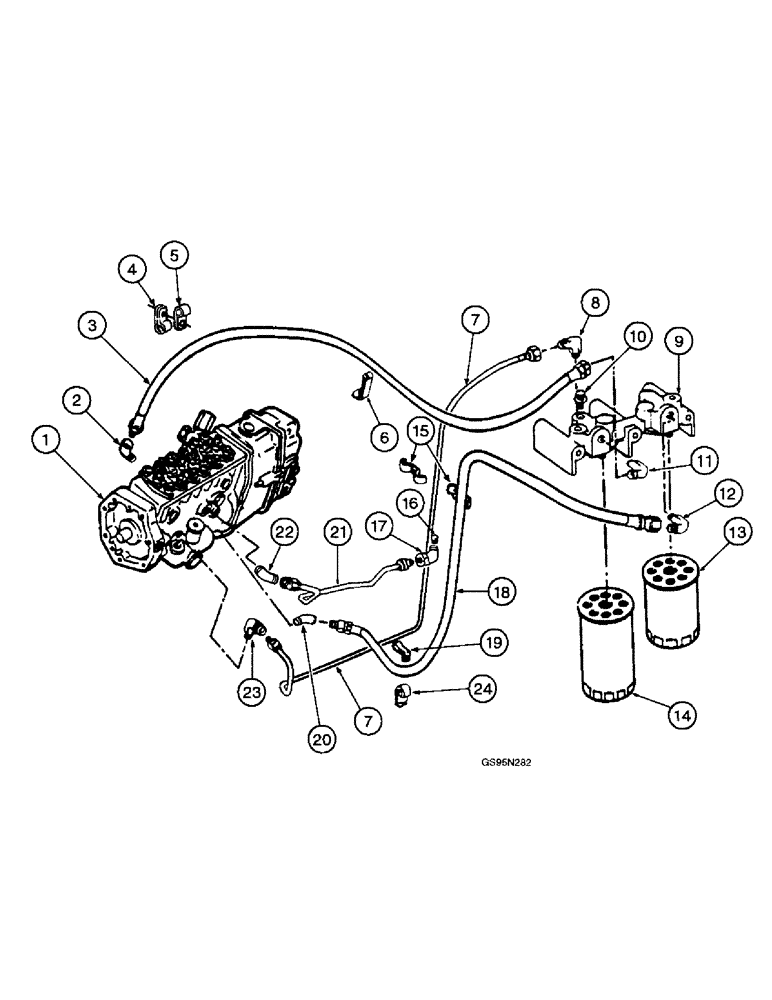

Схема запчастей Case IH DTI-466B - (9E-140) - FUEL FILTER AND CONNECTIONS
3
23
13
11
7
1
20
2
4
15
21
9
10
12
22
6
7
17
19
18
24
8
5
14
16

Артикул

Название

Примечание

Количество

1

REF

INSTRUCTION

PUMP ASSEMBLY - fuel injection, parts list Figures 9E-68 or 9E-78

1шт.

2

217-21

ELBOW,90 Degree, 1/4"-18 NPTF, Fem x 1/4"-18 NPTF Male

- fuel inlet, 90 degree x 1/4 inch PT x female PT

1шт.

3

688190C1

HOSE

- final filter to injection pump

1шт.

4

691144C1

CLAMP

- final filter to pump, used with 1680 combines

1шт.

397483R1

GROMMET

- hose (Replaces grommet 536410R1)

1шт.

326-616

BOLT,Hex, 3/8" - 16 x 1", Gr 8

(Replaces bolt 24840R1) Hex, 3/8"-16 x 1", G8, Full Thd

1шт.

396-21041

WASHER,10.31mm ID x 20.63mm OD x 2.26mm Thk

- flat, 13/32 x 13/16 x 3/32 inch, hardened

2шт.

329-106

NUT,3/8"-16, G8

(Replaces nut 25522R1) 3/8"-16, G8

1шт.

5

515-23190

CLAMP,3/4", Insul, 3/8" Bolt

P-type, Used with 1680 combines (Replaces clamp 299566C1) 3/4", Insul, 3/8" Bolt

1шт.

6

1806044C1

CLAMP

- final filter to pump hose, used with 1470 and 1480 combines

1шт.

7

690522C91

TUBE

ASSEMBLY - primary pump to final filter, no longer available, Includes: Ref. 7A & 7B

1шт.

7a

222-104

SLEEVE,3/8" Tube

- tube, 3/8 inch OD (Replaces sleeve 265204R1), not illustrated

2шт.

7b

222-114

NUT,5/8"-24

NUT - hex, 3/8 inch OD x 5/8 inch (Replaces nut 265205R1), not illustrated

2шт.

8

222-4047

ELBOW

- final filter inlet, at filter header, 90 degree, compression, 3/8 tube OD x 1/4 inch PT (Replaces elbow 606845C1)

1шт.

9

1809590C91

HEAD ASSY.

HEADER - filter

1шт.

326-668

BOLT,Hex, 3/8" - 16 x 4-1/4", Gr 8

(Replaces bolt 25784R1) Hex, 3/8"-16 x 4 1/4", G8

3шт.

396-21041

WASHER,10.31mm ID x 20.63mm OD x 2.26mm Thk

- flat, 13/32 x 13/16 x 3/32 inch, hardened

3шт.

10

39677DA

VALVE

- filter bleed

1шт.

11

222-768

ELBOW,90 Degree, 5/8"-18, 45 Degree Fl x 1/4" NPT

- final filter outlet, at filter header, 90 degree x 5/8-18 45 degree flare x 1/4 inch PT (Replaces elbow 118755)

1шт.

12

55541R1

X

ELBOW - primary filter outlet, 90 degree, no longer used, order elbow 222-774 and nipple 217-6 below

1шт.

222-774

90 ELBOW,90 Degree, 3/4"-16, 45 Degree Fl x 3/8" NPT

- 90 degree, 3/4-16 45 degree flare x 1/2 inch PT

1шт.

217-6

ADAPTER,3/8"-18 Fem NPTF x 1/4"-18 NPTF Male

NIPPLE - 1/4 PT x 1/8 inch PT

1шт.

13

A184773

SEPARATOR

FILTER - primary fuel (Replaces filter 625627C1)

1шт.

14

A184774

FUEL FILTER

FILTER - final fuel (Replaces filter 672603C2)

1шт.

15

684899C1

CLAMP

- primary filter to pump hose and pump to final filter tube

2шт.

684548C1

NUT

- spring, no longer available

1шт.

329-106

NUT,3/8"-16, G8

1шт.

673171C1

RUBBER BUSHING

GROMMET - tube

1шт.

1806408C1

CUSHION

- hose

1шт.

16

217-430

PLUG,Hex Soc, 1/8" - 27 NPTF

- pipe, 1/8 inch PT (Replaces plug 444612)

1шт.

17

686839C1

ELBOW

- lube oil outlet, at crankcase, 90 degree

1шт.

18

1802982C1

HOSE

- primary filter to injection pump supply pump

1шт.

18

1810722C91

TUBE,0.375" OD

- inlet, used with 1680 combines

1шт.

19

1802981C1

CLAMP

- pump to final filter tube

1шт.

326-612

BOLT,Hex, 3/8" - 16 x 3/4", Gr 8

(Replaces bolt 24839R1) Hex, 3/8"-16 x 3/4", G8, Full Thd

1шт.

396-21041

WASHER,10.31mm ID x 20.63mm OD x 2.26mm Thk

- flat, 13/32 x 13/16 x 3/32 inch, hardened

1шт.

20

217-16

ELBOW,45 Degree, 1/4"-18 NPTF, Fem x 1/4"-18 NPTF Male

- street, 45 degree, 1/4 inch PT x female PT, used with 1680 combines (Replaces elbow 444054)

1шт.

21

1802773C91

TUBE,0.25" OD

ASSEMBLY - injection pump lube oil, Includes: Ref. 21A & 21B

1шт.

21a

685158C1

SLEEVE

- tube, 1/4 inch, not illustrated

2шт.

21b

87017024

TUBE NUT,1/2"-24

NUT - hex, 1/4 tube OD x 1/2-24 inch (Replaces nut 915499R1), not illustrated

2шт.

22

319615R1

ELBOW

- injection pump lube oil inlet tube

1шт.

23

222-4047

ELBOW

- fuel pump outlet, 90 degree, compression, 3/8 tube OD x 1/4 inch PT (Replaces elbow 606845C1)

1шт.

24

515-23190

CLAMP,3/4", Insul, 3/8" Bolt

P-type (Replaces clamp 299566C1) 3/4", Insul, 3/8" Bolt

1шт.

Выбрано товаров: 43
