Запчасти Case IH DTI-466B (9E-132) - FUEL INJECTION PUMP AND CONNECTIONS

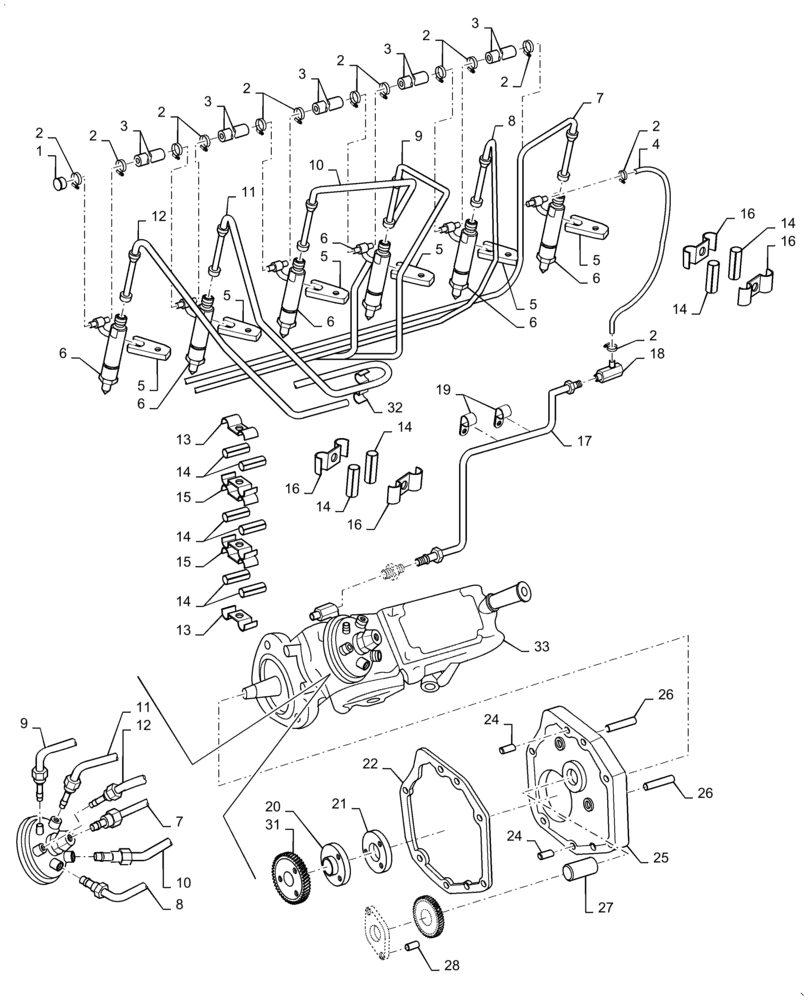

Схема запчастей Case IH DTI-466B - (9E-132) - FUEL INJECTION PUMP AND CONNECTIONS
18
14
14
11
9
4
25
5
2
5
14
2
19
26
16
2
3
32
10
15
2
3
2
16
22
6
6
6
7
2
8
6
21
8
16
5
28
15
14
6
16
6
14
10
12
11
5
5
3
5
14
2
13
33
24
2
26
17
13
14
12
9
27
20
3
2
1
24
31
3
7

Артикул

Название

Примечание

Количество

1

1802452C1

CAP

- fuel return injector no. 1

1шт.

2

A180159

CLAMP,10.29mm - 12.32mm

CLIP - leakoff hose (Replaces clip 1802453C1)

13шт.

3

REF

INSTRUCTION

HOSE - fuel return injector to injector, 5 inch (127 mm) long, cut from bulk hose 680246CX below

5шт.

4

REF

INSTRUCTION

HOSE - injector no. 6 to leakoff tube, 10 inch (254 mm) long, cut from bulk hose 680246CX below

1шт.

5

675479C2

CLAMP

CRAB - injector nozzle

6шт.

691105C1

BOLT

- injector crab

6шт.

6

REF

INSTRUCTION

NOZZLE ASSEMBLY - fuel injection, parts list Figure 9E-106

6шт.

1342831C1

SEAL

GROMMET - injector dust seal (Replaces grommet 682810C1)

6шт.

7

688856C1

PIPE,0.072" ID, 0.25" OD, 35.5" Length

- injector, cylinder no. 6

1шт.

8

688855C1

PIPE,0.072" ID, 0.25" OD, 35.5" Length

- injector, cylinder no. 5

1шт.

9

688854C1

PIPE,0.072" ID, 0.25" OD, 35.5" Length

- injector, cylinder no. 4

1шт.

10

688853C1

PIPE,0.072" ID, 0.25" OD, 35.5" Length

- injector, cylinder no. 3

1шт.

11

688852C1

PIPE,0.072" ID, 0.25" OD, 35.5" Length

- injector, cylinder no. 2

1шт.

12

688851C1

PIPE,0.072" ID, 0.25" OD, 35.5" Length

- injector, cylinder no. 1

1шт.

13

673527C1

CLAMP

- fuel line tube

2шт.

326-412

BOLT,Hex, 1/4" - 20 x 3/4", Gr 8

(Replaces bolt 25222R1) Hex, 1/4"-20 x 3/4", G8, Full Thd

1шт.

231-1444

NUT,1/4"-20, GB

NUT, LOCK, (Replaces nut 24468R1) 1/4"-20, GB

1шт.

14

258079C1

GROMMET

- injection line

14шт.

15

673577C1

CLAMP

- duplex tube

3шт.

16

673527C1

CLAMP

- injection pipe

8шт.

684548C1

NUT

- spring, no longer available

4шт.

340-12512

SCREW,Cross Pan Hd, 1/4"-20 x 3/4"

- machine, pan Phillips, 1/4 NC x 3/4 inch (Replaces screw 113957)

1шт.

1276056C1

SELF-TAP SCREW,Cross Pan Hd, 1/4" x 1 1/4"

SCREW - machine, round headless, 1/4 NC x 1-1/4 inch (Replaces screw 113961)

3шт.

17

680316C91

TUBE,0.375" OD, 28.88" Length

ASSEMBLY - fuel return lower, Includes: Ref. 17A & 17B

1шт.

17a

222-104

SLEEVE,3/8" Tube

- tube, 3/8 inch OD (Replaces sleeve 265204R1), not illustrated

2шт.

17b

222-114

NUT,5/8"-24

NUT - hex, 3/8 inch OD x 5/8 inch (Replaces nut 265205R1), not illustrated

2шт.

18

689382C1

TEE

- fuel leakoff, used with 1822 cotton pickers

1шт.

18

673196C1

TEE

- fuel leakoff, used with 1640 and 1680 combines

1шт.

19

673193C1

CLIP

- fuel return tube

2шт.

326-612

BOLT,Hex, 3/8" - 16 x 3/4", Gr 8

(Replaces bolt 24839R1) Hex, 3/8"-16 x 3/4", G8, Full Thd

2шт.

396-21041

WASHER,10.31mm ID x 20.63mm OD x 2.26mm Thk

- flat, 13/32 x 13/16 x 3/32 inch, hardened (Replaces washer 25896R1)

2шт.

20

676925C1

HUB

- injection pump gear

1шт.

21

676926C1

PLATE

- gear retainer

1шт.

27366R1

BOLT,Hex, 5/16" - 24 x 1 1/2", Gr 8

SCREW - hex, 5/16 NC x 1-1/2 inch (Replaces screw 21512R1)

3шт.

22

675609C1

GASKET

- injection pump mounting adapter

1шт.

689146C91

ADAPTER

ASSEMBLY - injection pump mounting, Includes: Ref. 24 - 26A

1шт.

24

680481C1

PIN

- dowel

2шт.

25

NSS

NOT SOLD SEPARAT

ADAPTER - injection pump, order adapter assembly 689146C91

1шт.

26

256333R1

STUD

- adapter

2шт.

26a

217-469

DRAIN PLUG,Sq Soc, 3/4" - 14 NPTF

PLUG - adapter (Replaces plug 9409949), not illustrated

1шт.

326-540

BOLT,Hex, 5/16" - 18 x 2-1/2", Gr 8

(Replaces bolt 25235R1) Hex, 5/16"-18 x 2 1/2", G8

2шт.

396-21034

WASHER,8.74mm ID x 17.48mm OD x 2.26mm Thk

- flat, 11/32 x 11/16 x 3/32 inch, hardened (Replaces washer 25533R1)

2шт.

27

19968R1

DOWEL,3/4" x 1 3/4"

PIN - dowel, 3/4 x 1-3/4 inch

1шт.

28

676936C1

SPACER

- injection pump adapter

2шт.

31

676922C2

GEAR

- injection pump, 33 tooth

1шт.

32

687426C1

ADAPTER,1/4" NPT x 5/8" - 24 NPT

FITTING - fuel return orifice

1шт.

33

REF

INSTRUCTION

PUMP ASSEMBLY - fuel injection, parts list Figures 9E-92 and 9E-94

1шт.

329-116

NUT,3/8"-24, G8

(Replaces nut 25523R1) 3/8"-24, G8

2шт.

396-31041

WASHER,10.31mm ID x 20.63mm OD x 3.4mm Thk

(Replaces washer 25544R1) 13/32" x 13/16" x .134", HDN

2шт.

326-532

BOLT,Hex, 5/16" - 18 x 2", Gr 8

(Replaces bolt 25232R1) Hex, 5/16"-18 x 2", G8

1шт.

396-21034

WASHER,8.74mm ID x 17.48mm OD x 2.26mm Thk

- flat, 11/32 x 11/16 x 3/32 inch, hardened (Replaces washer 25543R1)

1шт.

680246CX

LARGE HOSE

HOSE - bulk, 10 foot (3048 mm) roll, sold by the foot

1шт.

Выбрано товаров: 52
