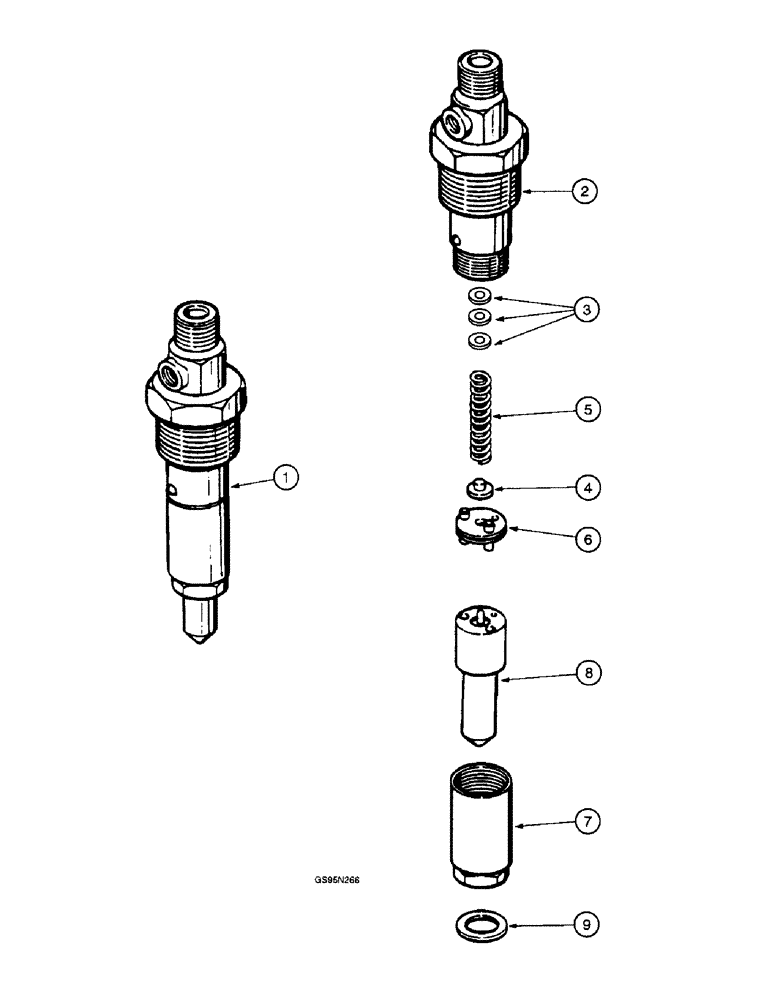

Запчасти Case IH DTI-466B (9E-108) - BOSCH INJECTION NOZZLE, DTI-466C ENGINES

1

1806169C91

HOLDER

NOZZLE ASSEMBLY - injection, German Bosch, 3075 - 3225 p.s.i., Includes: Ref. 2 - 9

6шт.

1

749945C91

REMAN-FUEL INJECTOR

Reman for New PN 1806169C91

6шт.

1

1934157C1

CORE-FUEL INJECTOR

Return Number

6шт.

1

1810397C1

NOZZLE INJECTION

NOZZLE ASSEMBLY - injection, German Bosch, 3600 - 3700 p.s.i., Includes: Ref. 2 - 9

6шт.

2

1810832C91

HOLDER

BODY ASSEMBLY - injector, Includes: Ref. 3

1шт.

3

1806233C1

SHIM,1.00mm Thk

Nozzle (5 in kit) 1.00mm Thk

1шт.

3

1806234C1

SHIM,1.04mm Thk

Nozzle (5 in kit) 1.04mm Thk

1шт.

3

1806235C1

SHIM,1.08mm Thk

Nozzle (5 in kit) 1.08mm Thk

1шт.

3

1806236C1

SHIM,1.10mm Thk

Nozzle (5 in kit) 1.10mm Thk

1шт.

3

1806237C1

SHIM,1.14mm Thk

Nozzle (5 in kit) 1.14mm Thk

1шт.

3

1806238C1

SHIM,1.18mm Thk

Nozzle (5 in kit) 1.18mm Thk

1шт.

3

1806239C1

SHIM,1.20mm Thk

Nozzle (5 in kit) 1.20mm Thk

1шт.

3

1806240C1

SHIM,1.24mm Thk

Nozzle (5 in kit) 1.24mm Thk

1шт.

3

1806241C1

SHIM,1.28mm Thk

Nozzle (5 in kit) 1.28mm Thk

1шт.

3

1806242C1

SHIM,1.30mm Thk

Nozzle (5 in kit) 1.30mm Thk

1шт.

3

1806243C1

SHIM,1.34mm Thk

Nozzle (5 in kit) 1.34mm Thk

1шт.

3

1806244C1

SHIM,1.38mm Thk

Nozzle (5 in kit) 1.38mm Thk

1шт.

3

1806245C1

SHIM,1.40mm Thk

Nozzle (5 in kit) 1.40mm Thk

1шт.

3

1806246C1

SHIM,1.44mm Thk

Nozzle, 5 in kit 1.44mm Thk

1шт.

3

1806247C1

SHIM,1.48mm Thk

Nozzle, 5 in kit 1.48mm Thk

1шт.

3

1806248C1

SHIM,1.50mm Thk

Nozzle, 5 in kit 1.50mm Thk

1шт.

3

1806249C1

SHIM,1.54mm Thk

Nozzle (5 in kit) 1.54mm Thk

1шт.

3

1806250C1

SHIM,1.58mm Thk

Nozzle, 5 in kit 1.58mm Thk

1шт.

3

1806251C1

SHIM,1.60mm Thk

Nozzle, 5 in kit 1.60mm Thk

1шт.

3

1806252C1

SHIM,1.64mm Thk

Nozzle, 5 in kit 1.64mm Thk

1шт.

3

1806253C1

SHIM,1.68mm Thk

Nozzle, 5 in kit 1.68mm Thk

1шт.

3

1806254C1

SHIM,1.70mm Thk

Nozzle, 5 in kit 1.70mm Thk

1шт.

3

1806255C1

SHIM,1.74mm Thk

Nozzle, 5 in kit 1.74mm Thk

1шт.

3

1806256C1

SHIM,1.78mm Thk

Nozzle, 5 in kit 1.78mm Thk

1шт.

3

1806257C1

SHIM,1.80mm Thk

Nozzle, 5 in kit 1.80mm Thk

1шт.

3

1806258C1

SHIM,1.84mm Thk

Nozzle, 5 in kit 1.84mm Thk

1шт.

3

1806259C1

SHIM,1.88mm Thk

Nozzle, 5 in kit 1.88mm Thk

1шт.

3

1806260C1

SHIM,1.90mm Thk

Nozzle, 5 in kit 1.90mm Thk

1шт.

3

1806261C1

SHIM,1.94mm Thk

Nozzle, 5 in kit 1.94mm Thk

1шт.

3

1806262C1

SHIM,1.98mm Thk

Nozzle, 5 in kit 1.98mm Thk

1шт.

4

J905153

SPINDLE

SEAT - nozzle pressure spring

1шт.

5

J905152

SPRING

- nozzle pressure

1шт.

6

1810833C1

VALVE STOP - nozzle

1шт.

7

A48201

NUT

- cap, nozzle end

1шт.

8

1810834C1

TIP - nozzle, injector (For Nozzle Assembly 1810397C1)

1шт.

8

1806170C1

NOZZLE INJECTION

TIP - nozzle, injector (For Nozzle Assembly 1806169C91)

1шт.

9

489256C1

GASKET

- nozzle

6шт.
